Freelance system
The AC800F controller can process and diagnose field data in a distributed manner via four fieldbus gateways. If required, the AC800F controller can also integrate multiple bus types to work simultaneously. Conventional controllers are not comparable in this respect. Due to its compact and robust design, the AC800F is suitable for installation either in the control room or directly in the field in a breakout box.
download
Economical and reliable
The AC800F offers users a new automation solution that integrates simple engineering ideas into an open, advanced system architecture:
* Fully redundant design
* Freedom of choice: PROFIBUS, FOUNDATION Fieldbus or HART, or a mix of applications within a single controller.
* simple and efficient engineering: FDT/DTM support
* All engineering, from design and commissioning to system maintenance and diagnostics, requires only one tool package (CBF); asset optimisation and batch handling
* System engineering covering fieldbus and device management configurations
* In-house integrated Web Server technology for remote diagnostics

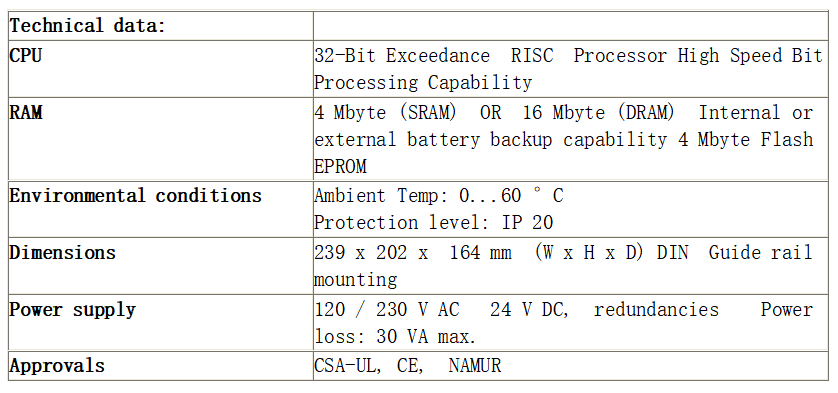

AC800F Field Controller Technical Parameters
AC800F Field Controller Features and Benefits
High Safety
To achieve the goal of safe operation and high plant equipment availability, the AC800F supports a full range of redundant operating modes.
This improves safety and avoids production downtime. Redundancy can be applied to:
* System bus (standard Ethernet solution)
* Controllers
* Input/output modules
* Fieldbus master communication modules
* Fieldbus
* Coupling connection devices
* HIS communication
High flexibility
Digital communications have transformed automation technology for the better, and today fieldbus technology is widely accepted as a means of transmitting
field device signals while overlaying many of the necessary device diagnostic data. This technology is driving the development of new application areas such
as asset optimisation.
The AC800F collects and processes signals and diagnostic data from up to four fieldbuses. If required, the AC800F can also support multiple bus types
simultaneously,which is unmatched by conventional controllers. In addition, the compact and modular design of the AC800F and the common electronic
components can be used for a wide range of applications, allowing the AC800F to be simply installed in the control room or used directly in the field.
* PROFIBUS
* Foundation Fieldbus
* MODBUS protocol
* Interbus
* IEC 870-5 telecontrol protocol
* CAN-Bus for connection of input/output modules
* HART protocol via Profibus remote I/O.

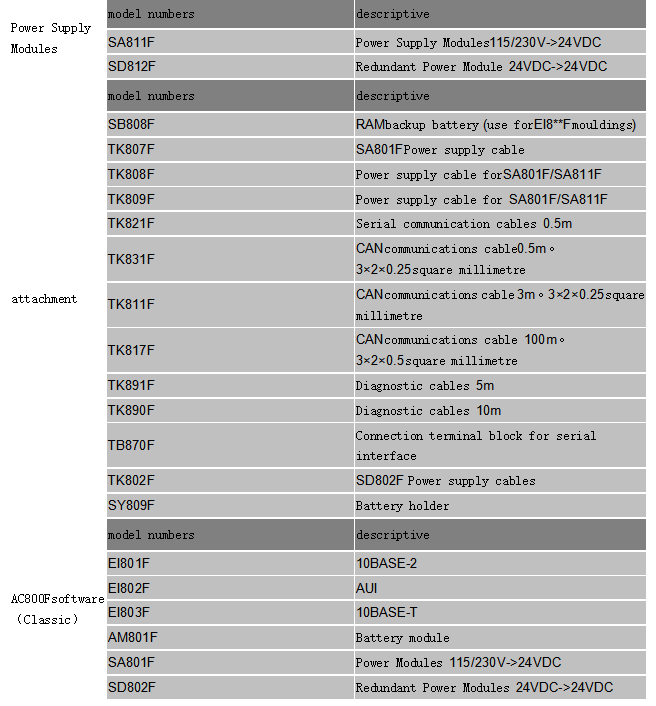

Power supply modules
SA 801F : input voltages from 115 … 230 V AC
SD 802F : redundant DC voltage 24 V DC
ABB SA801F, 115...230VAC Power Supply Module Features
Wide input power range 115-230VAC with EMC filtering
3.3VDC +/-3%5A, 5.0VDC +/-3%5A, total output power 26.5W
Input and output voltage monitoring, provide power failure signal
Over-current detection and short-circuit protection
Output hold for 20ms in case of power failure
Diagnostic interface (with EMC filter)
EEPROM for diagnostic data
AC800FCPU motherboard status detection and operating elements
ABB SA811F, 115...230VAC Power Supply Module Features
Wide input power range 115-230VAC with EMC filtering
3,3VDC +/-3% 6,5A, 5,0VDC +/-3% 5,5A, total output power 35W
Suitable for PM803F CPU motherboards
Input and output voltage monitoring to provide power failure signals
Over-current detection and short-circuit protection
Output hold for 20ms in case of power failure
Diagnostic interface (with EMC filter)
EEPROM for diagnostic data
AC800FCPU motherboard status detection and operating elements
ABB SD802F, 24VDC Power Module Features
Dual redundant 24VDC +/-25% power inputs with EMC filtering
3.3VDC +/-3% 5A, 5.0VDC +/-3% 5A, total output power 26.5W
Input and output voltage monitoring, providing power failure signals
Over-current detection and short-circuit protection
Output hold for 20ms in case of power failure
Automatic switching of input power supply
Diagnostic interface (with EMC filter)
EEPROM for diagnostic data
AC800F CPU motherboard status detection and operating elements
ABB SD812F, 24VDC Power Supply Module Features
Dual redundant 24VDC +/-25% power inputs with EMC filtering
3.3VDC +/-3% 6.5A, 5.0VDC +/-3% 5.5A, total output power 35W
Input and output voltage monitoring, providing power failure signals
Over-current detection and short-circuit protection
Output hold for 20ms in case of power failure
Automatic switching of input power supply
Diagnostic interface (with EMC filter)
EEPROM for diagnostic data
AC800FCPU motherboard status detection and operating elements

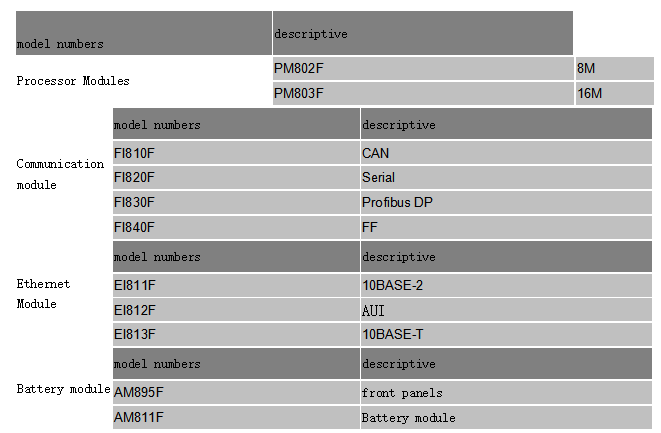

Ethernet modules
EI 801F : 10Base2 module (Cheapernet) for ThinCoax type coax. cable
EI 802F : AUI module for connecting transceivers for 10Base5, 10Base2, 10BaseT,
10BaseFL or star coupler units
EI 803F : 10/100BaseTP module for Shielded Twisted Pair cables
• Fieldbus modules
FI 830F : Profibus DP module for direct operation of Profibus field devices
FI 820F : Serial module, 2 channels, protocols available : MODBUS, Sartorius scale protocol, continuously being expanded
FI 810F : CAN module, 3 channels, protocols available : DigiNet P
AM 801F : Battery module for redundant battery back-up
AC800F controller is a controller with fieldbus function launched by ABB in 2000, which has rich fieldbus interfaces and can realise controller redundancy,
communication redundancy and power redundancy. AC800M has as many as 9 kinds of controllers to choose from, and AC800F is different from AC800M is
only equipped with configuration software CCB, there is no own man-machine monitoring software, you can choose a third-party software as their own
man-machine monitoring software, so it is more suitable for the engineering company to use. Similarly, AC800M can also realise controller redundancy,
communication redundancy and power redundancy.
AC800F Hardware
ABB Control Systems
AC800F Series:
pm802f pm803f sa801f sa811f sd802f sd812f tk807f tk808f tk809f tk802f tk821f tk831f tk811f tk817f tk890f tk891f tb870f ei803f ei811f ei812f ei813f fi810f fi820f
fi830f fi840f am811f am895f sb808f sy809f
