ABB Sensors - Pillow Press PFCL 201C/CEThe vertical pillow press head is ideal for rolling mills and treatment lines (annealing, pickling, galvanising lines, etc.). The press head is made from a single piece
of stainless steel, has a high coefficient of elasticity and is extremely robust. It is able to be mounted under the bearing housing. Measurement of the vertical component
force is possible in both directions.
The indenter is available in three versions:
- PFCL 201C, fitted with Cannon connectors for cable connection, very suitable for handling lines.
- PFCL 201CD, fitted with 20 metres of PTFE fixed connection cable, a solution for handling line applications.
- PFCL 201CE, for mill environments, fitted with a fixed connection cable with sheath, ideal for mill applications.
The load cell is machined from a single piece of stainless steel. The sensors are machined directlyin the piece of steel and are positioned so that they are
sensitive to force in the direction of measurement and insensitive in other directions.
The load cell is mounted on a base with four screws, and the bearing housing is mounted on top of the load cell with four screws.Every load cell comes
calibrated and temperature compensated.

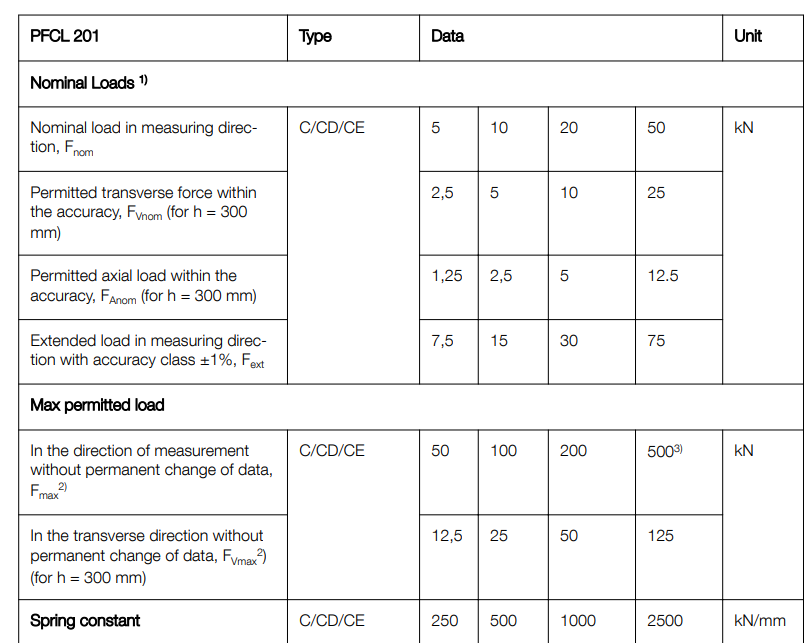

The load cells PFCL 201C/201CE/201CD are available in four measurement ranges, all variants have the same external dimensions.

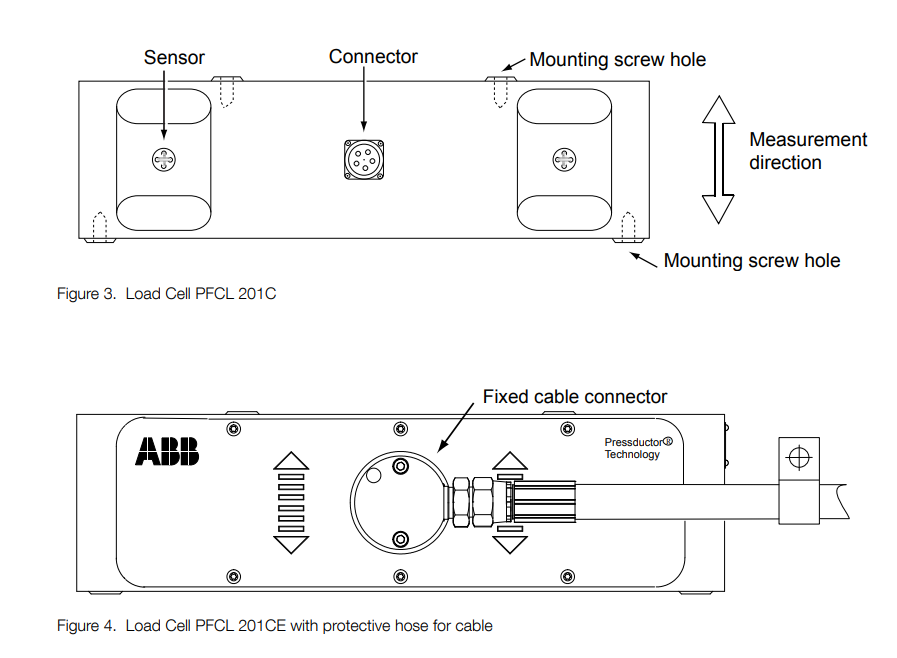

The load cell PFCL 201C is equipped with a connector for the pluggable connection cable.
The load cell PFCL 201CE has a fiWed connection cable with protective hose.

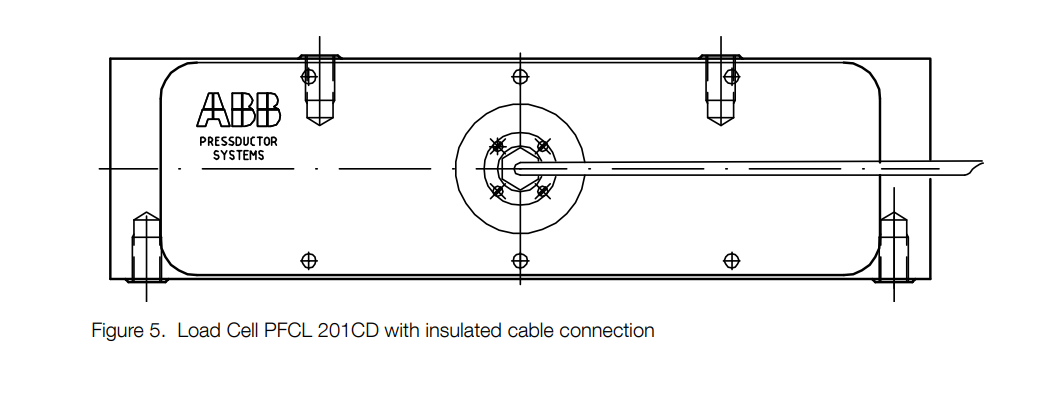

The load cell PFCL 201CD is provided with an acid-proof cable gland with a fiWed PTFE- insulated connection cable.
ABB PRESSURE HEAD,ABB TENSION SENSOR,ABB TENSOR METER,ABB PRESSURE MEASURING ELEMENT,ABB STRENGTH MEASUREMENT,ABB TENSION MEASUREMENT SYSTEM,
ABB TENSOR MEASUREMENT INSTRUMENTS,ABB LOAD CELL, with stable performance and reliable quality, are widely used in papermaking, metallurgy and other occasions that
require high-precision tension control. Aizawa Industrial can accurately select the model according to the different measurement ranges, mounting forms, and application occasions.
1、Model：PFEA111
Description：Conventional control unit, capable of connecting 2 indenters, IP20 and IP65 protection level according to different application environments,
PLC interface signal is 0--10V DC, various calibration and range parameters can be set on site.
2、Model：PFCL201C
Specifications：Pillow block tensiometer vertical pressure measuring element, using cylindrical plug connection; force range: 5~50KN.
3、Model No.: PFCL201CD/CE
Specifications：Pillow block type tensiometer vertical pressure measuring element, using cable sealing connector/fixed cable with protective hose connection,
measuring force range: 5~50KN.
4、Model：PFTL101A
Specifications：Pillow block type tensiometer horizontal pressure measuring element, cylindrical plug connection, measuring force range: 0.2~2KN.
5、Model：PFTL101AE
Specifications：Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, measuring force range: 0.2~2KN.
6、Model：PFTL101AER
Specifications：Acid-resistant pillow block tensiometer horizontal pressure element, fixed cable connection, force range: 0.2~2KN. Used for paper wet-end
tension measurement, protection class up to IP66/67.
7、Model：PFTL101B
Specifications：Pillow block tensiometer horizontal pressure element, cylindrical plug connection, force range: 2~20KN.
8、Model：PFTL101BE
Specifications：Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, measuring force range: 2~20KN.
9、Model No.：PFTL101BER
Specifications：Acid-resistant pillow block tensiometer horizontal pressure element, fixed cable connection, force range: 2~20KN. For paper wet end tension
measurement, protection class up to IP66/67.
10、Model：PFTL201C
Specifications：Pillow block tensiometer horizontal pressure element, cylindrical plug connection, force range: 10~50KN.
11、Model：PFCL301E
Specifications：Mini-type paper web tension vertical measuring element, measuring range: 0.2~1KN.
12、Model：PFTL301E
Description: Mini web tension measuring device, pressure range: 0.1~1KN.
13、Model：PFRL101D
Description：Radial pressure measuring element, rated load 5.0KN.
14、Model：PFRL101C
Description: radial pressure element, rated load 0.5~2.0KN.
15、Model：PFRL101B
Description: Radial pressure measuring element, rated load 1.0KN.
16、Model：PFRL101A
Description: Radial pressure measuring element, rated load 0.5KN.
17、Model：PFEA113
Description：Tension controller with four measuring elements, Profibus-DP fieldbus communication, six configurable analogue output ports.
18、Model：PFEA112
Description：Profibus-DP fieldbus communication function is added on the basis of PFEA 111.
19、Model：PFEA111
Specifications：Tension controller, with two pressure measuring elements, compact structure, rail mounting.
20、Model：PFTL201CE
Specifications：Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, force measuring range: 10~50KN.
21、Model：PFTL201D
Specifications：Pillow block type tensiometer horizontal pressure measuring element, cylindrical plug connection, measuring force range: 50~100KN.
22、Model：PFTL201DE
Specifications：Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, measuring force range: 50~100KN.
23、Model No.：PFVL141V
Specifications：Rectangular measuring element, force range: 0.63~56MN; width range: 70~610mm; length range: 120~1320mm height: 74mm.
24、Model：PFVL141C
Specifications：Circular Pressure Measuring Element PFVL 141C,Force range:1.6~60MN;Diameter range:210~890mm;Height:74mm.
25Model：PFVL141R
Description：PFVL 141R,Ring type pressure measuring element,Force range:2~28MN;O.D. range:240~895mm;I.D. range:100~595mmHeight:74mm
26, Model: PXAH401
DESCRIPTION: Millmate OperatUnit 400, panel mounted, can communicate with the control unit network. Dimensions: 160 × 235 × ?60 mm, front protection IP65, other
directions IP20, weight: 1.3 kg.
Model：PFVA401
Description: Rolling force controller, can provide excitation to the pressure measuring element, with analogue input/output, digital input/output, Ethernet interface,
RS232/485 interface, optional high-speed fieldbus communication interface.
Model：PFBL141B/C
Description：Vertical force test unit, divided into single roll / double roll, fixed / rotating shaft end of different types, measuring range 4 - 400 kN, of which, the PFBL 141C external
dimensions can be customised according to user requirements.
Model：PFEA101
Specifications：Closed loop control of constant tension during unwinding and winding, connectable with pressure measuring elements and torque output devices such as brakes,
clutches and motors.
