Fault tolerant control system
The TSxPlus uses a full triplet design (2oo3D) with a 3-2-1-0 degrade mode. This architecture and degradation pattern can ensure high availability while ensuring security during system application.
l Information security certification
TSxPlus products are certified for functional safety as well as European Information Security and US information security standards. It can meet the requirements of users for functional safety and information security at the same time, and provides the possibility for users to build a plant-level in-depth defense system:
- The external communication interface has been fully and comprehensively tested for robustness, and has passed the Common Weakness Enumeration (CWE) vulnerability library test;
- Adopt strict authentication, security design and whitelisting, and use control measures to avoid unauthorized malicious access;
- Internal use of secure communication to ensure that the security control function will not be tampered with and damaged by external attacks;
- Built-in firewall design fundamentally avoids the impact of information security attacks on security control functions and ensures the availability of continuous and stable system operation And reliability.
Faster system response time
The minimum operation cycle of the main controller supports 5ms configuration, and the minimum response time of the control loop can be less than 15ms. This faster system response time capability provides a better platform resource for control loops with demanding response times.
Independent overspeed protection module: operates independently of the main processing module, meets API670 requirements and has a response time of <12ms.
l Integrated HART instrument management solution
The analog input (AI) in the hardware platform supports the analysis of HART protocol, and the on-site HART instrument can be managed directly through the own AMS software. The user no longer needs the third-party HART protocol bypass, and the parsing component introduces the HART signal into the AMS software of the host computer through an independent path.
l Flexible hardware expansion topology

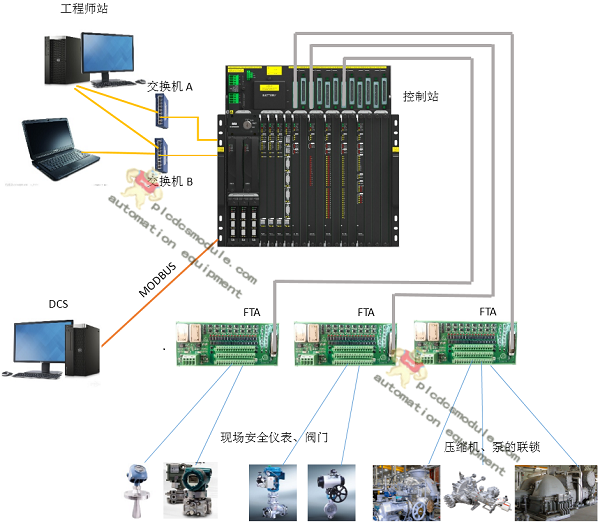

The bus interface module consists of three optical fiber interfaces, and the supplier or system integrator can choose to use the star topology to extend the remote rack or the bus topology according to the needs of the actual project. Due to the difference of the project, the relative distribution of the remote rack and the host rack is different, and the flexible topology can help users save cabling costs as much as possible.

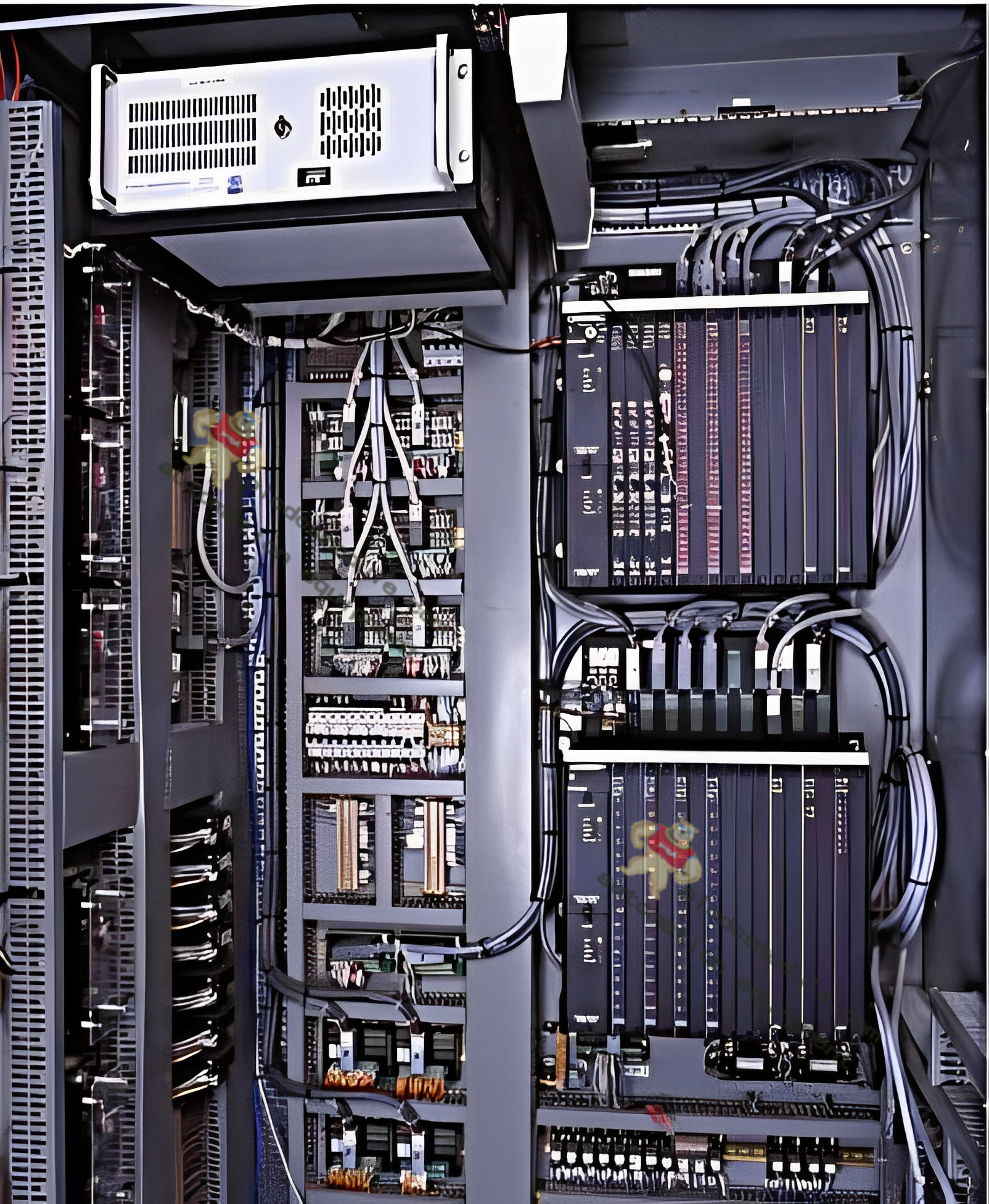

As the TSxPlus rack is a standard 19-inch rack, it can accommodate both 600mm and 800mm wide cabinets. Therefore, it can flexibly meet users' requirements for different cabinet sizes based on the actual application space.
Fast and slow tasks are realized at the same time
Fast tasks and slow tasks can be implemented in the same system. For example, 20ms mission cycle unit control and 200ms mission cycle ESD can be implemented in the same TSxPlus system.
Easy monitoring and maintenance
The power modules in the rack can monitor the input power quality in real time, and the monitoring results can be displayed on the upper PC. All modules can be replaced and maintained online.
TSxPlus products are used in process industry safety and critical control areas as follows:
◎ ITCC integrated turbine compressor control system
◎ DEH steam turbine digital electro-hydraulic control system
◎ HIPPS high integrity pressure protection system
◎ BMS burner management system
◎ SIS Safety instrumentation system
◎ ESD emergency shutdown system
◎ ETS emergency blocking system
◎ GDS Combustible gas and toxic gas detection system
◎ FGS Fire & Gas detection system

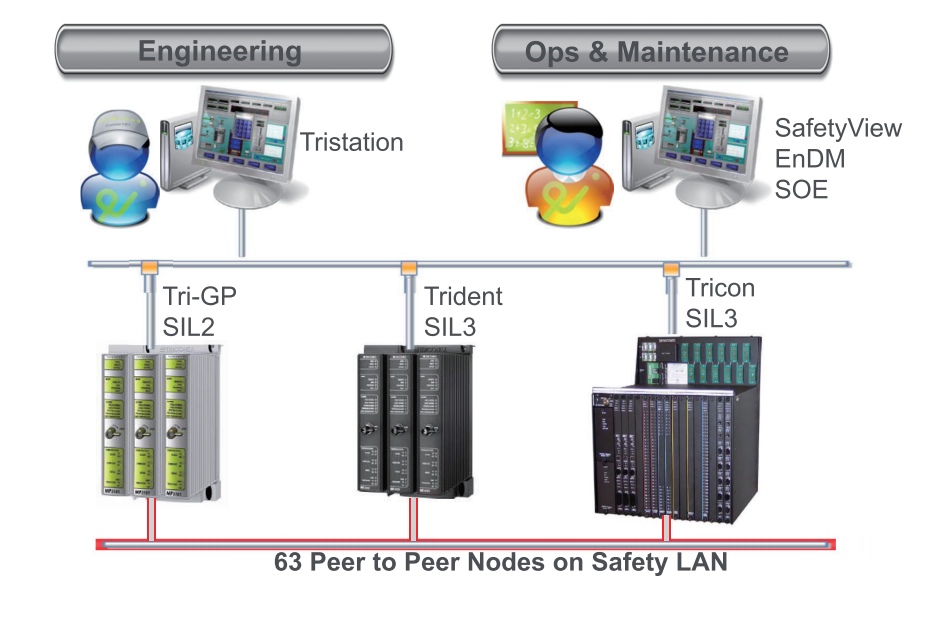

Product composition
TSxPlus system consists of hardware platform and software platform.
The hardware platform of TSxPlus system includes rack, power supply, main processor module, communication module, bus interface module, input/output module, dedicated module and matching terminal board.
◎ Standard 19-inch rack
◎ Rack power supply supports redundant configuration
◎ Main processor module supports tripling configuration
◎ I/O module supports tripling configuration
◎ Communication module supports redundant configuration
◎ The circuit board adopts the coating process to meet the G3 anti-corrosion standard
◎ Single control station supports maximum 1+14 configuration
◎ Can support up to 3776 physical point signals
◎ All cards support online replacement
◎ Operating temperature -10℃ ~60 ℃ (rack power supply -20℃ ~75 ℃)
Benefits
• The highest levels of protection for people, production assets and profits
• Continuous safe operation and maximum plant availability
• A lifetime of performance
• Lower operational risk
• Maximum value of ownership
The conventional models are as follows:
Analog 0-10V module Triconex 3701
Analog quantity 0-5 / 0-10V DC TRiconex3703E, 3703EC
Analog 0-5V DC module TRiconex3700,3700A,3700AC
Analog DC module TRiconex3706A
Analog DC module TRiconex3704E
Analog module TRiconex3708E
Analog module TRiconex3721, 3821C
Analog module TRiconex3720, 3720C
Analog module TRiconex3805E, 3805H, 3805HC
Bpao module TRiconex3807
Digital input module TRiconex3501T
Digital input module TRiconex3504E
Digital input module TRiconex3503E, 3503EC
Digital input module TRiconex3564, 3564C
Digital input module TRiconex3505E, 3505EC
Digital input module TRiconex3502E
Digital output module TRiconex3601T
Digital output module TRiconex3623T
Digital output module TRiconex36643664C
Digital output module TRiconex3674
Digital output module TRiconex3604E
Digital output module TRiconex3607E
Digital output module TRiconex3614E, 3615E
Digital output module TRiconex3617E
Digital output module TRiconex3625, 3625A 3625C, 3625AC
MP module TRiconex3009
PI module TRiconex3511, 3511C
PT module TRiconex3515
Ro module TRiconex3636T, 3636TC
RXM module TRiconex4210
RXM module TRiconex4200, 4200C
RXM module TRiconex4211
RXM module TRiconex42014201C
UCM module TRiconex4351A, 4351B, 4351BC
TCM module TRiconex4352A, 4352B, 4352BC
UCM module TRiconex4353, 4353C
Power module TRiconex435, 44354C
Chassis module TRiconex4610
Power module TRiconex8300A, 7305A
Power module TRiconex8100, 81018102
Power module TRiconex8310, 8310C, 8311
Power module TRiconex8311C
Power module TRiconex8312, 8312C
Chassis module TRiconex8110, 8110ATEX
Chassis module TRiconex8110C
Chassis module TRiconex8111, 8000ATEX
Chassis module TRiconex8111C, 8112, 8112ATEX
Chassis module TRiconex8112C
Chasis module TRiconex8120E
Chassis module TRiconex8121
Hart module TRiconex2700H, 2870H
