GE Hydran 201Ti Mark IV Essential DGA monitoring for transformers

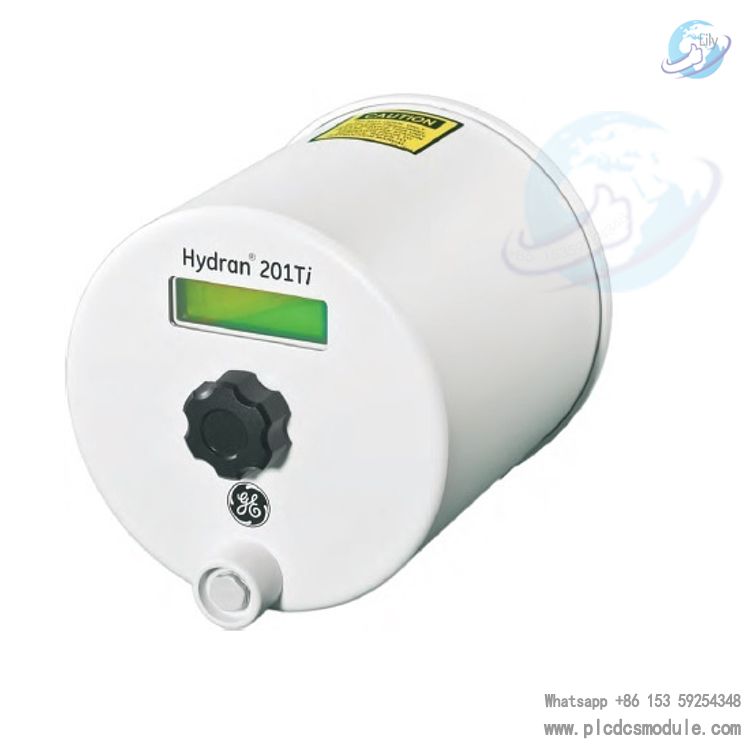

Hydran 201Ti Essential DGA Monitoring for Transformer Gas in Oil Sensor.The Hydran 201Ti is a small on-line early warning transmitter. It is permanently mounted on the transformer and will provide personnel with a single reading in ppm of a composite value of various fault gases to alert them to a potential issue.This value can be downloaded and alarms can be set at pre-determined levels to alert personnel and enable monitoring of the developing fault condition.

data sheet：

GE Hydran 201Ti Mark IV Essential DGA monitoring for transformers.pdf

On-Line Monitoring of Transformers.pdf

Hydran 201Ti Applications.Small and medium sized transformers.Lower risk and/or consequence of failure.Ideal for Transmission transformers.Much better than relying on manual oil sampling.Benefits:Real-time single composite fault-gas measurement system.Local and remote alarms set at pre defined levels or on rate of change.Remote visibility of the gas reading and trend via serial port communication.Easy to install on a single valve.No moving parts, no pumps and no extra piping required.No field calibration required.

Functional Features

Improved Sensor: Enhances the accuracy and reliability of monitoring.

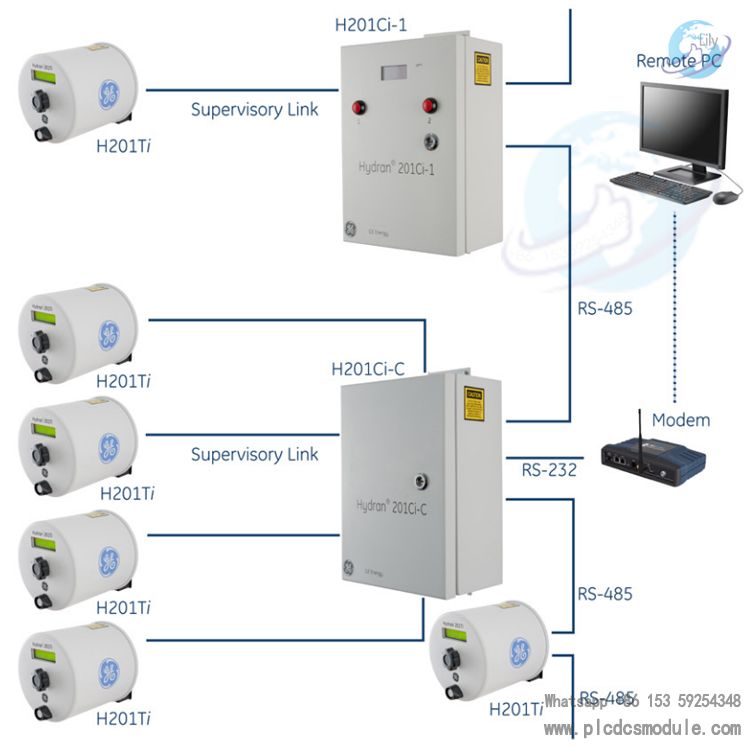

Communication Protocol: It uses the Modbus® protocol for communication via isolated RS - 485, facilitating data interaction with other devices.

Local Interface: Equipped with a local USB port, which replaces the RS - 232 port that is no longer available on most on - site laptops, making data transfer and device configuration convenient.

Software Compatibility: Compatible with GE's highly acclaimed Perception™ fleet software, allowing data to be downloaded, tracked, and analyzed, similar to other GE DGA monitoring devices.

Main Advantages

Continuous Measurement: Capable of continuously measuring the main hydrogen fault gas, enabling real - time monitoring of the transformer's operating status.

Local Display: Features a local LCD screen for directly viewing the real - time ppm values of dissolved gases.

Remote Communication: Can remotely transmit gas ppm values, which is convenient for operators to monitor and manage from a distance.

Mature Design: With a proven and continuously improved design, over 30,000 units have been sold, demonstrating high reliability and stability.
