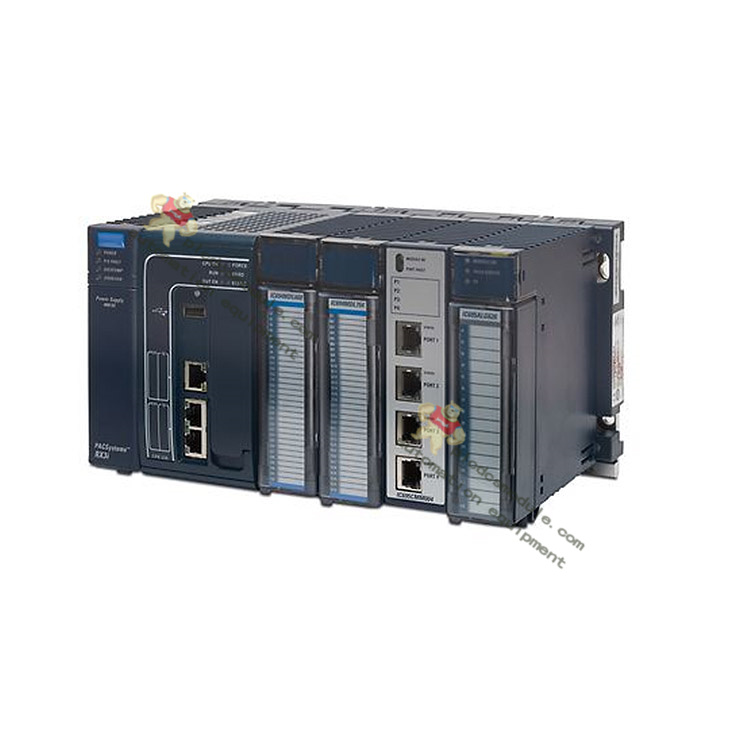

GE IC695CPE330 PACSystems RX3i Controller CPU Module

The PACSystems™ RX3i controller provides the foundation for industrial Internet connectivity. A powerful modular programmable automation controller with a focus on high availability, the RX3i features a single control engine and common programming environment that provides application portability across multiple hardware platforms.

Specifications

Part NumberIC695CPE330

Form FactorBackplane

User Memory64MB

I/O32k Bits Discrete I/O, 32k Words for Analog I/O

Energy PackAvailable

Redundancy SupportMedia Redundancy (MRP), PROFINET System Redundancy (PNSR)

Ethernet Port3x 10/100/1000 (2 switched ports)

Ethernet ProtocolsSRTP Client/Server, Modbus TCP/IP, OPC UA (Non-Transparent Server Redundancy Server), EGD, PROFINET, DNP3 Outstation, IEC-61850 Client, IEC-104 Server, HART passthrough

Serial ProtocolsASCII Serial, Modbus/RTU

Remote I/O Devices32 Simplex, 20 Redundant, 255 Simplex with PNC001

USB Interface1x USB-A 2.0

Memory Card1x CFast

Environmental0 to 60C

Agency ApprovalsUKCA, UL, cUL, RoHS, CCC, FCC, Reach, UL HazLoc C1D2, ATEX Zone 2

Marine CertificationsABS, BV, LR. DNV GL

Features

Programming tools such as tag-based programming, a library of reusable code and a test edit mode for improved online troubleshooting

User-friendly environment that can increase design flexibility and improve engineering efficiency and productivity

Plug-and-play addition of PROFINET-enabled devices makes it easy to securely connect machines, data and people

High-speed multicore processor for faster throughput without information bottlenecks

Support for high-density discrete I/O, universal analog (TC, RTD, Strain Gauge, Voltage and Current configurable per channel), isolated analog, high-density analog, high-speed counter, and motion modules
