Lithium battery energy storage cabinet（Energy）
Li-ion battery system mainly consists of battery, power conversion system (PCS), energy management system (EMS), battery management system (BMS) and other electrical equipment. The secondary BMS is designed with multiple monitoring of system status and hierarchical linkage. Relays, fuses, circuit breakers, BMS constitute a comprehensive protection system integrating electrical and functional safety.
System Components

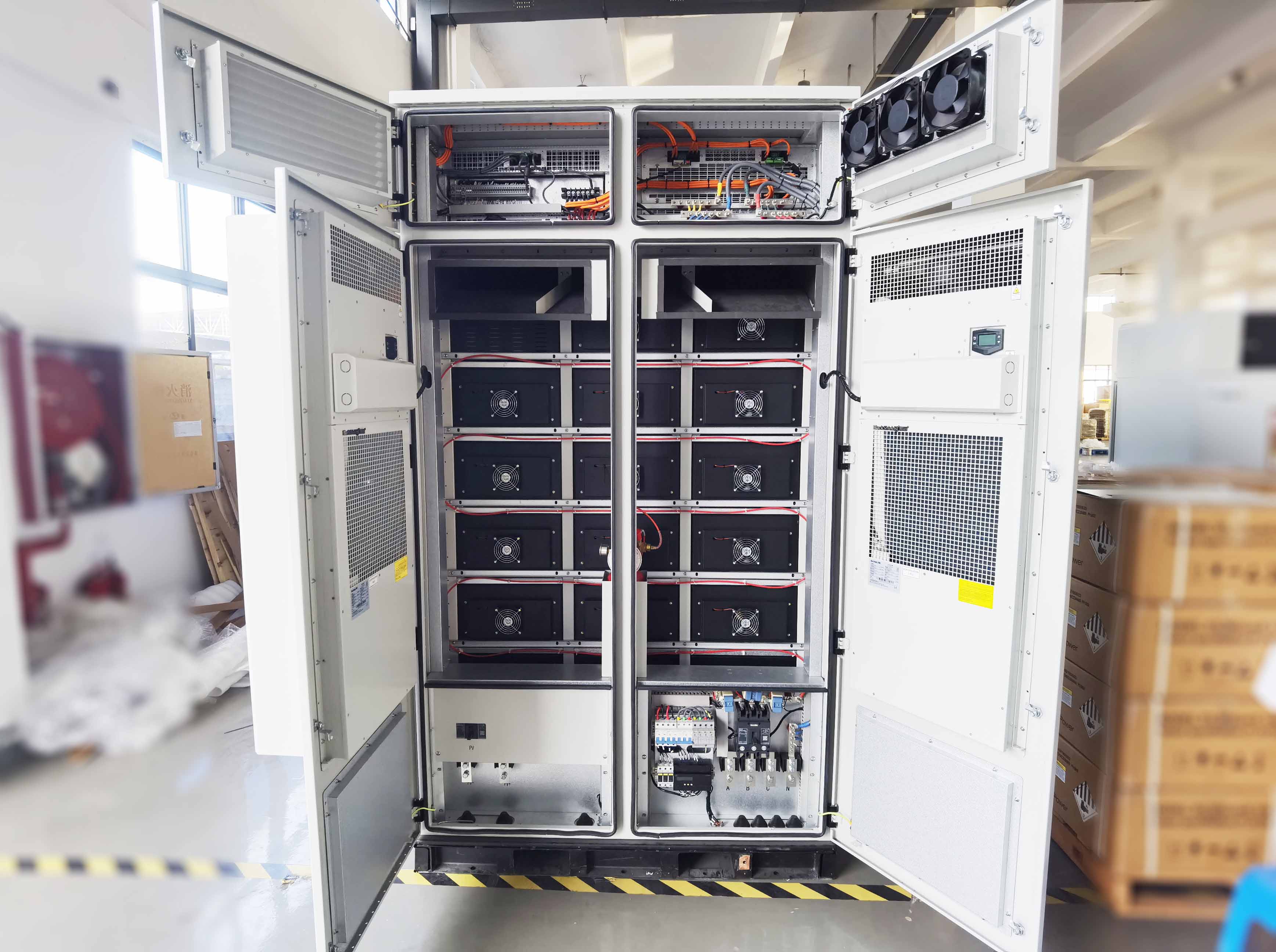

Lithium Battery Module
The main components of svstem consist of a batterv module formed by safe, high-efficiency, long-life lithium iron phosphate cells connected in series, and a battery cluster formed by multiple modules connected in series.
Battery Management System
The core component of the system effectively protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system.
Monitoring System
System operation data monitoring, operation strategy management, historical data logging, system status logging, etc.

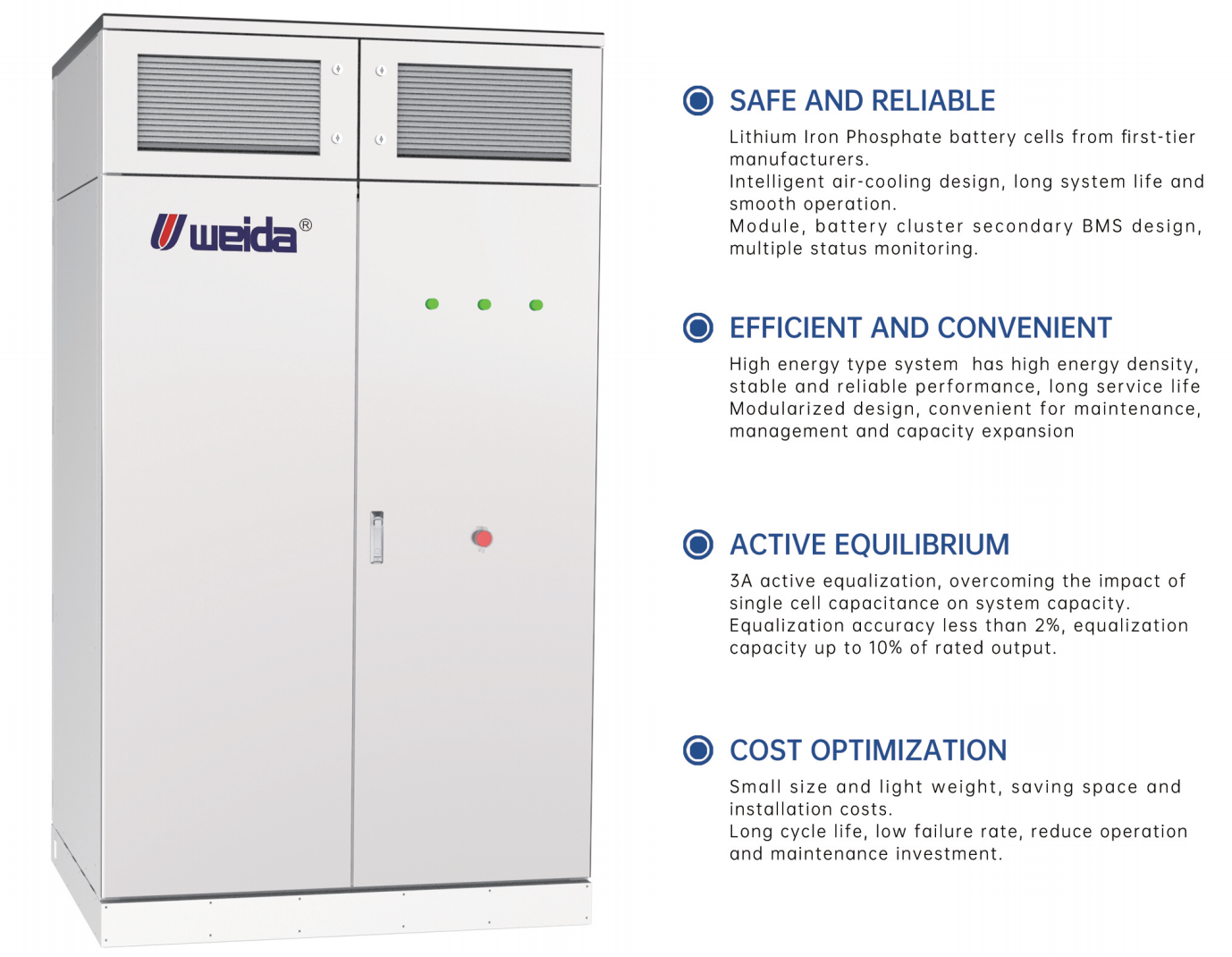

System Features
safe And Reliable
First-line manufacturer cells, intelligent air-cooling design, long life. Module, battery cluster secondary BMS design, multiple status monitoring, three-level electrical protection system.
Efficient And Convenient
High-energy type system has high energy density, stable and reliable performance, long service life, and modularized design, which is convenient for maintenance, management, and capacity expansion.
Active Equilibrium
3A active equalization to overcome the influence of single cell capacitance on system capacity. Equalization accuracy is less than 2%, and equalization capacity reaches 10% of rated output.
Cost Optimization
Small size and light weight, saving space and costs. Long cycle life, low failure rate, reduce 0&M investment.
