Integrated container
energy storage system
SAFE AND RELIABLE
EFFICIENT AND CONVENIENT
MULTIDIMENSIONAL INTEGRATION
Brand ：weida
Product ：origin china
Delivery time ：within 20 days
Supply capacity ：50 per month
Summarize
The integrated container energy storage system consists of battery clusters, bidirectional power conversion system (PCS), battery management system (BMS), energy management system (EMS), fire protection system, lighting system, dynamic loop control system, access control system, isolation transformer (optional) and so on.Multiple monitoring of system status and hierarchical linkage constitute a comprehensive protection system integrating electrical safety and functional safety. Container system, standardized and pre-fabricated design, reduce customization time and construction costs, and reduce safety hazards caused by local installation differences and management risks. It meets the application requirements of regional power grid in peak regulation, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

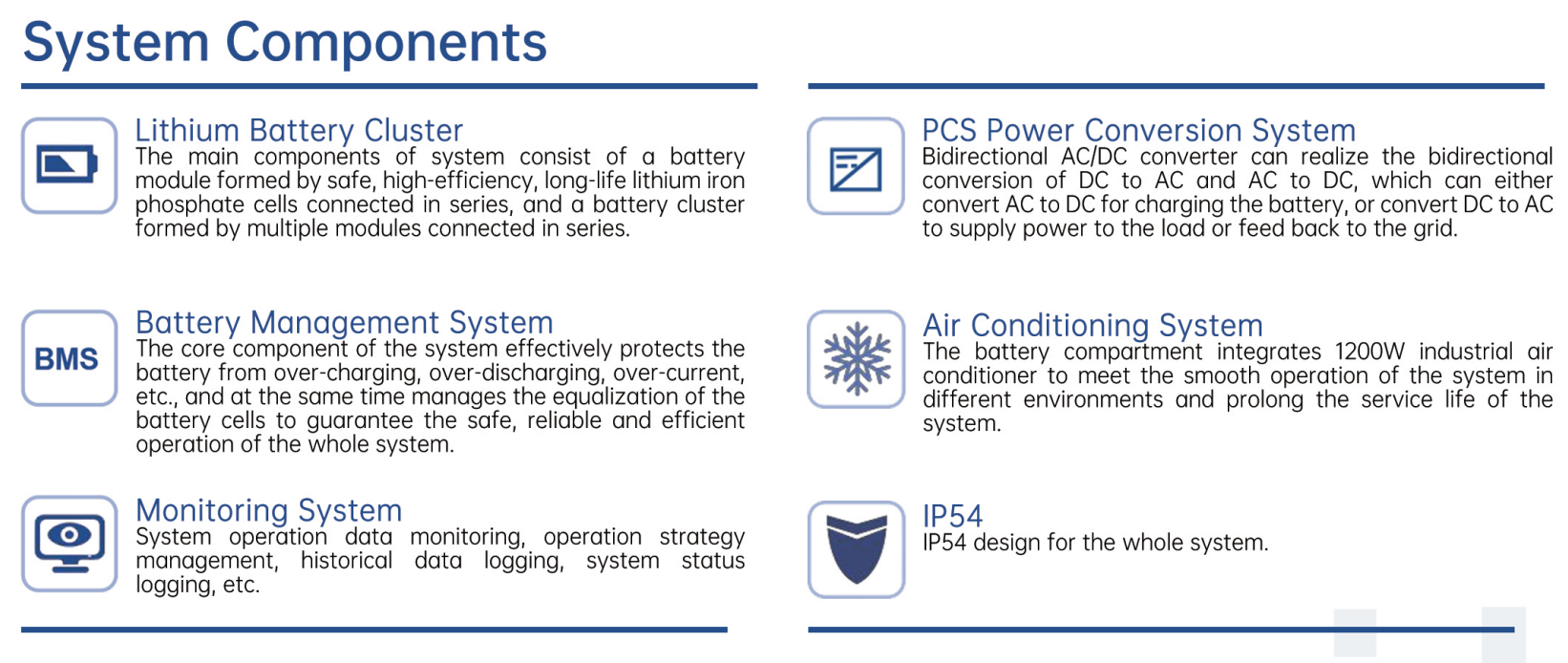

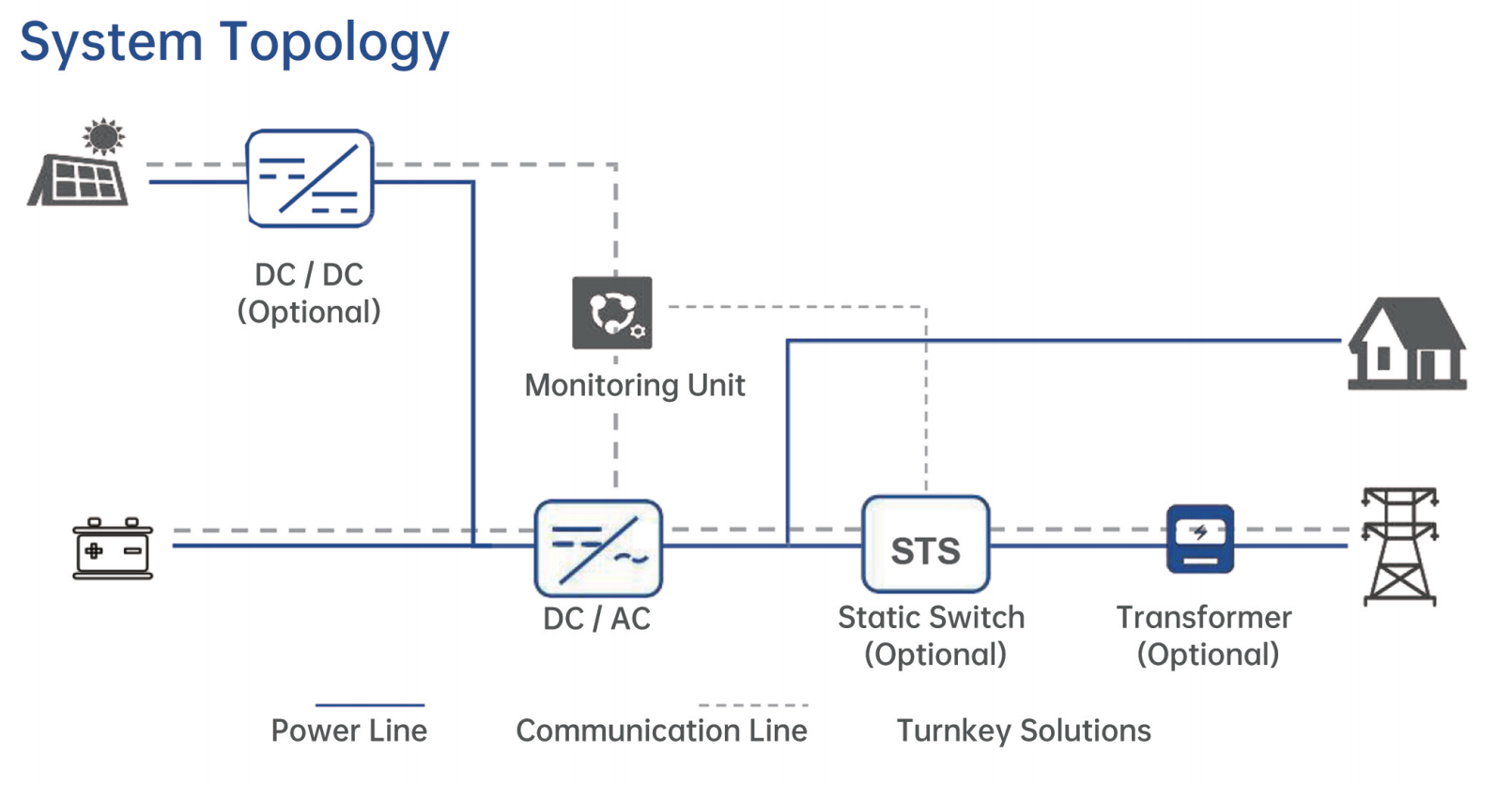

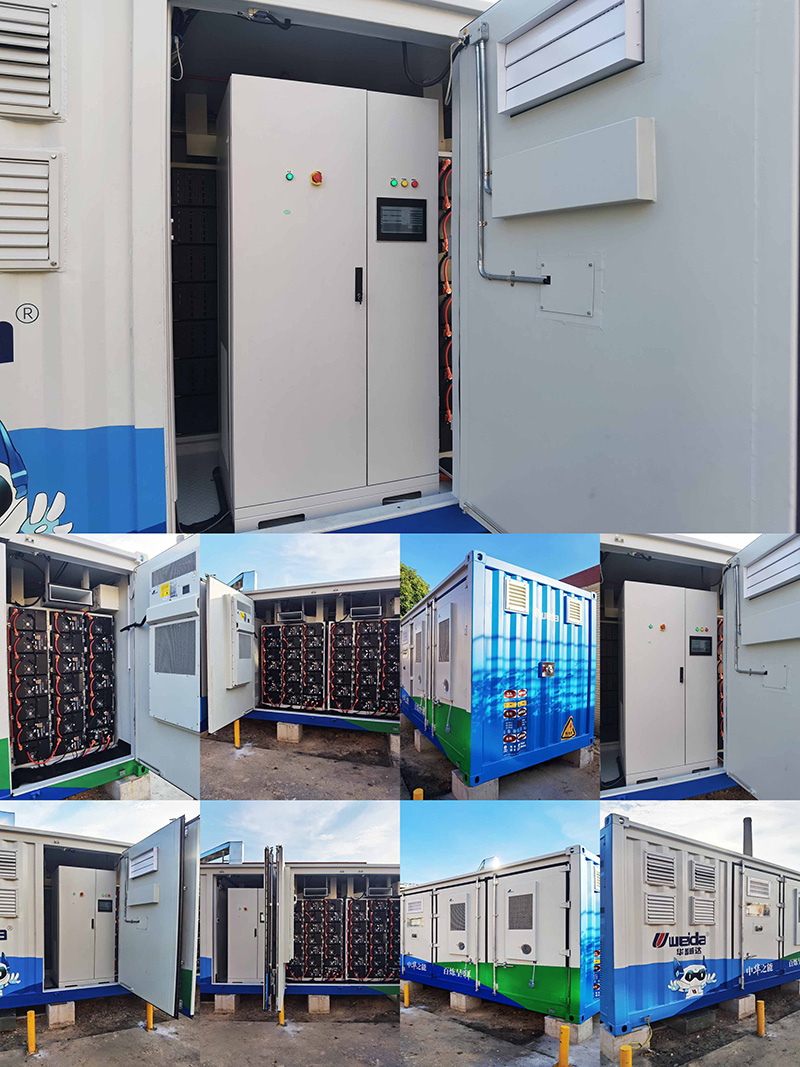

System Components
Lithium Battery Cluster
The main components of system consist of a battery module formed by safe, high-efficiency, long-life lithium iron phosphate cells connected in series, and a battery cluster formed by multiple modules connected in series.
Battery Management System
The core component of the svstem effectivelv protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system.
Monitoring System
System operation data monitoring, operation strategy management, historical data logging, system status logging, etc.
PCS Power Conversion System
Bidirectional AC/DC converter can realize the bidirectional conversion of DC to AC and AC to DC, which can either convert AC to DC for charging the battery, or convert DC to AC to supply power to the load or feed back to the grid.
Air Conditioning System
The battery compartment integrates 1200W industrial air conditioner to meet the smooth operation of the svstem in different environments and prolong the service life of the system.
1P54
IP54 design for the whole system.
System Parameters
Photovoltaic parameters
Maximum access power of photovoltaic : 400KW
Rated Current : 606A
Rated Input Voltage : 3W+N+PE , 380/400W
Rated Frequency : 50/60
AC Parameters (Grid-Connected)
Rated Output Power (kw) : 500
Maximum Output Power (k) : 550
Rated grid voltage (V) : 3W+N+PE , 380 / 400V
Grid Voltage Range : -15%~+10%
Rated Grid Frequency (Hz) : 50 / 60
Grid Frequency Range (Hz) : ± 2
Output Current Harmonics : ≤ 3% (Rated Power)
DC Component : < 0.5% In
Power Factor : -0.9 ~ +0.9
Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120%) : Stop Running
AC Parameters (Off-Grid)
Rated Output Power (kw) : 500
Maximum Output Power (kw) : 550
Rated Output Voltage (V) : 3W+N+PE, 380 / 400V
Output Voltage Harmonics : 3% (Linear Full Load)
Rated Frequency (Hz) : 50 / 60
Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120% ) : Stop Running
Battery Parameters
Cell Type : Lithium Iron Phosphate
Single Battery Cabinet Power : 215.04
Number Of Battery Cabinets : 5
Battery System Power (kwh) : 1075.2
Rated operating hours (h) : 2 (Changeable number of battery modules to meet time options)
Battery Life : 25°C 0.5C / 0.5C 100%DOD SOH80% ≥ 6000times
