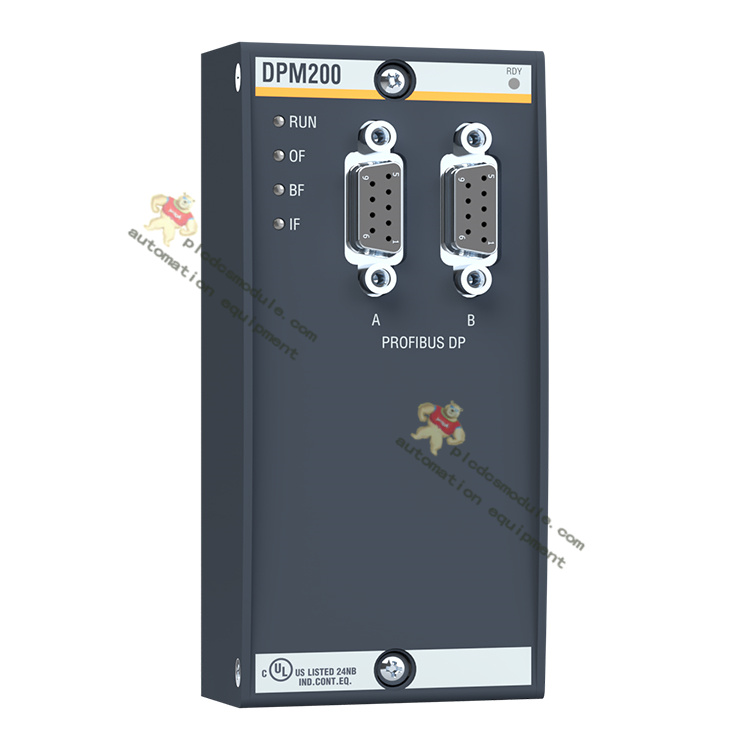

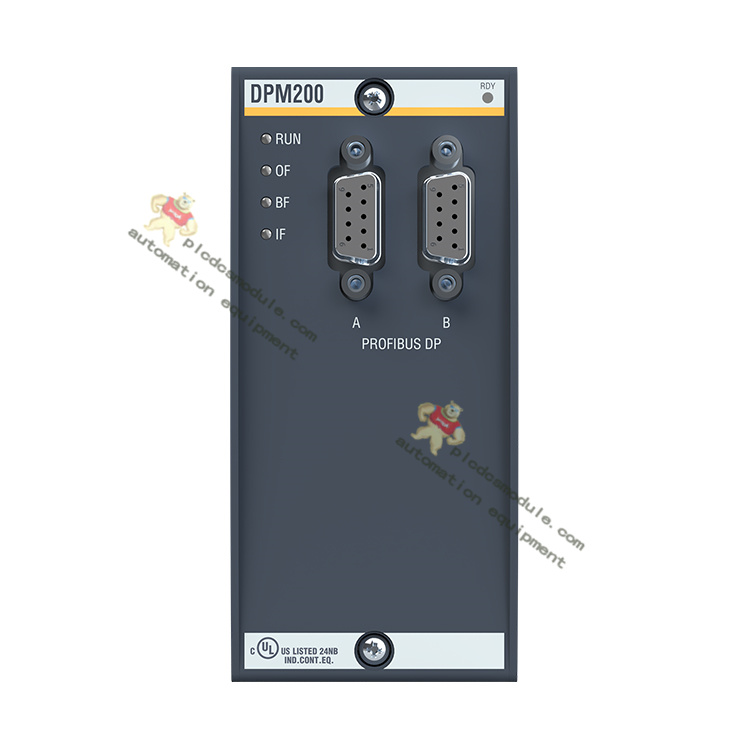

DPM200 PROFIBUS DP Master Module
PROFIBUS is a field bus that is widely used, particularly in the area of mechanical engineering and plant engineering and even today – in spite of all Ethernet-based fieldbuses – it continues to show increasing quantities. A broad palette of peripheral components and an active user organization will also ensure long-term availability of PROFIBUS components in the future. Bachmann electronic offers a fieldbus module for the backplane that can be used both as master, as well as slave. The SolutionCenter contains a complete configurator that enables interfaces to the engineering tools of other manufacturers through the consistent application of standards.
The fieldbus module DMP200 for PROFIBUS DP (Distributed Peripherals) can be operated as DP master, DP slave or as combined master/slave, which in a multi-master network offers variables for another master. The process data is available to the application program as logical I/O module and thus can be reached via the process image or via the function interface.
Features
Up to 3 DPM200 modules per M1 controller
Transfer rate 9.6 Kbaud to 12 Mbaud
8 kByte shared memory for process data image
Consistency lock for data blocks is configurable
Two internal bridged connections for loop-through of the cable
Galvanic isolation between fieldbus and controller
