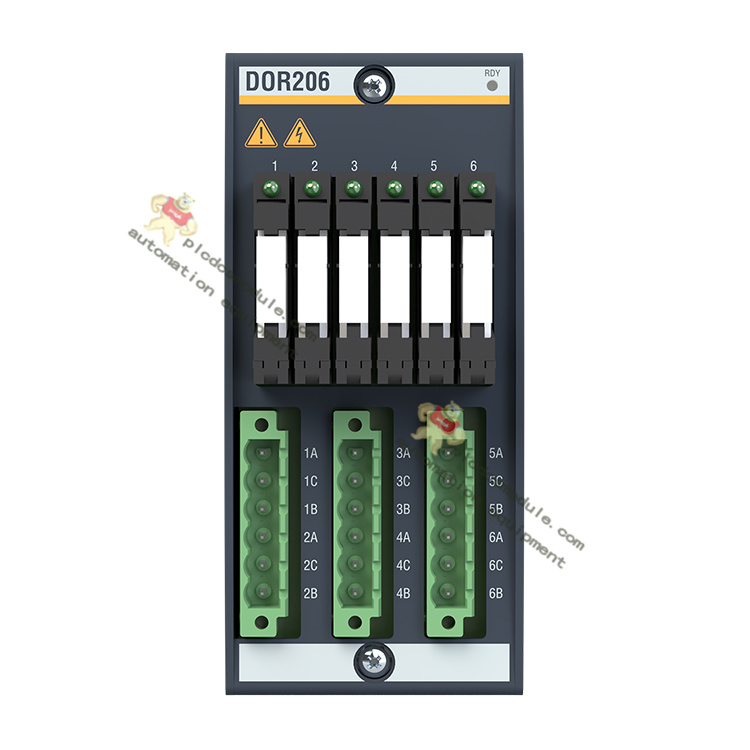

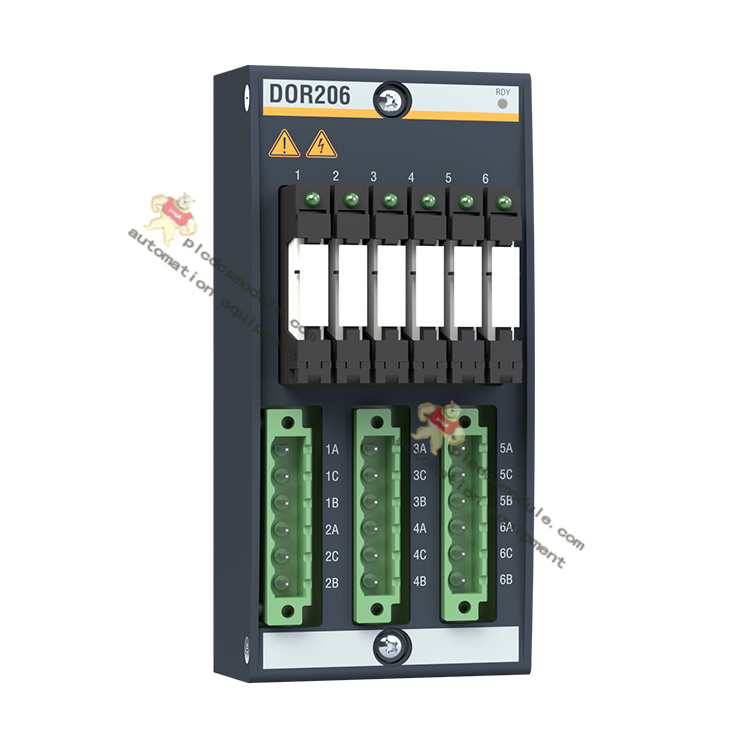

BACHMANN DOR206/230 Digital Relay Output Module
Relays are the simplest way of controlling galvanically isolated power circuits. The output module’s direct plugability relays drastically reduce wiring work, save valuable control cabinet space and facilicate troubleshooting. The locking mechanism keeps the relay in place even when subjected to shocks and vibrations. The relays offer maximum flexibility for implementation in control cabinets thanks to possibilities offered by standard relay types with a voltage range from 24 V/48 VDC or 230 VAC, a broad power range and the selection of valuable electromechanical relays or solid state for high make-and-break cycles.
Quick and easy serviceability without the use of tools is won by availability, clear status and error display (thanks to LED) and a locking/ejecting mechanism of relays as service parts.
Features
6 relays
Normally open contact (NO), normally closed contact (NC), change-over contact (CO)
Standard socket for SIL relays
Electromechanical or solid state relays
Mechanically locked relays
Coil current monitoring
Status display for each channel via LED
Galvanic isolation measured for voltages from system to channel 2500 VAC
Backplanes BS2xx/S with protection class 1 for other voltages than SELV are available
Cost effective and space saving through direct wiring to the consumer without relay and terminal
