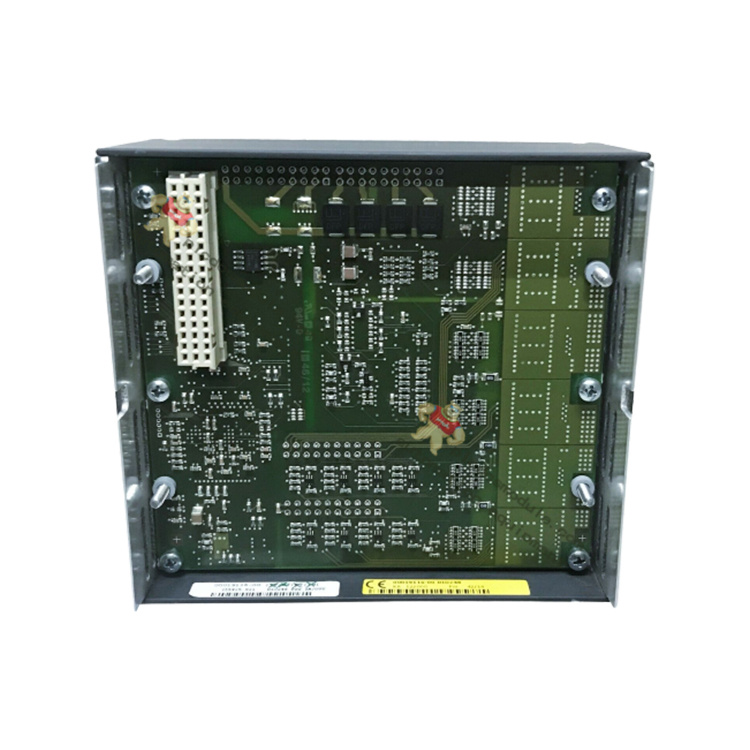

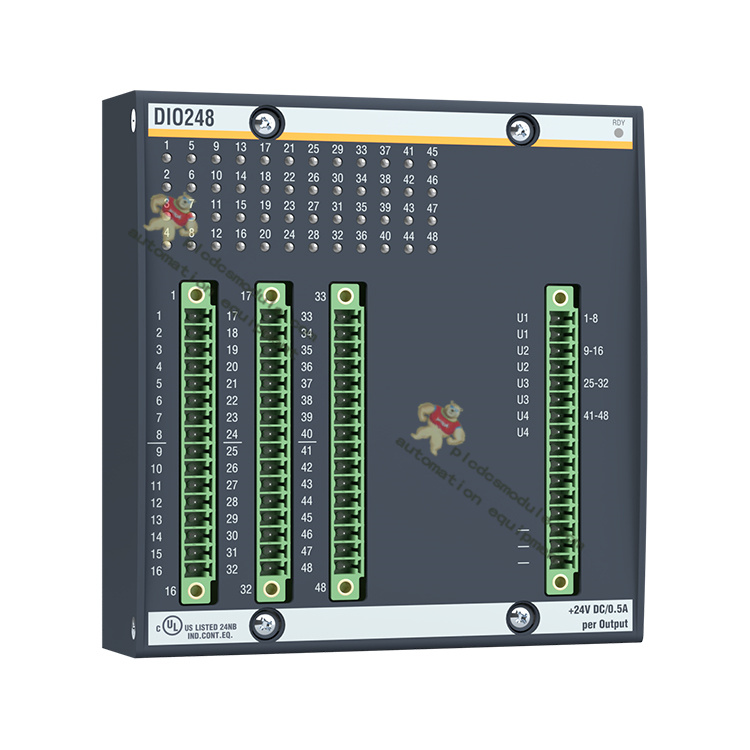

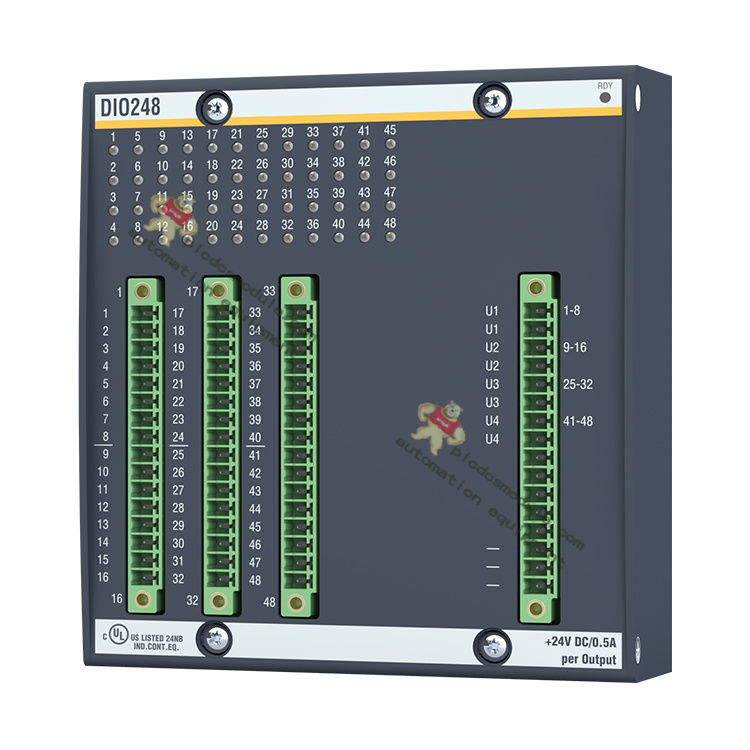

Bachmann DIO248 Digital Input/Output Module
The input/output module DIO248, DIO264 and DIO280 are used for controlling digital consumer like contactors, relays, pneumatic and hydraulic valves, as well as for reading signals of digital working sensors, detectors or switches. On events can be reacted expressly via 8 available interrupt inputs. Alternatively there are available up to four counters, for detecting e.g. positions or counting goods. For the energy-saving operation of inductivities all outputs can be operated as PWM. Especially for the PWM operation of valves a hold time is additionaly configurable between 0 up to 2 s. Outputs are parallel connectable, in case it is operated in the same operation mode.
Features
48/64 or 80 digital channels
16 channels can be configured as input or output
Configurable interrupt inputs
Configurable 32 bit counter
Mode: event counter, incremental encoder, gate measurement, cycle time or frequency measurement
Configurable input filter
PWM output mode for e.g. valve economy mode
Status display for each channel via LED
Supply voltage 18 to 34 VDC
Supply voltage protected against reverse polarity
Cost effective and space saving
