NI PCI-8512 CAN Interface PCI Module

NI PCI-8512 CAN Interface PCI Module

Single-Port, High-Speed/FD CAN Interface Device - The PCI-8512 is a high-speed Controller Area Network (CAN) interface with flexible data rates for developing applications in conjunction with NI-XNET drivers.

The PCI-8512 is ideally suited for applications that require high-speed, real-time manipulation of hundreds of CAN frames and signals, such as hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, automation control, and more. The NI-XNET device driver's DMA engine enables the on-board processor to transfer CAN frames and signals between the interface and the user program without interrupting the CPU, minimising message latency and allowing the host processor time to process complex models and applications.

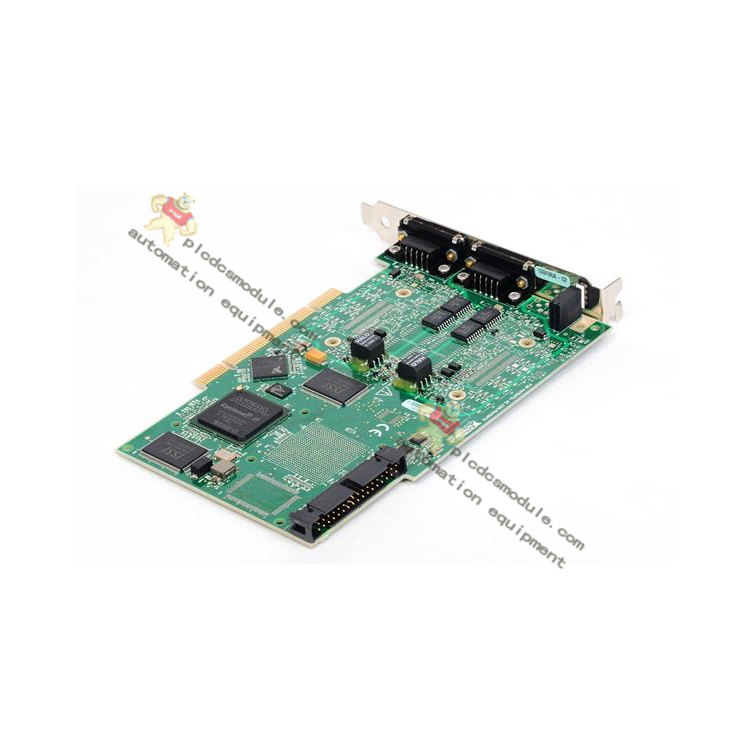

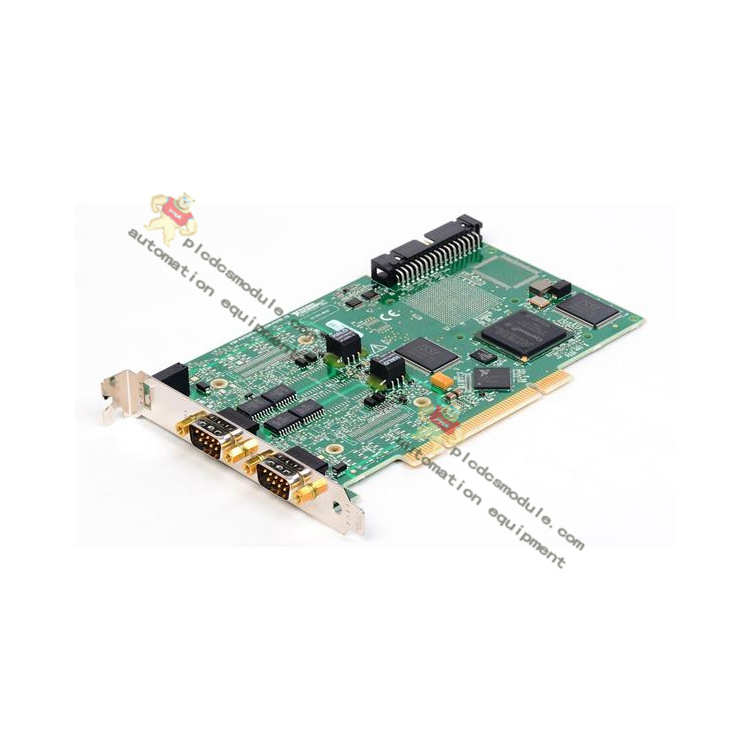

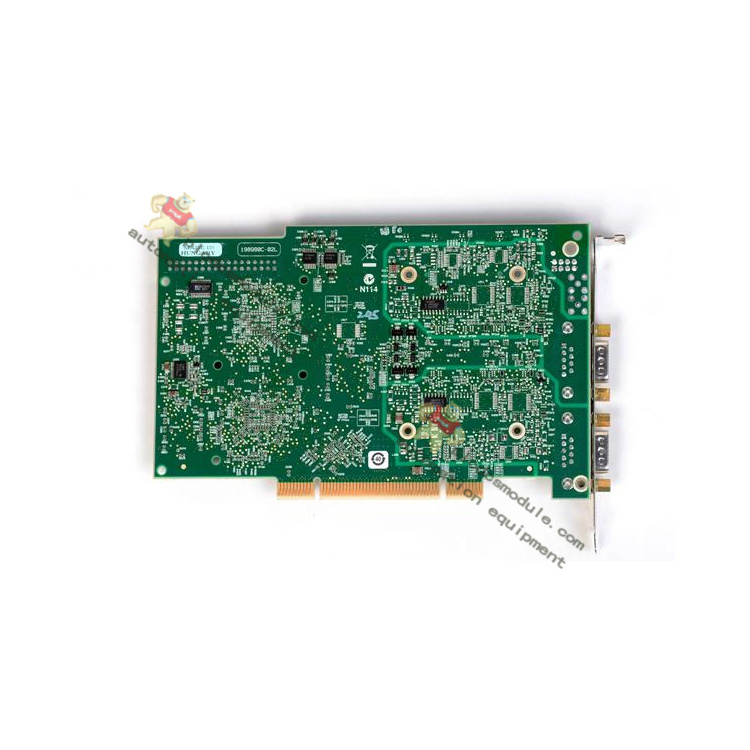

National Instruments PCI-8512/2 High Speed/FD NI-XNET CAN Interface PCI Module

Configuration:

- Bus: CAN

- Physical Layer: High Speed/FD

- (2) TJA1041 transceivers

- Minimum baud rate: 40 Kbits/s

- Maximum baud rate: 8 Mbit/s

- (2) ports

Part numbers: 198690A-02, 198980C-02L, 780683-02
