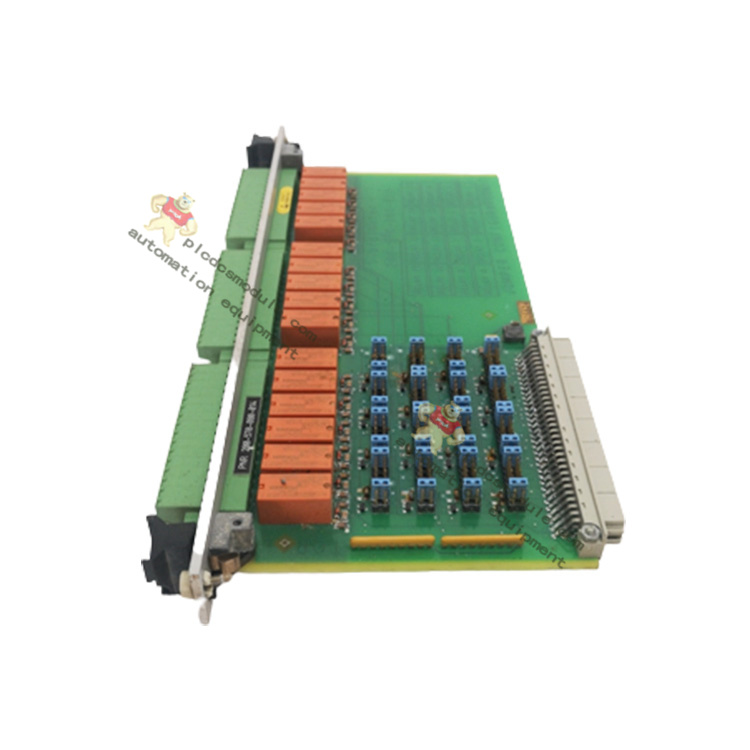

VIBRO-METER 200-570-000-014 Relay Card
The Vibro-Meter 200-570-000-014 is associated with the VM600 series of mechanical protection systems and condition monitoring systems in the Meggitt Vibro-Meter product line. It is an optional relay card for use when the four relays on the IOC4T input/output card are not sufficient for the application and additional relays are required. The card contains 16 relays with changeover contacts that can be mounted on the rear of the VM600 rack. Each relay is associated with three terminals on a screw terminal connector accessible from the rear of the rack. The relays are controlled by a software-controlled open collector driver, and jumpers on the card allow selection of relay normally energized (NE) or normally de-energized (NDE).
Install the Vibro-Meter 200-570-000-014 relay card in the rear of the VM600 rack. Ensure that it is securely attached to the rack backplane via a single connector.
Connect the screw terminal connector on the rear of the VM600 rack to the appropriate device or circuit that requires relay control. each relay on the Vibro-Meter 200-570-000-014 card is associated with three terminals on the screw terminal connector.
