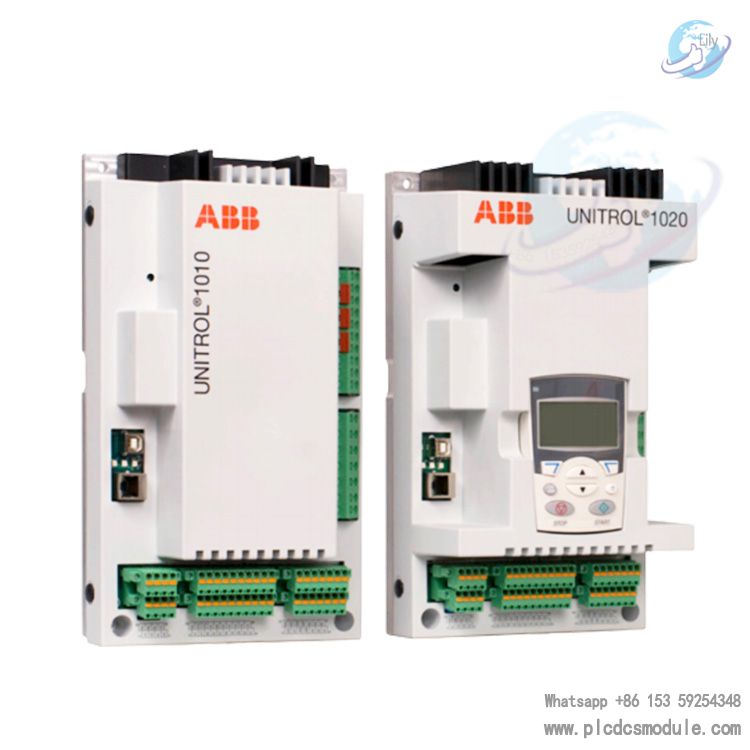

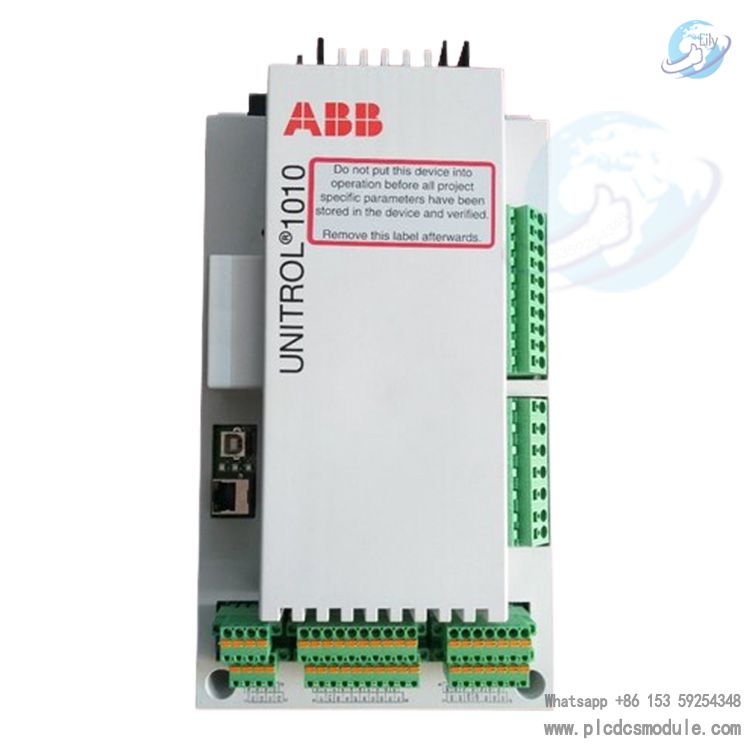

ABB UNITROL 1010 3BHE035301R1002 UNS0121A-Z,V1 Control Unit UNITROL1010. The UNITROL 1010 is an automatic voltage regulator (AVR) used for 3-phase sensing, permanent magnet generator (PMG) or auxiliary winding powered alternators. It is manufactured by ABB and is available as an option for alternators in the AvK® range. The UNITROL 1010 provides a maximum excitation current up to 10 Adc continuous. It has Ethernet port, USB port, RS485, LED Indications, I/Os (in, and out), Power terminals, and Measurement terminals. The UNITROL 1010 maintains a constant voltage level to electrical equipment on the same load. It is developed in compliance with set industry norms and regulations and regulates voltage variations to deliver constant, reliable power supply. The UNITROL 1010 comes in two different versions, the UNITROL 1010-0002 LIGHT, and the UNITROL 1010-0003 BASIC. The order code for the UNITROL 1010-0002 LIGHT is 3BHE035301R0002, and for the UNITROL 1010-0003 BASIC, it is 3BHE035301R0003.
Click to open the file below for more details, or download it:
Functional Features
Dual-channel Support: It has built-in dual-channel support, which can be used for precise load distribution in parallel operating units.
Monitoring and Synchronization Functions: It is equipped with a rotating diode monitoring function, which can monitor the status of rotating diodes in real time to ensure the stable operation of the excitation system. It also supports automatic synchronization, enabling the generator to quickly and accurately synchronize with the power grid or other generators.
Rich Communication Options: It has a variety of integrated communication options, which can conveniently conduct data interaction and communication with other devices or systems, facilitating remote monitoring and management. In addition, it is equipped with Ethernet and USB connections for easy connection and data transmission with external devices.
Data Recording Function: It has the function of data and event recording, which can record the operation data and relevant events of the excitation system, facilitating troubleshooting and operation analysis.
Advanced Technology and High Reliability: Based on advanced microprocessor technology and IGBT semiconductor devices that allow a continuous operating current output of up to 10ADC, it can operate reliably under harsh conditions and in different temperature ranges, and fully complies with DNV and UL standards.
