WINGREEN   LAIB V3.0_A00 034STN1-00-300-RS Circuit board

PRODUCT DETAIL

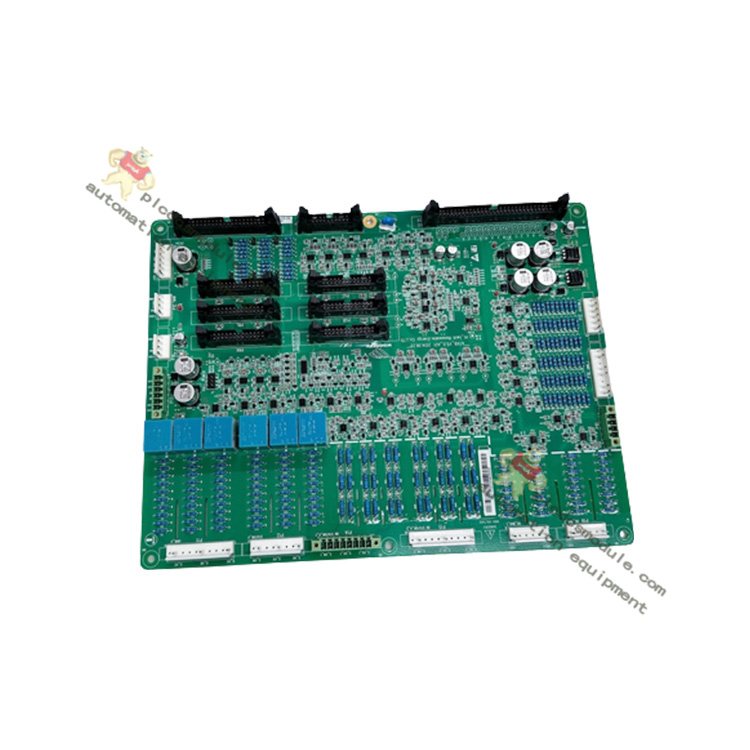

Product Description: LAIB V3.0_A00 034STN1-00-300-RS

Brand：WINGREEN

The design of a printed circuit board is based on the circuit schematic and implements the functions required by the user of the circuit. The design of a printed circuit board mainly refers to the layout design, which requires various factors such as internal electronic components, metal connections, layout of through-holes and external connections, electromagnetic protection, thermal dissipation, crosstalk, etc. 034STN1-01-300-RS, 03ZSTL6-00-201-RS, 03ZSTJ1-00-301-RS, 03ZSTI2-00-501-RS.

Classification of printed circuit boards

1、Single panel

On the most basic PCB, the parts are concentrated on one of the sides and the wires on the other. Because the wires only appear on one side, so this PCB is called single-sided (Single-sided). Because single-sided in the design of the line has many strict restrictions (because only one side, the wiring can not cross between and must be around a separate path), so only the early circuit use this type of board.
