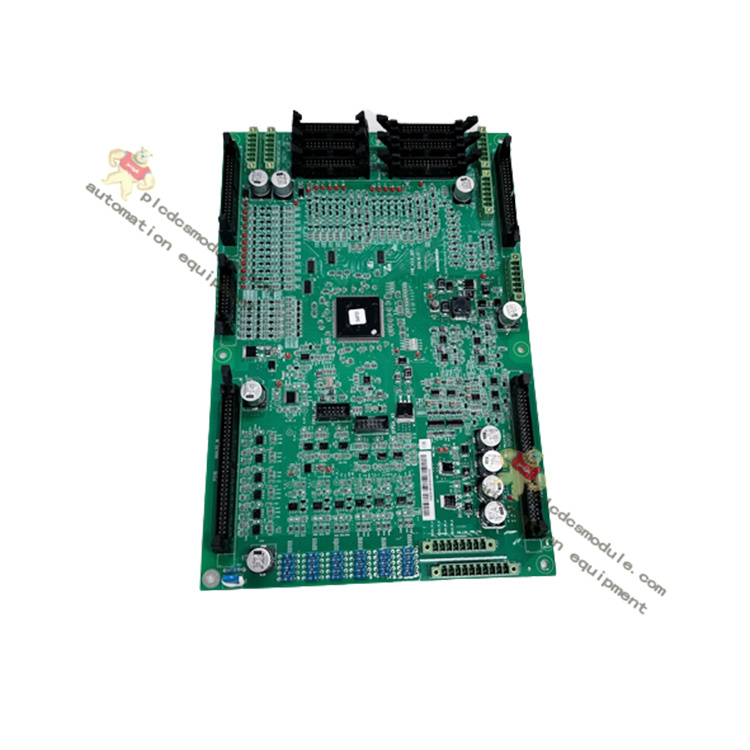

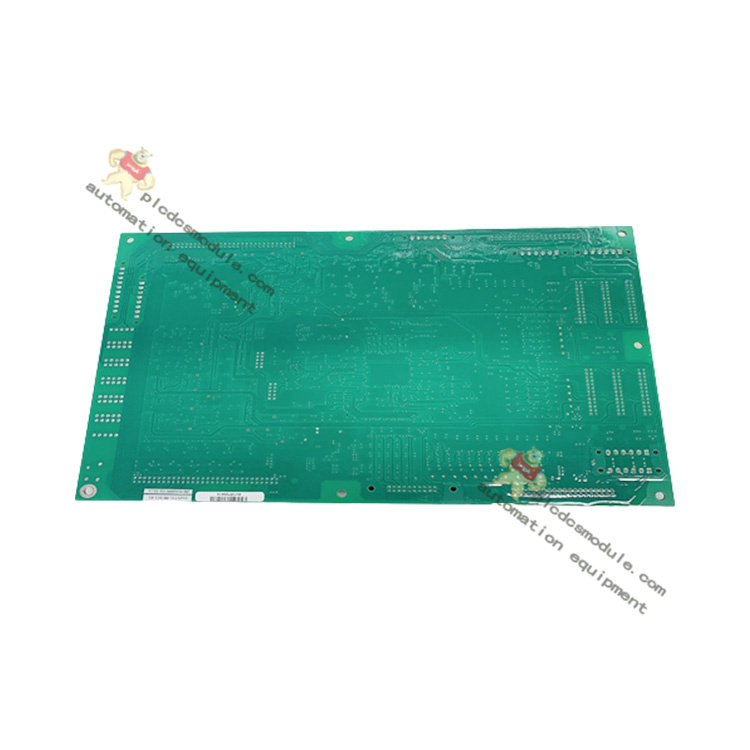

WINGREEN FPB_V3.0_A01 03ZSTJ1-00-301-RS POWER SUPPLY BOARD
Part number: FPB_V3.0_A01 03ZSTJ1-00-301-RS
Manufacturer:WINGREEN
Product Description:POWER SUPPLY BOARD
WINGREEN FPB_V3.0_A01 03ZSTJ1-00-301-RS POWER SUPPLY BOARD After power on, the secondary power supply starts working first to provide positive 5 volts operating voltage for WINGREEN FPB_V3.0_A01 03ZSTJ1-00-301-RS main board microprocessor control system.
After power on, the secondary power supply provides VCC-ON power to the PFC power factor correction circuit drive control circuit UCC28051 and the main switching power supply drive giant circuit DLA001, and the main switching power supply starts working to provide positive 24 volts and positive 12 volts to the main circuit board load circuit.
When the TV is in standby, the main power supply stops working by cutting off the VCC-ON supply of the PFC power factor correction circuit drive control circuit UCC28051 and the main switching power supply drive control circuit DLA00l.
WINGREEN FPB_V3.0_A01 03ZSTJ1-00-301-RS POWER SUPPLY BOARD
If you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their priceand give you further discounts.
We’ll choose the best and cheapest transport company.
We’ll track the goods time by time until they arrive at client's hand
