TRICONEX 8310 Power Module 120V AC/DC TRICON8310
Part number: 8310
Manufacturer:TRICONEX
Product Description:Power Module 120V AC/DC

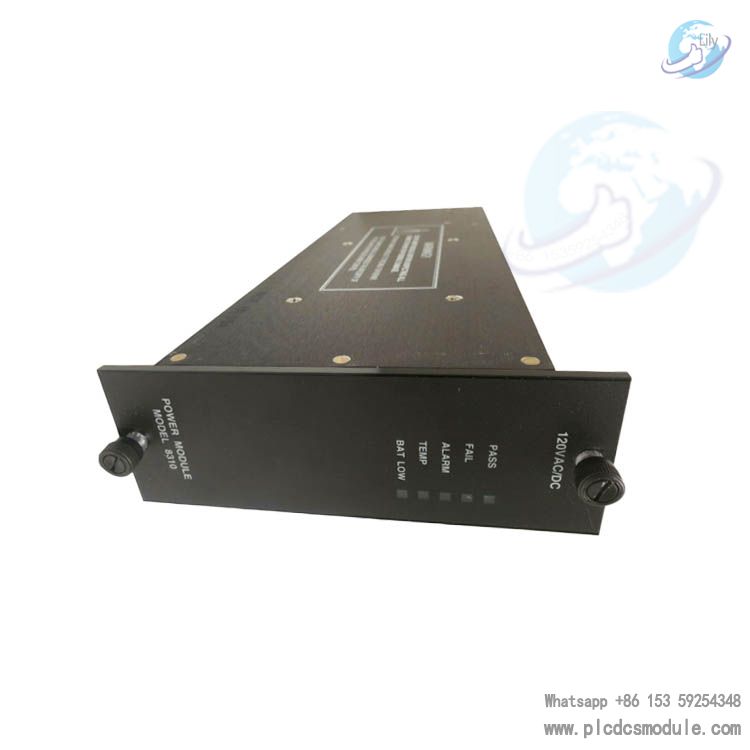

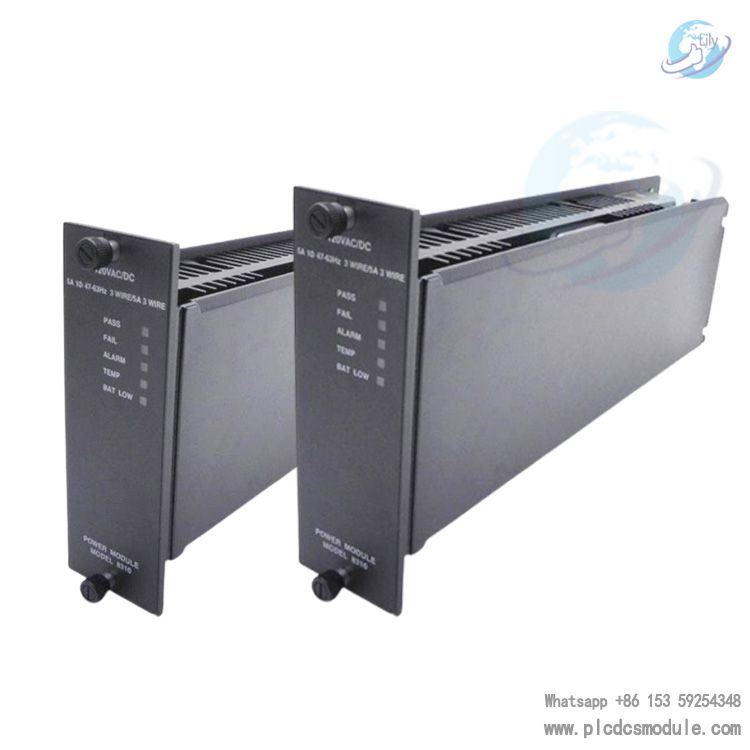

TRICONEX 8310 is a power module used in the TRICONEX control system. It has been discontinued by the manufacturer. The module is designed for use in a chassis of type Main/Expansion/RXM and has a nominal voltage of 120VAC/DC with 47-63Hz . It has a fuse rating of 5Amps with a time-delay . The module has PASS/FAULT/ALARM/TEMP indicators.
Here are some steps to follow when working with the TRICONEX 8310 power module:
Ensure that the power supply is compatible with the TRICONEX control system.
Check the voltage and fuse rating of the module to ensure compatibility with the system.
Connect the power module to the appropriate slot in the chassis.
Check the PASS/FAULT/ALARM/TEMP indicators to ensure that the module is functioning properly.
In case of a fault, troubleshoot the system using the diagnostic indicators.
the TRICONEX 8310 module has been discontinued by the manufacturer. It is recommended to use newer and more modern fault-tolerant controllers based on Triple Modular Redundancy (TMR) architecture .
TRICONEX 8310 Power Module 120V AC/DC TRICON8310
TRICONEX 8310 Power Module 120V AC/DC TRICON8310
1、Modular / Card Parts(Modular)
Power supply, main processor, communication, y/O, remote number
2、 Rack(Chassis)

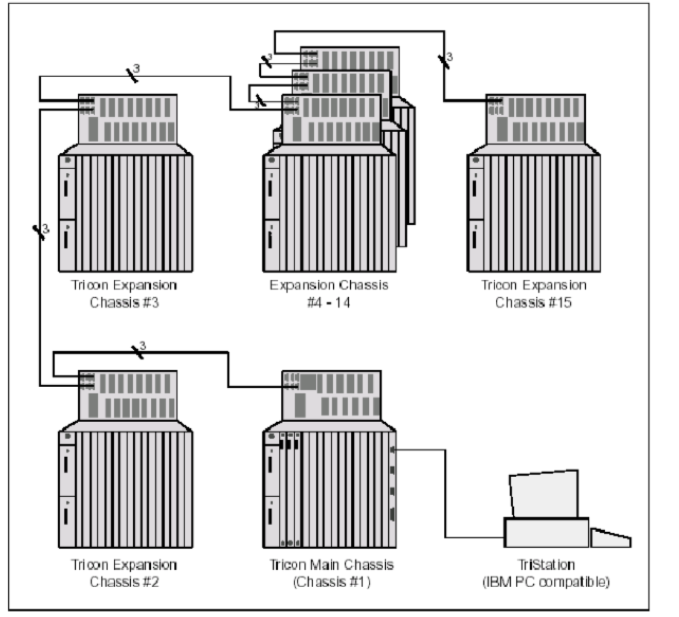

Tricon Version9 has three forms of racks: main rack, expansion rack, and remote rack.
A TRICON system contains up to 15 racks of P10- fixed
●Main rack with up to 6 I/O module sets for main and expansion racks up to 30 meters
● Each expansion rack supports up to 8 I/O groups, three 118 main and remote racks up to 12 km
TRICONEX's TMR (Triple Modular Redundancy) products and technologies are widely used in the natural gas, petroleum, chemical, power, and rail transportation industries for plant safety, ESD, turbomachinery unit control, boiler, power generation, offshore oil and gas, and other applications.
ESD, turbomachinery unit control, boilers, power generation equipment, offshore oil
platform, fire and gas monitoring and alarm, railroad turnout signal control, etc. We have a wide range of performance.
