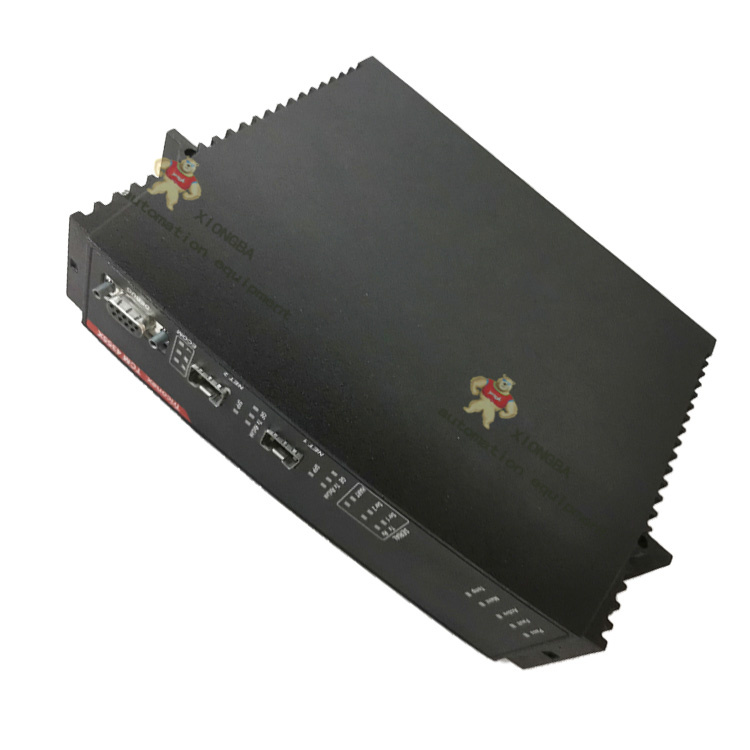

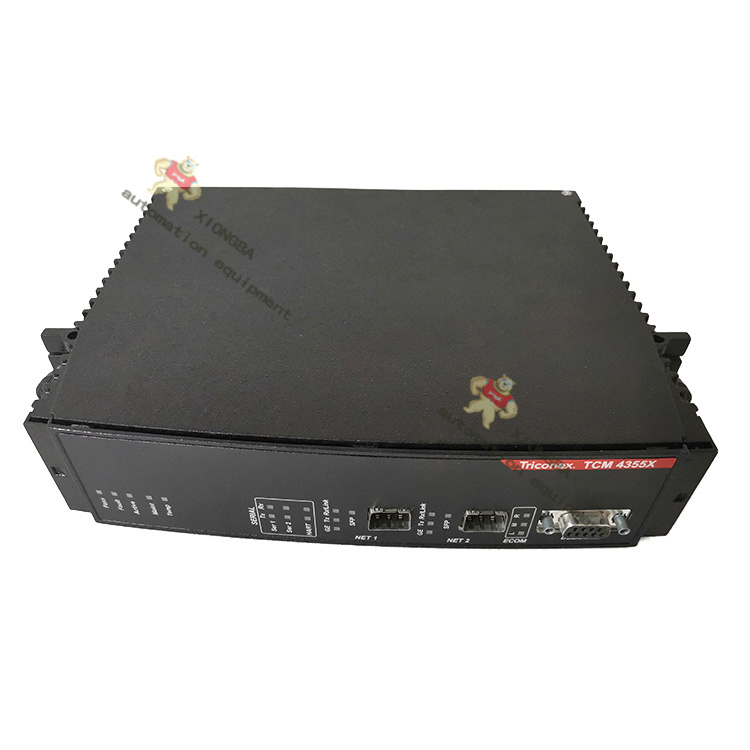

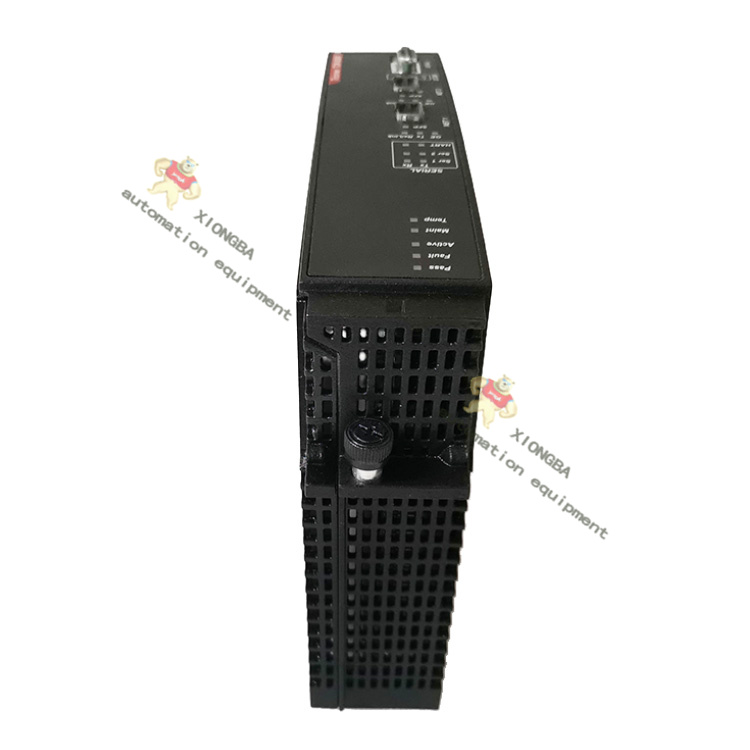

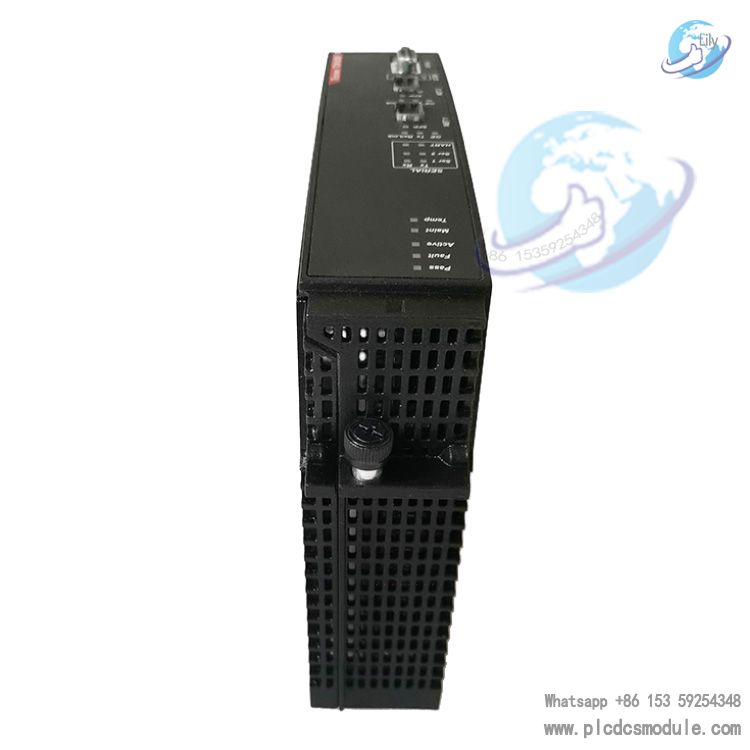

The TRICON CX 4355X is a communication module manufactured by Triconex and is used for the control of automation systems. This module has 32 differential input points and adopts a DC coupling method. It is capable of accepting an input voltage ranging from 0 to 5 volts direct current (DC) or from -5 to +5 volts DC. The input update rate is 10 milliseconds.
The network ports (NET 1 and NET 2) on the 4355X TCM are 100BASE - TX and 1000BASE - T (copper) or 100BASE - FX and 1000BASE - X (fiber optic) connectors. However, the ports support fiber optic media via the use of Small Form - factor Pluggable devices (SFP).
specification:
FEATURE | SPECIFICATION |
Serial ports | 2, galvanically isolated RS - 232/RS - 485 interfaces, DB - 9 connectors |
Port for diagnostic read - out analysis | 1, galvanically isolated RS - 232 interface, 9 - pin connector |
Speed | Up to 115.2 Kbps per port, aggregate data rate of 230.4 Kbps |
Port isolation | 500 VDC |
Communication module network interface protocols | 2, 100Base - TX/1000Base - T Ethernet (Copper Networks) |
Communication protocols | TriStation, Modbus Client, Modbus Server, Modbus TCP/IP, TSAA (with support for IP Multicast), Peer - to - Peer, Triconex Time Synchronization, External HART DTM, HART - IP, SNTP, and Jet Direct (network printing) |
Supported Modbus functions | 01 — Read Coil Status |
Status indicators - Module status | Pass, Fault, Active, Maint, Temp |
Status indicators - Serial port activity | 1 transmit (Tx) indicator per port |
Status indicators - Network port activity | 1 Gigabit Ethernet (GE) indicator per network port |
Status indicators - ECOM bus activity | L, M, R |
HART | HART 7 compatible |
System power | < 19 W |
The TRICONEX 4355X module can be tested using LabVIEW . The Tricon system, which includes the 4355X module, is designed to be powerful and scalable, with continuous operation assurance. It complies with international standards such as IEC61508 and fulfills the requirements for applications such as Emergency Shutdown (ESD), Fire and Gas Protection (F&G), Burner Management (BMS).
HS code: 8538900000
Dimensions: 60cm * 60cm * 20cm
Weight: 1.5kg
Country of origin: USA
The TRICONEX 4355X module can be used as a CPU communication processor module. It can also be used for pulse input, with an input frequency range of 20 to 20,000 hertz. However, operation below 20 hertz and above 20,000 hertz is not recommended.
When using the TRICONEX 4355X module, it is important to ensure that the input voltages are within the specified range and that the input update rate is appropriate for the application. It is also important to follow the manufacturer's guidelines for testing and integrating the module into a larger automation system.
