ABB 5SHX0660F0002 3BHE022333R0101 GVC713A101 Voltage IGCT Module

ABB 5SHX0660F0002  3BHE022333R0101 GVC713A101 Voltage IGCT Module

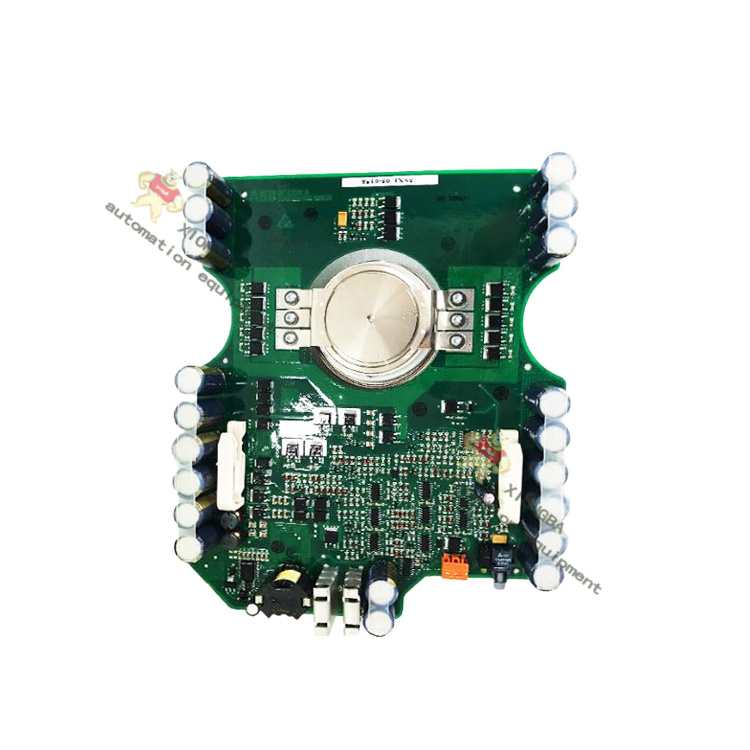

The ABB 5SHX0660F0002 IGCT module is a module for power electronics that combines the functions of IGCT (integrated gate commutated thyristor) and driver circuits for high power and high frequency applications.

IGCT is a kind of high-performance semiconductor switching device, which has the advantages of fast switching speed, high voltage resistance, high current capability, etc., and is widely used in power electronic equipment, such as frequency converter, DC transmission, motor control and so on.

ABB 5SHX0660F0002 IGCT module adopts advanced manufacturing process and packaging technology, with high reliability, high efficiency, long life and other advantages, while having a simple drive circuit and small package size, easy to integrate into a variety of power electronic equipment.

ABB 5SHX0660F0002  3BHE022333R0101 GVC713A101 The insulated gate bipolar transistor IGBT is the product of a combination of MOSFETs and GTRs. The main part of the IGBT is the same as the transistor, with collector and emitter, but the drive part is the same as the field effect transistor, which is an insulated gate structure, and the working characteristics of the IGBT are that the control part is the same as the field effect transistor, the control signal is a voltage signal UGE, the input impedance is high, the gate current I G ≈ 0, so the drive power is very small. The main circuit is the same as that of the GTR, with a collector current and an operating frequency of up to 20 kHz. inverters with IGBTs as inverter components generally have a carrier frequency of 10 kHz or more, so the motor current waveform is relatively smooth and basically free of electromagnetic noise.
