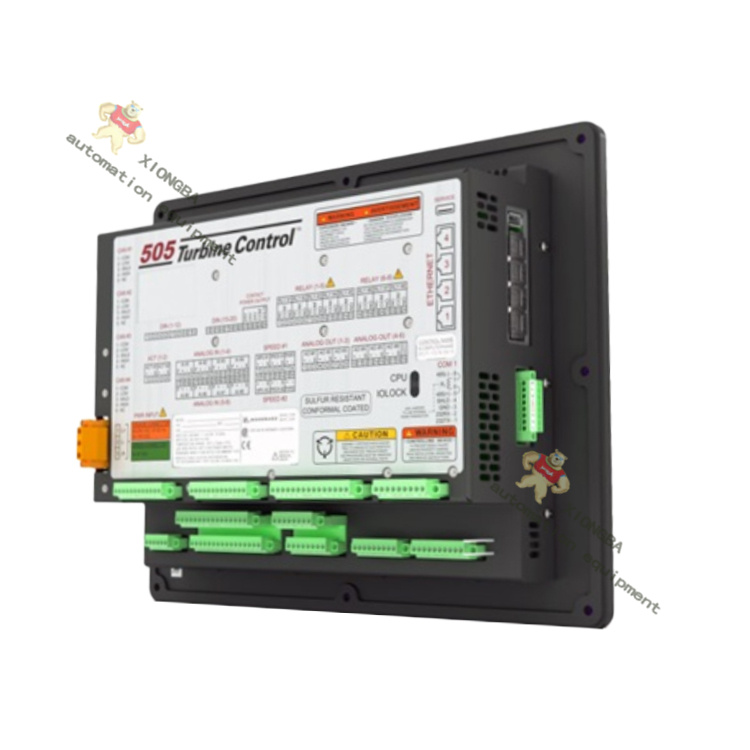

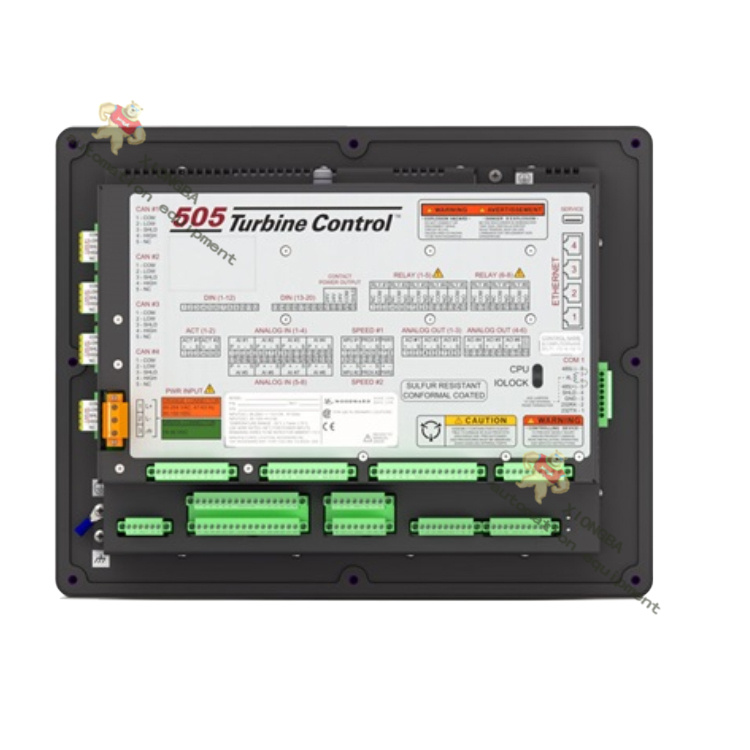

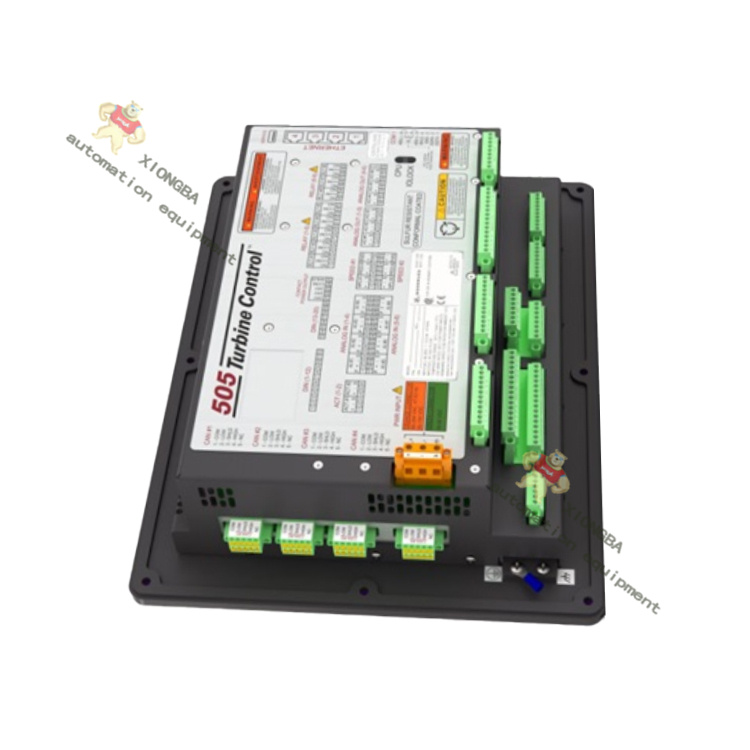

Woodward 8200-1300 505 controller.The Woodward 8200-1300 is a digital control unit designed for steam turbines. It is part of the 505 Turbine control family.
Power supply: LVDC (18-32vdc) power supply, in line with standards.
Location: Can be used in non-hazardous places, for Class I, Class 2, A/B/C/D group sites.
Control :8200-1300 controllable order making or double split actuator steam turbine.
Configuration: Can be configured as part of the factory DCS(distributed control system), can also be used as a stand-alone.PID controller: The unit is designed with five PID controllers, including speed/load PID controller, cascade PID controller, AUX1 and AUX2 PID controller.Operator Control Panel: It provides an operator control panel with graphical display and keyboard. The panel includes emergency Stop, start, Stop, esc, and home buttons, as well as a numeric keypad and toggle buttons.led: There are also four leds on the left side of the panel, including CPU Health, IO lock, summary alarm, and summary trip.Internal features: The 8200-1300 includes a watchdog timer and CPU fault circuit inside to monitor the operation of the microprocessor and its memory.
Woodward 8200-1300 505 controller
