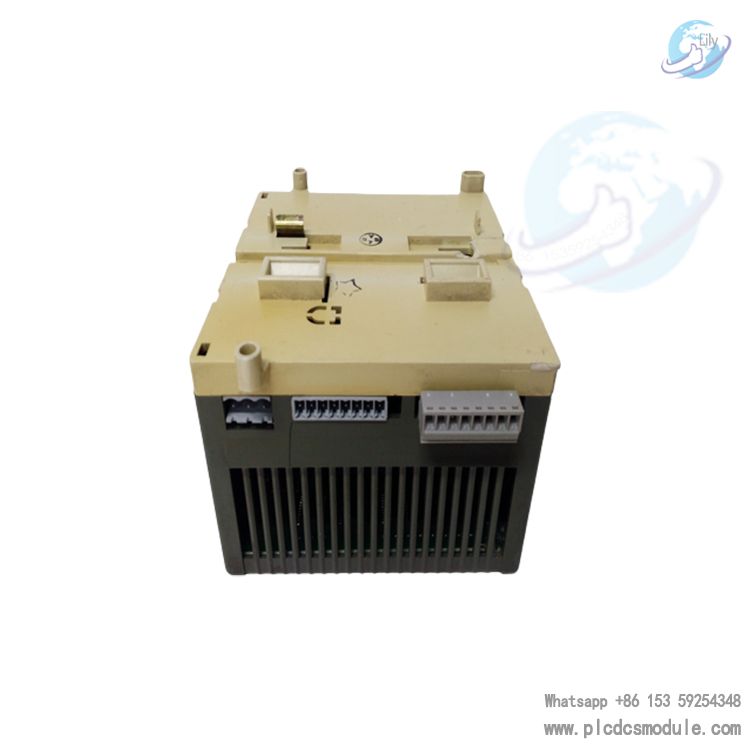

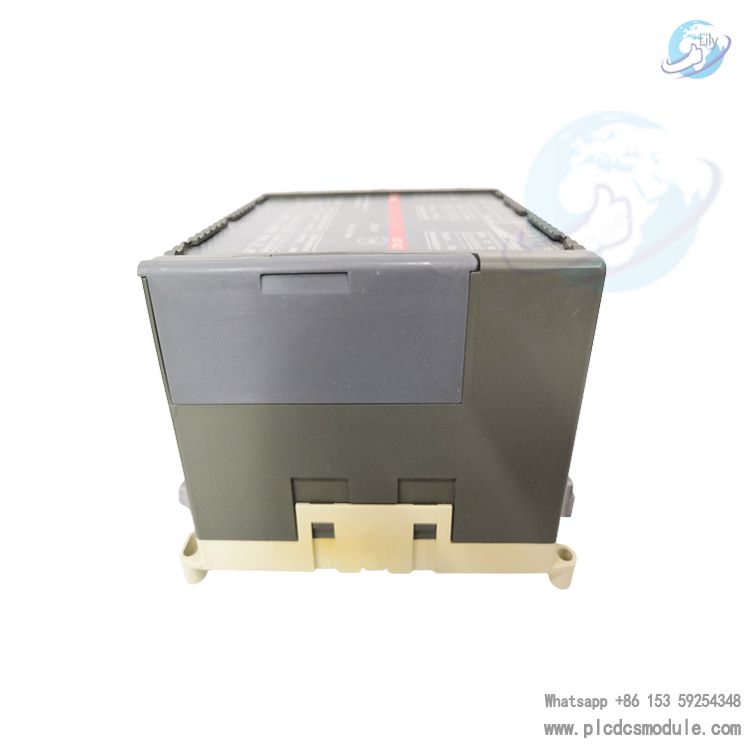

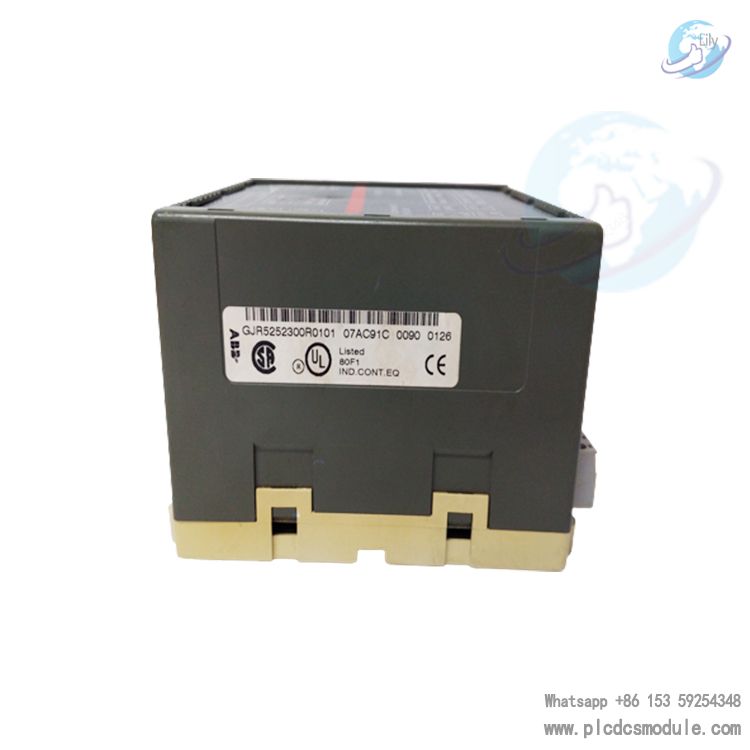

ABB 07AC91 GJR5252300R0101 Analog I/O module 07AC91D

The ABB 07AC91 GJR5252300R0101 analogue I/O module is a dedicated component designed for industrial automation and control systems, specifically for use with ABB's CS31 system bus. The module features a compact size, high operating voltage and versatility of configuration options, making it suitable for a wide range of applications requiring analogue input/output (I/O) functionality.(For more related products, please click：ABB)

Size and Weight: The module measures 16cm x 16cm x 12cm and weighs 0.8kg, ensuring that it can be easily integrated into a variety of industrial

environments without taking up too much space.

Operating Voltage: The operating voltage is 24VDC, which is standard for many industrial PLCs and HMIs, making it compatible with a wide range of

power systems.

Configuration Options: The module offers both "12-bit" and "8-bit" operating modes, allowing flexible configuration of I/O channels. In "12-bit" mode,

it supports 8 input channels and 8 output channels, each configurable to ±10V or 0...20mA with 12-bit resolution. In "8-bit" mode, all 16 channels can

be used, configured in pairs as inputs or outputs, with 8-bit resolution and a range of 0...10V or 0...20mA.

Galvanic isolation: The CS31 system bus connections are galvanically isolated from the rest of the module, enhancing safety and reliability by preventing

electrical interference or damage.

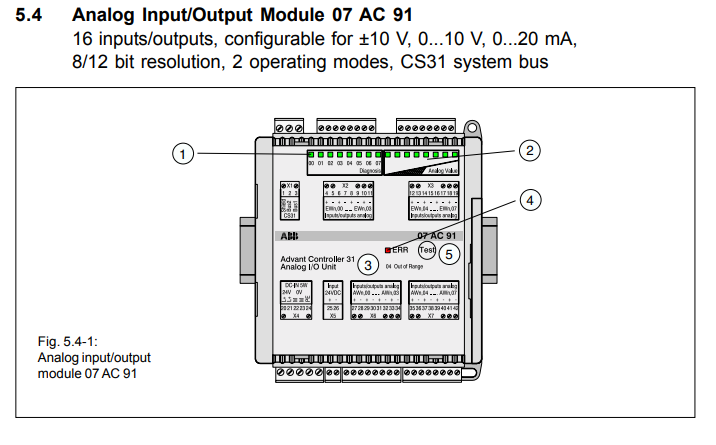

Analogue I/O channels: The module includes 16 analogue I/O channels that can be individually configured for a wide range of applications from simple

signal conditioning to complex sensor interfaces3.

Interconnection elements: The PLC provides interconnection elements ANAI4_20 for measuring 4...20mA signals, which is particularly useful for applications

requiring precise sensor readings or control signal conditioning.
