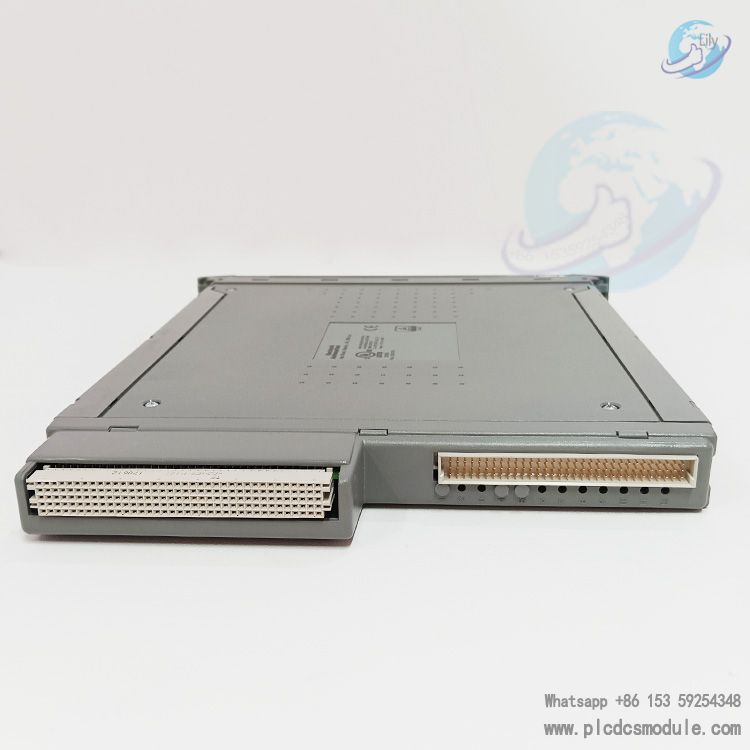

ICS TRIPLEX T8431 Trusted TMR 24Vdc Analogue Input Module.The ICS Triplex T8431 is a high-performance analog input module designed for industrial automation applications. It's part of ICS Triplex's Trusted TMR (Triple Modular Redundant) system.
Technical Specifications
System Supply Voltage Range: 24 Vdc ± 10%
Number of Inputs: 40
Input Current Range: 4-20 mA
Input Voltage Range: 0-24 Vdc
Resolution: 16-bit
Sample Update Time: 100 ms (configurable)
Safety Accuracy: ±0.5%
Calibration Accuracy: ±0.25%
Recommended Calibration Check Interval: 12 months
Operating Temperature Range: -20°C to +55°C
Non-operating Temperature Range: -40°C to +70°C
Operating Humidity: Up to 95% non-condensing 5
Dimensions: 266 mm (10.5 inches) H x 31 mm (1.2 inches) W x 303 mm (12 inches) D
Weight: 0.8 kg
Field Common Isolation: ±250 Vdc (sustained), ±2.5 kVdc (maximum withstanding)
Key Features
Triple Modular Redundancy: Each input channel has three independent measurement paths.
Fault Tolerance: Comprehensive automatic diagnostics and self-test capabilities.
Line Monitoring: Selectable line monitoring per channel to detect open circuit and short circuit field wiring faults.
Isolation: 2500V impulse withstand opto/galvanic isolation barrier.
Sequence of Events (SOE) Reporting: Onboard SOE reporting with 1 ms resolution.
Hot-swappable: Can be hot-replaced online using dedicated Companion Slot or SmartSlot configurations.

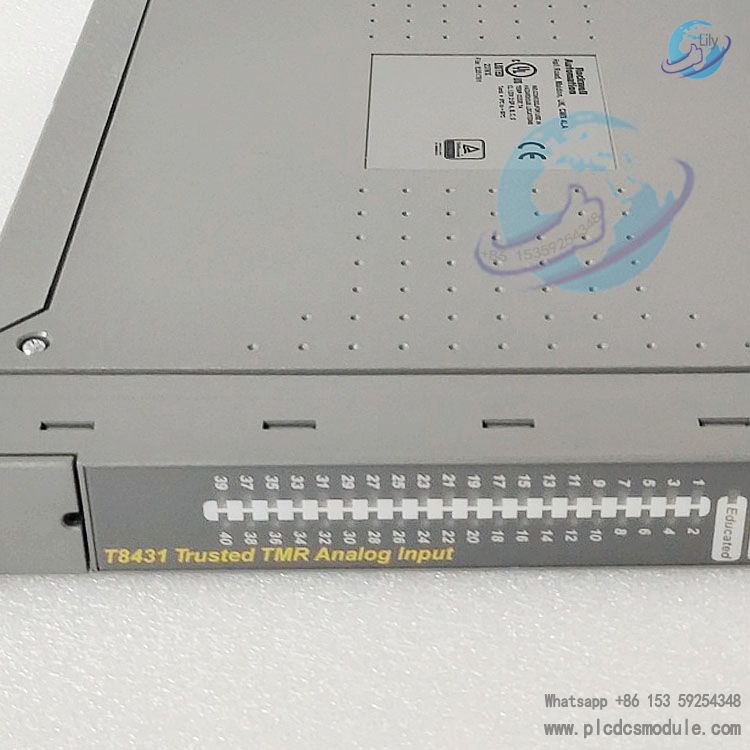

Status Indicators: Front panel input status LEDs for each channel and module status LEDs indicating health and operational mode.
Safety Certification: TÜV Certified IEC 61508 SIL.
Application areas：
The main application industries are: chemical, automotive, thermal power, steel, plastic, wind power,power plant, paper, steel, mine, rubber, water supply, cement, chemical, glass, printing textile, machinery, plastic, paint, medicine, hospital, food, hotel, scientific research institute, etc.
