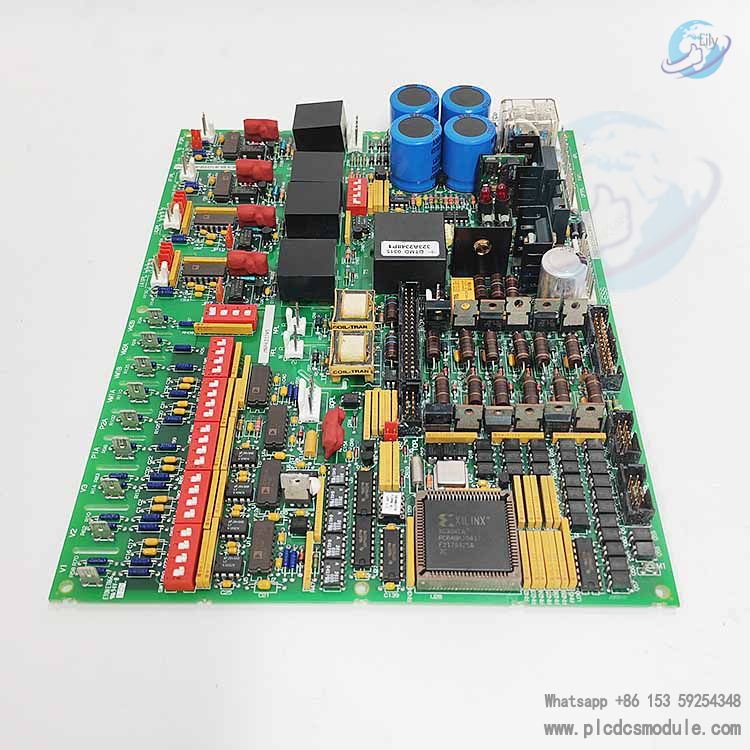

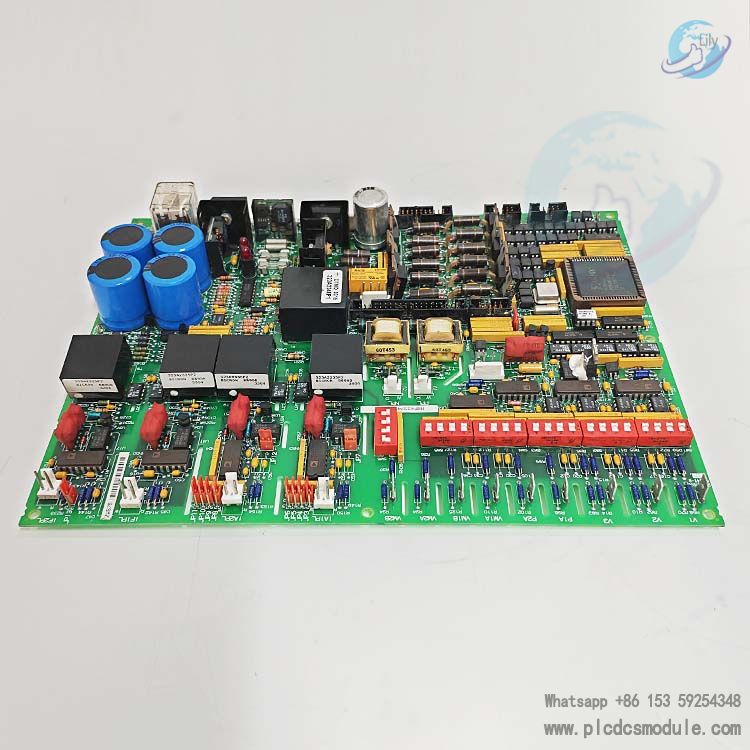

GE Fanuc DS200DCFBG2BNC MRP433745 Mark V DC Feedback Board.As a power supply board in the Mark V system of General Electric (GE), the DS200DCFBG2BNC relies on 18 plug connectors and 9 stab connectors to achieve its signal transmission function. These connectors are tasked with sending and receiving input and output signals. Working in tandem with other dedicated hardware on the DS200DCFBG2BNC printed circuit board, they jointly endow this product with the expected functions as a power supply board. In terms of layout, the stab connectors are centrally located in the upper left corner of the circuit board and are labeled as V1 to V3, P1A, P2A, VM1A, VM1B, VB2A, and VM2BA respectively; while the plug connectors are distributed across the entire circuit board, covering various specifications ranging from 2-pin male connectors to multi-pin connectors. Currently, this DS200DCFBG2BNC printed circuit board product launched by General Electric is already in a state of production discontinuation.

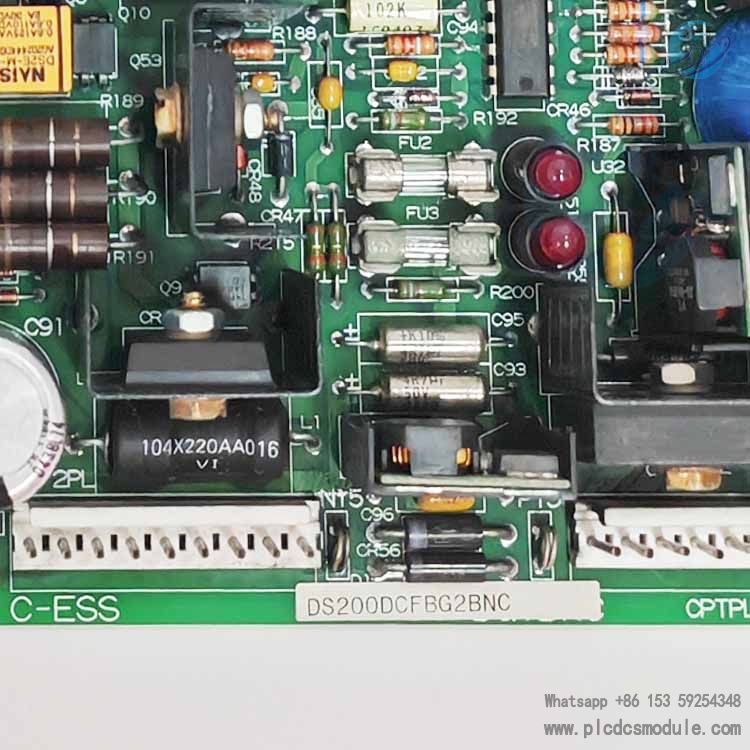

The DS200DCFBG2BNC is equipped with seven Dual In-line Package (DIP) switches, five TP test points, twelve jumpers, and three fuses. The fuses are used for power supply protection. If any of these fuses blows, the indicator lights will turn on. The indicator lights include two Light Emitting Diode (LED) lights and one neon indicator light. The DIP switches are used to select the AC line voltage, as well as the voltages applied to the DC bridge voltage feedback Voltage-Controlled Oscillator (VCO) circuit and the DC motor voltage feedback circuit. The DS200DCFBG2BNC is fitted with various components, including seven transformers, oscillating chips, one relay, more than fifty resistor network arrays, heat sinks, as well as various integrated circuits, capacitors, and resistors. This circuit board uses Carbon Composite Resistor (CCR) resistors and resistors made of metal film materials. For information such as the safety data of this product, please refer to the manuals and data sheets.
The DS200DCFBG2BNC power supply board is mainly applied in the following industries and fields:
Power Industry: In gas turbine and steam turbine power generation systems, the Mark V system is used to control the operation of the turbines. As a power supply board, the DS200DCFBG2BNC provides stable power supply for various components in the system, ensuring the precise control and efficient operation of the turbines, and guaranteeing the stable production of electricity.
Industrial Manufacturing Field: In some industrial production processes that require the drive of large-scale power equipment, such as the air compression systems in large factories and the large-scale stirring equipment in chemical production, if gas turbines or steam turbines are used as the power source, the Mark V system can control the turbines through components like the DS200DCFBG2BNC to meet the power demands of industrial production.
Energy Management Field: For some integrated energy systems, such as places that have both power generation equipment and energy storage and distribution systems, the Mark V system where the DS200DCFBG2BNC is located can be used to coordinate the operation of different energy equipment, so as to achieve the optimized management and distribution of energy.
