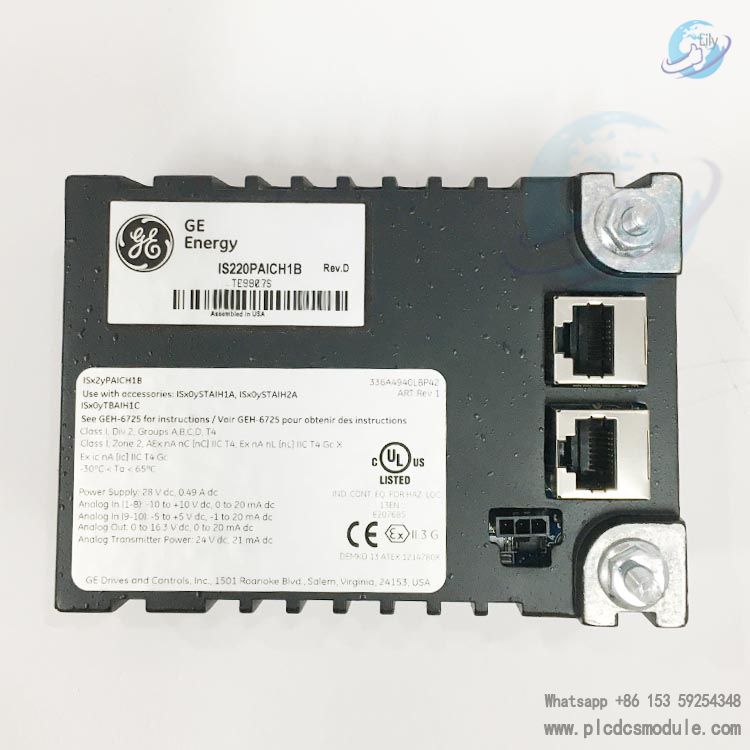

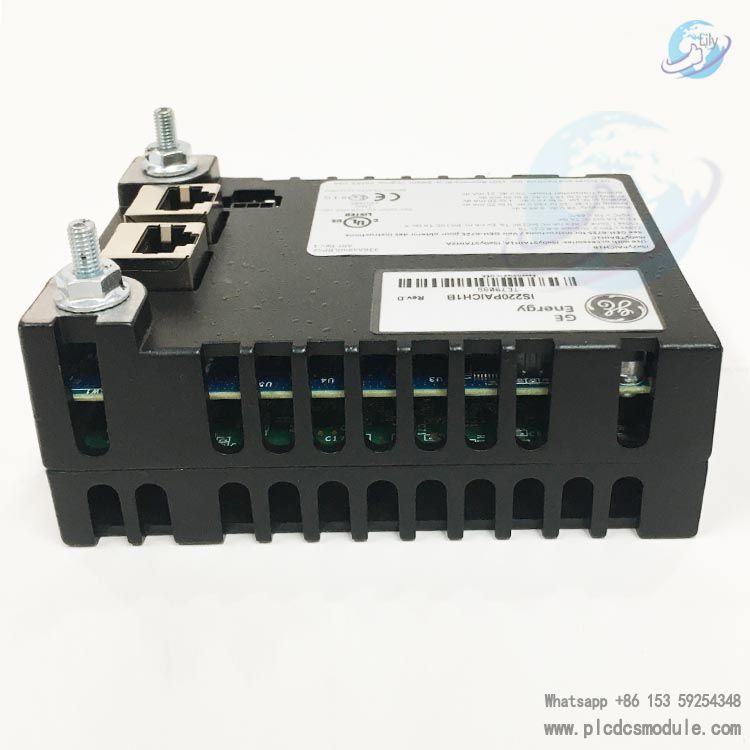

GE IS220PAICH1B Mark VIe IO Pack Analog In/Out Basic.The IS220PAICH1B IO Pack Analog In/Out Basic is an analog input/output module manufactured by General Electric (GE) and is used in the Mark VIe series control systems.
Functional Features
High-speed network connection: It is compatible with the GE Speedtronic Mark VIe series, providing high-speed network I/O for simplex, duplex, and triple redundant systems.
Analog signal processing: It digitizes sensor signals and feeds them to the controller, offering essential analog input and output functions. It can measure and control various process variables such as temperature, pressure, flow, and vibration.
Ethernet connection: It is equipped with dual 100Mbps full-duplex Ethernet ports for reliable and fast communication within the system.
Multi-PCB module design: It consists of various PCBs with a multi-layer design, which enhances performance and reliability.
Technical Specifications
Input and output channels: Usually has 16 input channels and 8 output channels.
Input and output range: The input range includes various options such as 0 - 5V, 1 - 5V, 0 - 10V, -5 - 5V, -10 - 10V, etc. The output range is similar to the input range, including 0 - 5V, 1 - 5V, 0 - 10V, -5 - 5V, -10 - 10V, etc.
Accuracy and resolution: The accuracy can reach ±0.1%, and the resolution is 16 - bit.
Sampling rate: 1000 samples per second.
Power requirements: The supply voltage is generally 24V DC, and the power consumption is 5W.
Operating temperature: 0 - 70°C.
Dimensions and weight: The dimensions are approximately 170×110×45mm, and the weight is about 1kg.
