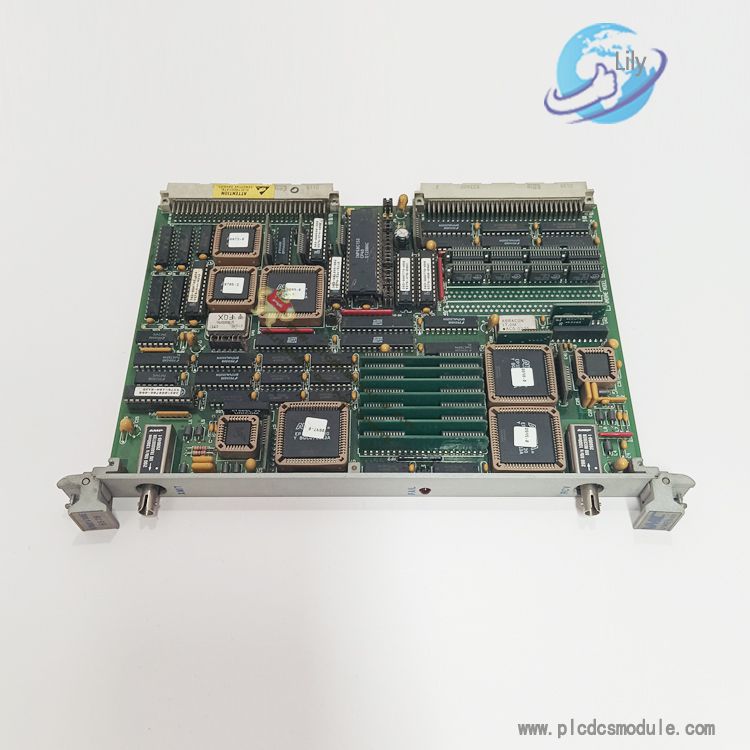

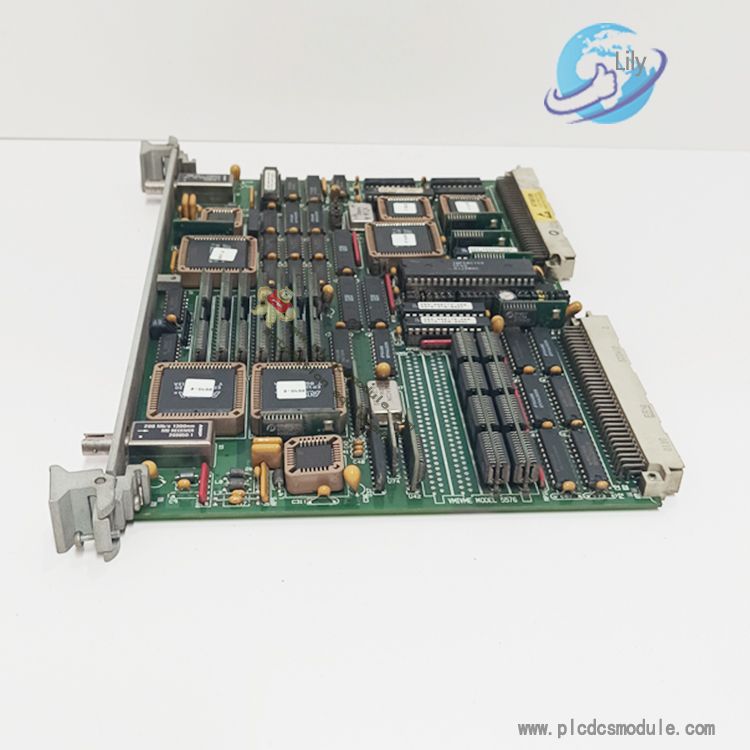

GE VMIVME-5576 is a high-performance, multidrop VME-to-VME network. Data is transferred by writing to on-board global RAM. The data is automatically sent to the location in memory on all Reflective Memory boards on the network.The Reflective Memory concept provides a very fast and efficient way of sharing data across distributed computer systems. VMIC’s VMIVME-5576 Reflective Memory interfaceallows data to be shared between up to 256 independentsystems (nodes) at rates up to 6.2 Mbyte/s. Each ReflectiveMemory board may be configured with 256 Kbyte to 1 Mbyteof on-board SRAM. The local SRAM provides fast Readaccess times to stored data. Writes are stored in local SRAMand broadcast over a high-speed fiber-optic data path to otherReflective Memory nodes. The transfer of data between nodesis software transparent, so no I/O overhead is required.Transmit and Receive FIFOs buffer data during peak datarates to optimize CPU and bus performance to maintain highdata throughput.
To learn more about this product click on the file below or download the file:
VMIC GE Fanuc VMIVME5576 Fiber-Optic Reflective MemoryVMIVME-5576.pdf
VMIC/GE Fanuc VMIVME5576 Fiber Optic Reflective Memory Features：
• High-speed, easy-to-use fiber-optic network (170 Mbaud serially)
• Data written to memory in one node is also written to memory in all nodes on the network
• Up to 2,000 m between nodes and up to 256 nodes
• Data transferred at 6.2 Mbyte/s without redundant transfer
• Data transferred at 3.2 Mbyte/s with redundant transfer
• Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
• Error detection
• Redundant transmission mode for suppressing errors
• No processor overhead
• No processor involvement in the operation of the network
• Up to 1 Mbyte of Reflective Memory
• A24:A32:D32:D16:D8 memory access
• Single 6U VMEbus board
