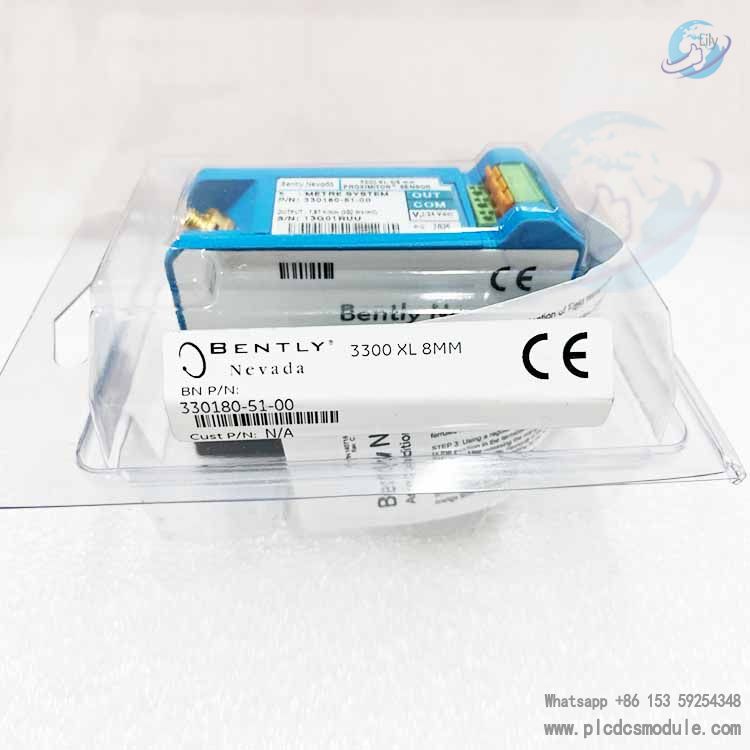

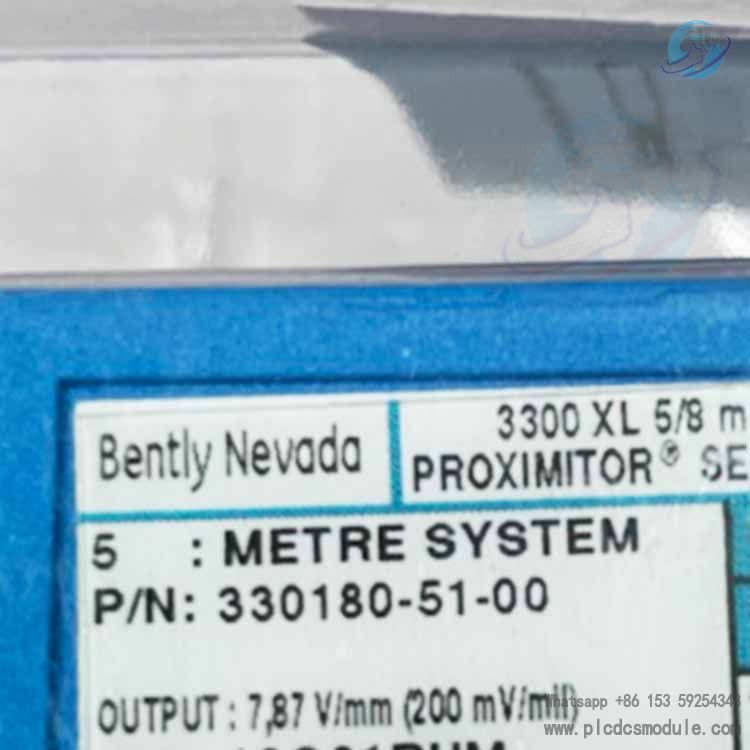

Bently Nevada 330180-51-00 3300XL Proximitor Sensor.The Bently Nevada 330180-51-00 is a specialized proximity sensor component within the 3300 XL Transducer System.
Technical Parameters:
Sensor Type: Proximitor sensor, which is good at precisely measuring distances.
Sensor Range: 5/8 mm, suitable for distance detection requirements in a variety of specific industrial scenarios.
Weight: 0.2 kg. The lightweight design facilitates installation and system integration, without imposing excessive load on the overall equipment.
Dimensions (Height × Width × Depth): 7.4 x 3.6 x 3.3 cm. The compact shape can adapt to various installation environments with space limitations.
Operating Temperature Range: - 40 °C to 85 °C. Some models can withstand high temperatures up to 175 °C, enabling stable operation in extreme temperature environments and meeting the temperature requirements of different industrial scenarios.
Power Supply: 12 - 14 vdc. In some technical specifications, it is shown as 24 vdc, depending on the actual application and configuration.
Signal Output: It has dual output options of 0 - 10 vdc and 4 - 20 ma, providing flexibility for system integration. It can be adapted to the interface requirements of different devices and control systems.
Sensitivity: 50 mv /mil (2 mv / µm), capable of accurately sensing tiny distance changes and providing high - precision data for equipment operation status monitoring.
Frequency Response: 5 hz to 10 khz, able to respond quickly to dynamic changes and promptly capture dynamic information such as vibrations during equipment operation.
Cable Length: 1 meter (3.3 feet). Different lengths of extension cables can be selected for adaptation according to actual installation requirements.
data sheet:
3300_XL_8_mm_Proximity_Transducer_System_Datasheet.pdf
Application Areas
Turbine Monitoring Instruments: During the operation of turbines, it can monitor parameters such as turbine vibration and position in real - time, ensuring the stable and efficient operation of turbines and preventing shutdown accidents caused by equipment failures.
Gas and Steam Turbines: It accurately measures the clearances and vibrations of turbine components, providing key data support for the safe operation and maintenance of turbines, and ensuring the stability and efficiency of the energy conversion process.
Compressors: It is used to monitor the operating status of compressors. By detecting parameters such as the vibration and displacement of the compressor shaft, potential fault hazards can be detected in a timely manner, ensuring the reliable operation of compressors and improving production efficiency.
Pump Equipment: It monitors the position and vibration of the pump shaft in real - time, avoiding problems such as abnormal wear and cavitation during the operation of the pump, extending the service life of the pump, and ensuring the normal water supply or transportation of other media in the pump system.
Motors: It monitors the position and vibration of the motor rotor, and timely detects signs of faults in the operation of the motor, such as rotor imbalance and bearing damage, ensuring the stable operation of the motor and improving the working efficiency and reliability of the motor.
Fans: It monitors the vibration and position of fan blades, ensuring the smooth operation of fans, avoiding unstable air volume or equipment damage caused by blade failures, and ensuring the normal operation of the ventilation system.
Other Key Machinery and Equipment: It is widely used in various key machinery and equipment with high requirements for equipment operation status monitoring, providing accurate data support for the stable operation, maintenance management and fault early warning of equipment, and ensuring the continuity and stability of the industrial production process.
