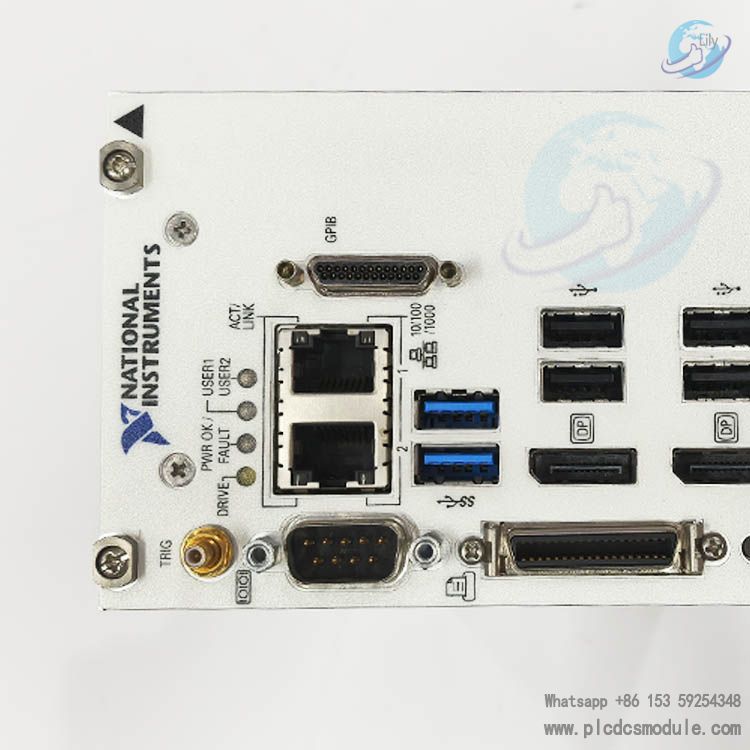

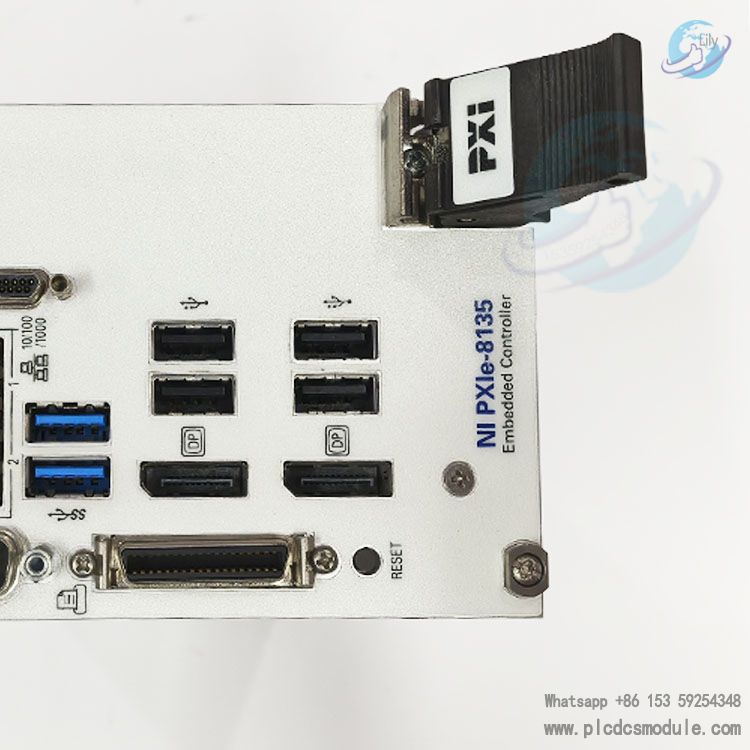

NI PXle-8135 2.3 GHz Quad-Core Embedded Controller for PXI Express.The NI PXIe-8135 is a high-performance Intel Core i7-3610QE processor-based embedded controller for PXI Express systems. With the 2.3 GHz base frequency, 3.3 GHz (single-core Turbo Boost) quad-core processor, and dual-channel 1600 MHz DDR3 memory, the NI PXIe-8135 is ideal for processor-intensive, modular instrumentation, and data acquisition applications.
Specification:
Intel Core i7-3610QE quad-core processor (2.3 GHz (base), 3.3 (single-core Turbo Boost))
Up to 8 GB/s system, up to 4 GB/s slot bandwidth
4 GB (1 x 4 GB DIMM) dual-channel 1600 MHz DDR3 standard, 16 GB (2 x 8 GB DIMM) maximum

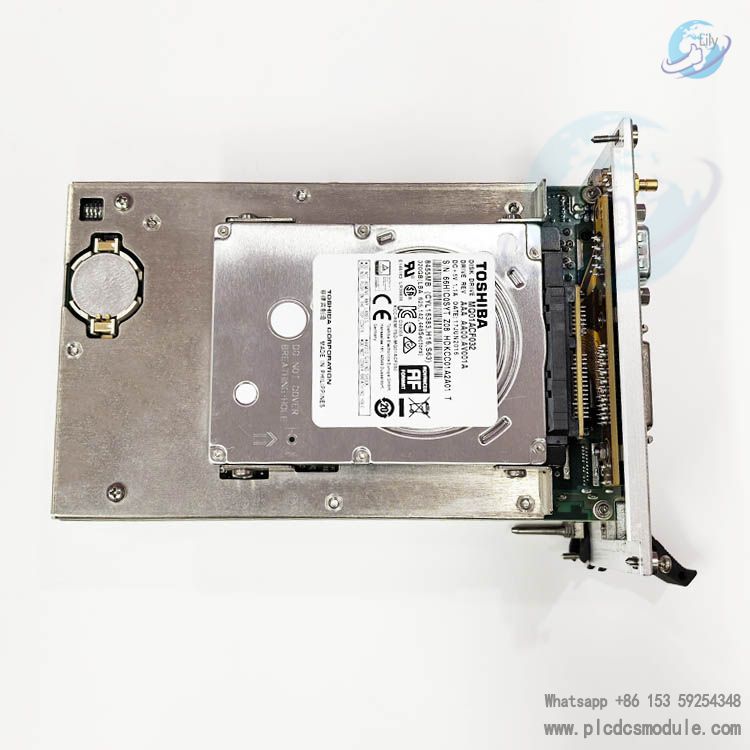

High-performance 7200 rpm integrated hard drive with standard option
Six USB ports - 2 SuperSpeed USB, 4 Hi-Speed USB
Two 10/100/1000BASE-TX Ethernet ports
Other peripherals (GPIB (IEEE 488) controller, RS232 serial port, and IEEE 1284 ECP/EPP parallel port)
In-ROM memory and hard drive diagnostics
Software-already installed OS and drivers and hard-drive-based recovery image
Complete PXI system configuration at ni.com/pxiadvisor
