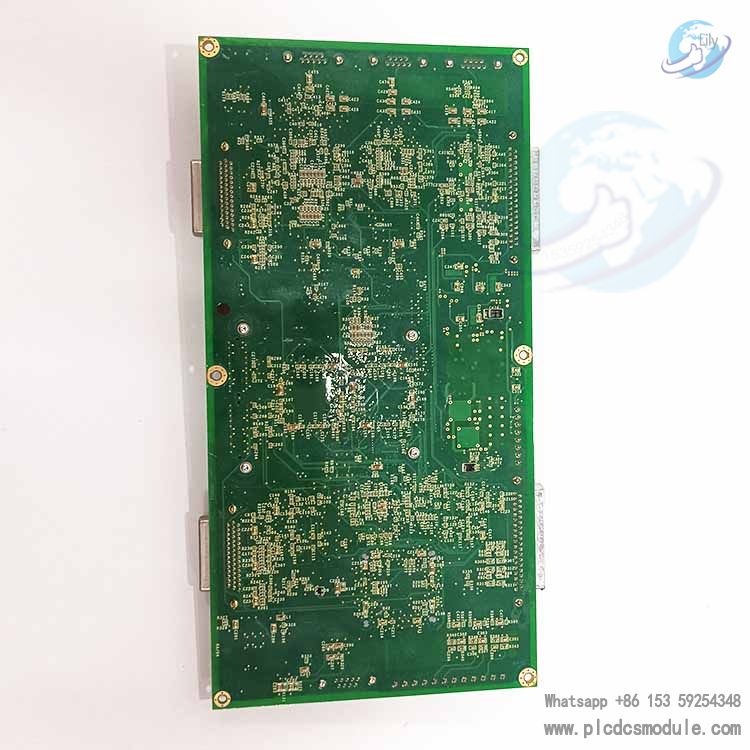

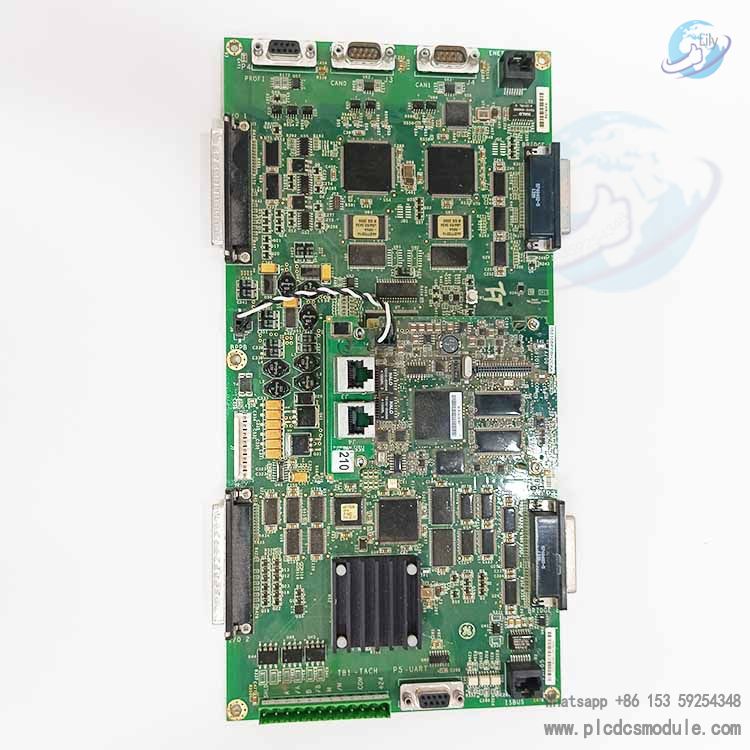

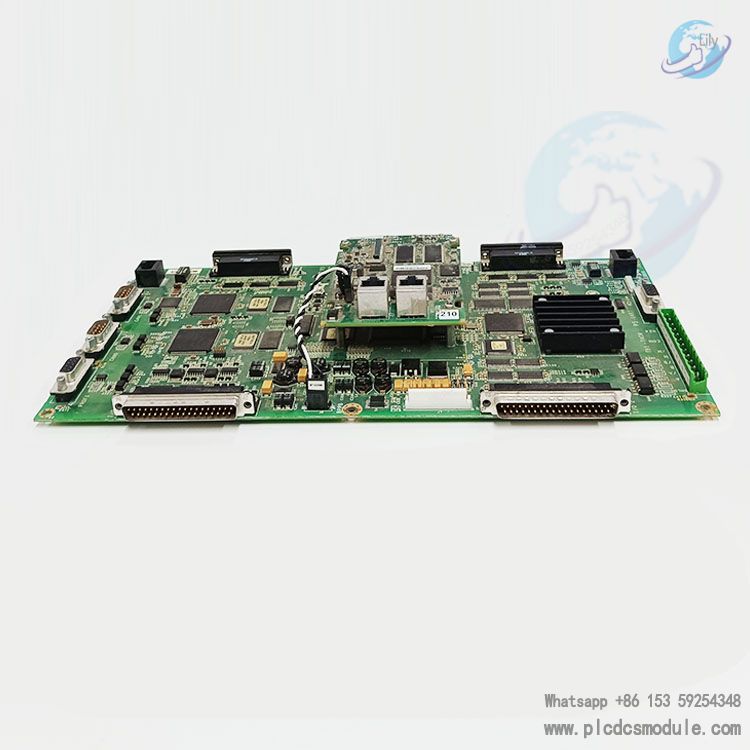

GE IS210MACCH1AGG Controller communication board.This is IS210MACCH1AGG a controller communication board manufactured by General Electric (GE) .It is part of the Mark VI system, which was released by GE in the 1990s under the name "Speedtronic" as a gas/steam turbine management program .
Specifications
The board is designed for use in the Mark VI system, which features on-board diagnostics, programmable software maintenance tools, and a Windows-based PC HMI (Human Machine Interface) .
The Mark VI is powered by either a 125 Vdc battery system or a 120/240vac power source rectified to 125Vdc .
Features and Components
The board has seven built-in fuses and four transformers .
There are six terminal blocks and over 25 test points on the board .
The board includes various components such as coil inductors, resistors, relays, diodes, capacitors, and integrated circuits .
Three edges of the board have voltage regulator lines arranged parallel to them, with over 100 voltage regulators present .
Connectors and Interfaces
The board has multiple connectors, including:Six terminal blocks
Over 45 plugs or connectors (including conductive connectors, vertical pin connectors, and female headers)
Most female plugs are placed along the edge of the circuit board, ranging from positions 2 to 20
Usage and Applications
This board is likely used in industrial automation systems, particularly those requiring high-performance control capabilities for gas/steam turbines .
It can be part of larger GE Speedtronic Mark VI system configurations for various manufacturing, process control, or turbine management applications.
