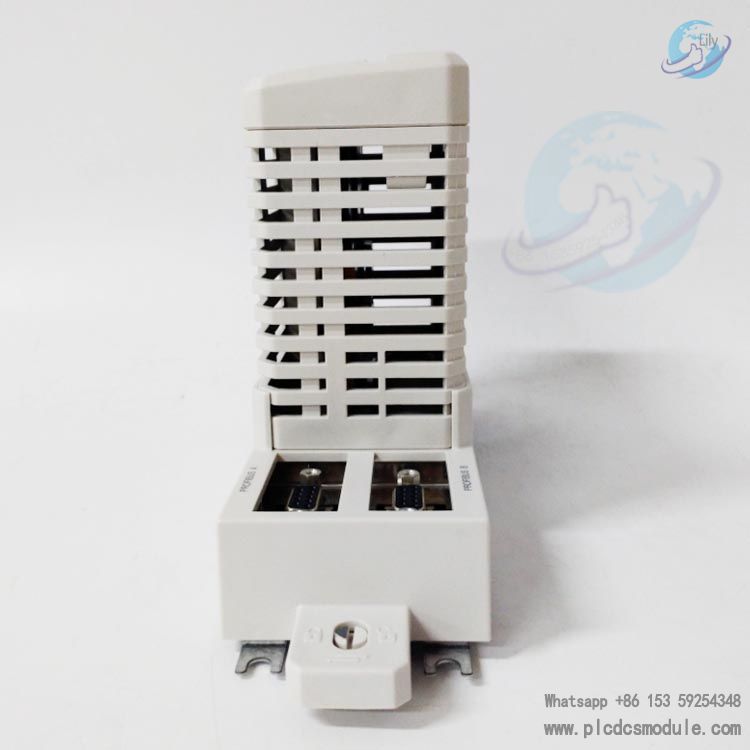

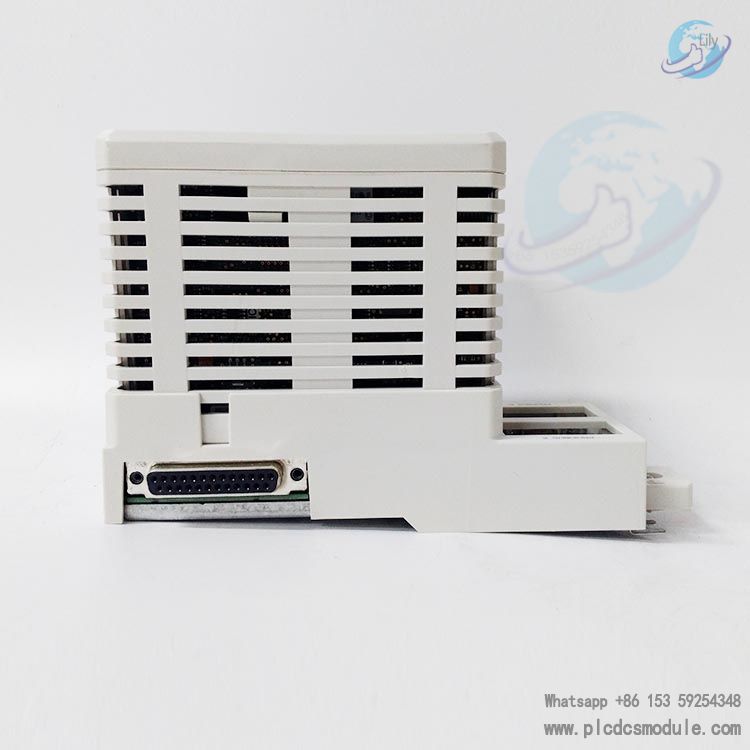

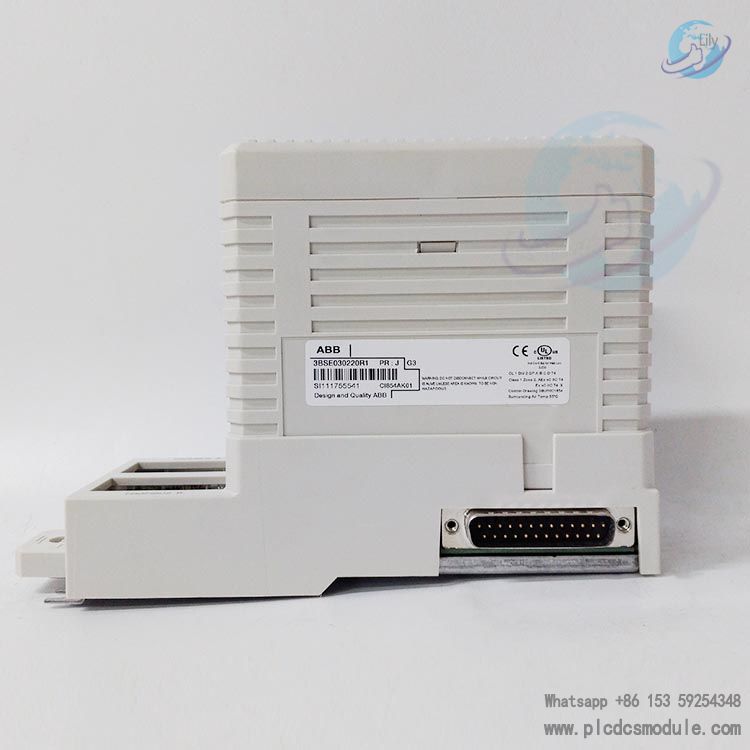

ABB CI854AK01 3BSE030220R1 Communication Module AC 800M.The ABB CI854AK01 3BSE030220R1 is a PROFIBUS DP-V1 communication module designed for use with ABB's AC 800M distributed control system. It serves as an interface between the AC 800M controller and PROFIBUS DP devices.
Technical parameter
Module model: CI854AK01
Order number: 3BSE030220R1
Communication protocol: PROFIBUS DP V0/V1
Data rate: Up to 12 Mbps
Maximum number of slave stations: 125 slave stations
Connection port:
Two PROFIBUS interfaces
Use 9-pin D-sub interface for connection
Configuration tool: ABB Control Builder M or Automation Builder
Operating temperature: -25°C to +70°C
Protection level: IP20
Power requirement: Powered by the rack
Weight: 0.8 kg
Size: 16*16*12cm
Country of origin: India (IN)
Datasheet download:
ABB CI854AK01 3BSE030220R1 Communication Module AC 800M.pdf
CI854AK01 3BSE030220R1 Key features:
High-speed multi-purpose bus protocol (up to 12 Mbit/s) for field device interconnection.
Compatible with remote I/O, drives, low-voltage electrical devices and controllers.
Supports line redundancy and PROFIBUS master redundancy.
Can be combined with CPU redundancy and CEXbus redundancy (BC810).
Mounts directly to DIN rails and connects to the S800 I/O system and other compatible I/O systems
Usage and Benefits
Used for connecting remote I/O and fieldbus instruments via PROFIBUS DP.
Possible to connect PROFIBUS PA to the CI854A/Ci854B via the PROFIBUS linking device LD 800P.
