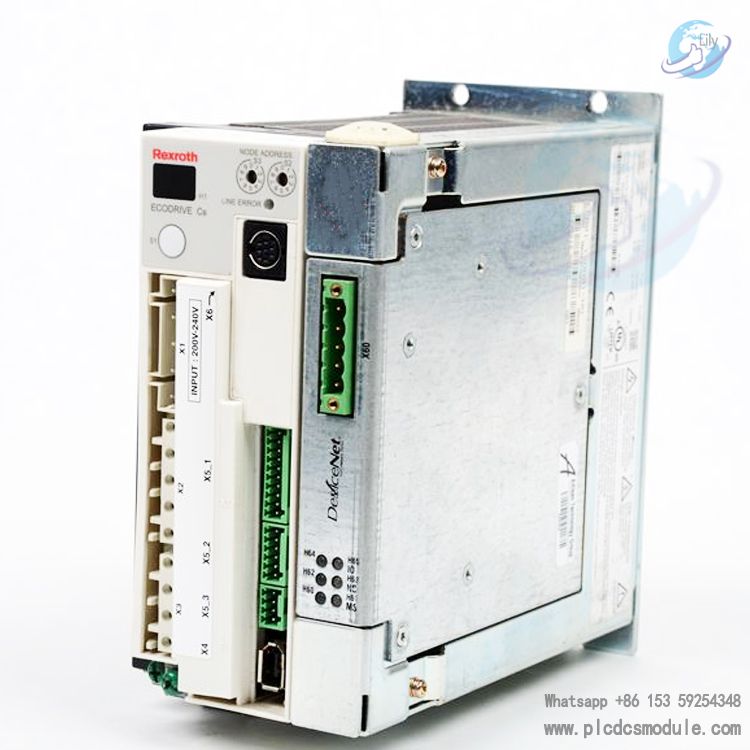

The DKC10.3-018-3-MGP-01VRS is an Indramat ECODRIVE drive controller manufactured by Bosch Rexroth. It is part of the Indramat ECODRIVE series, which is known for providing highly efficient and precise control of electrical drives in industrial automation applications. The DKC10.3 series is widely used in applications such as robotics, CNC machinery, packaging machines, material handling, and other automation systems.
Key Features of the REXROTH DKC10.3-018-3-MGP-01VRS Indramat ECODRIVE Drive Controller:
High-Performance Drive Control:
The DKC10.3-018-3-MGP-01VRS drive controller is designed to control three-phase AC motors (synchronous or asynchronous) with high precision, providing excellent torque and speed control over a wide range of operating conditions.
It supports both position control and velocity control modes, making it suitable for both constant speed and dynamic motion control applications.
ECODRIVE Technology:
The Indramat ECODRIVE series is recognized for its energy-efficient operation, offering significant energy savings through optimized drive control algorithms and the use of high-quality, highly efficient power electronics.
The ECODRIVE technology features integrated power supply and intelligent energy management, which helps reduce operational costs and minimize the environmental impact.
Advanced Control Features:
The DKC10.3 drive controller integrates advanced digital signal processing (DSP) and control algorithms to provide precise and stable control of motors under a wide variety of operating conditions.
The controller allows for fine-tuning of drive parameters to match the specific needs of the application, ensuring the best possible performance.
Features such as field-oriented control (FOC) and vector control provide high precision and smooth operation, even at low speeds or during rapid acceleration/deceleration.
Modular and Flexible Design:
The DKC10.3-018-3-MGP-01VRS is part of the Indramat ECODRIVE modular drive system. This allows for easy integration and expansion by adding additional modules, such as I/O modules, feedback encoders, and other control components, depending on the complexity of the application.
It can be combined with various types of motor feedback devices (such as sin/cos encoders, incremental encoders, and absolute encoders) to suit specific system needs.
Communication and Integration:
The DKC10.3 drive controller is capable of integrating with higher-level automation systems via standard communication protocols, such as CANopen, Profibus, or EtherCAT.
It supports integration with programmable logic controllers (PLCs) and industrial PCs (IPC) to facilitate centralized control and monitoring of the entire system.
The drive controller can be connected to HMI (Human-Machine Interface) panels for local control, status monitoring, and troubleshooting.
Safety Features:
The DKC10.3 series integrates built-in safety features, such as safe torque off (STO), which ensures that the drive will not output torque in the event of a system fault or emergency shutdown.
Additional safety features, such as Safe Stop 1 (SS1) and Safe Operating Stop (SOS), can be integrated with external safety systems to comply with international safety standards (such as ISO 13849 and IEC 61508).
Compact Design:
The DKC10.3-018-3-MGP-01VRS drive controller is compact and space-efficient, designed to minimize the overall system footprint.
This makes it ideal for integration into systems with limited space, such as industrial robots or compact machinery.
Real-time Monitoring and Diagnostics:
The controller supports real-time diagnostics and monitoring of motor performance, including motor temperature, speed, torque, and current draw.
It also provides detailed fault diagnostics and status indicators that help operators quickly identify issues and reduce downtime.
The drive can be monitored remotely using compatible fieldbus communication protocols, allowing for predictive maintenance and efficient troubleshooting.
User-friendly Configuration:
REXROTH provides software tools like IndraWorks and IndraDrive for configuring, tuning, and maintaining the DKC10.3 drive controller. These tools allow engineers to easily set up and optimize drive parameters, perform system diagnostics, and upload/download firmware.
