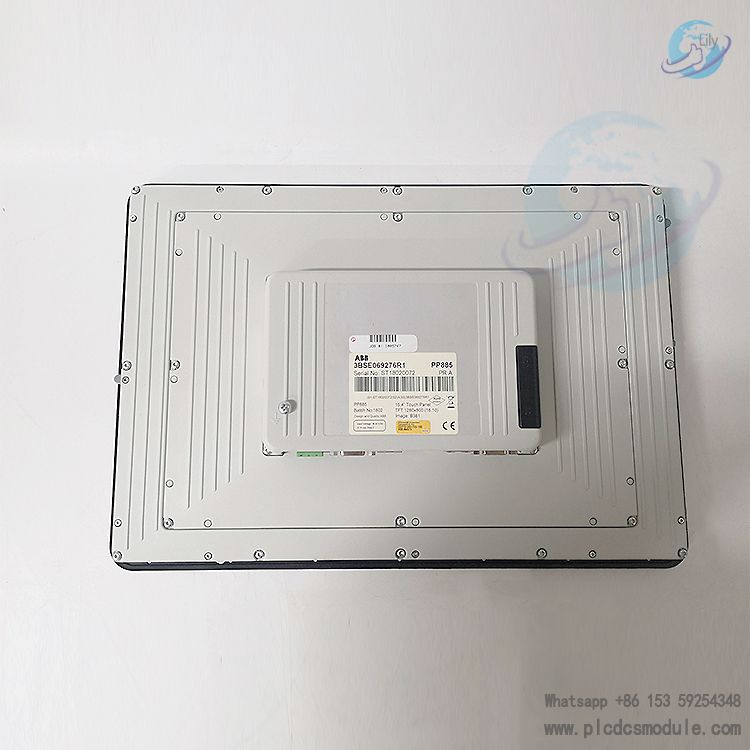

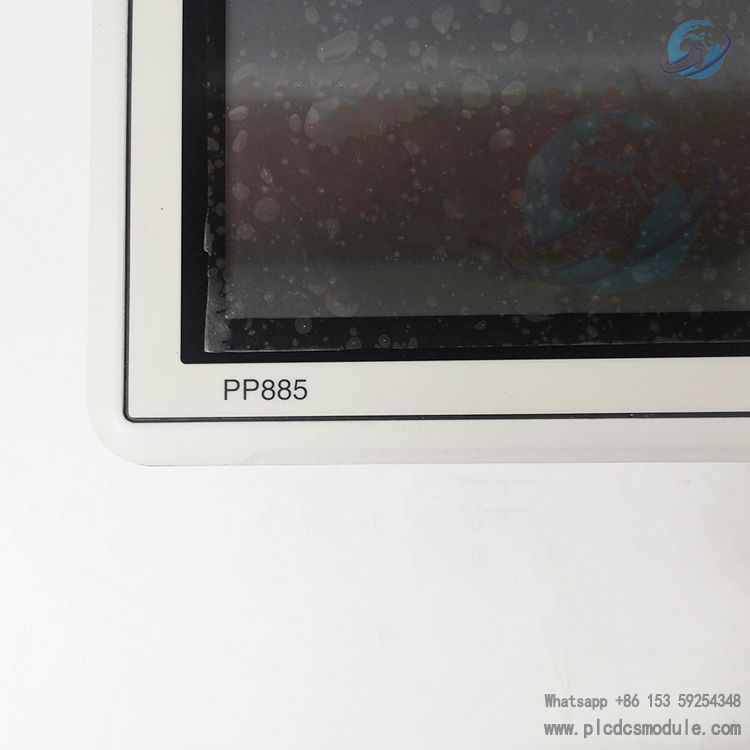

ABB PP885M touch panel 15.4'' Panel 800 Specification:
Display：15.4"

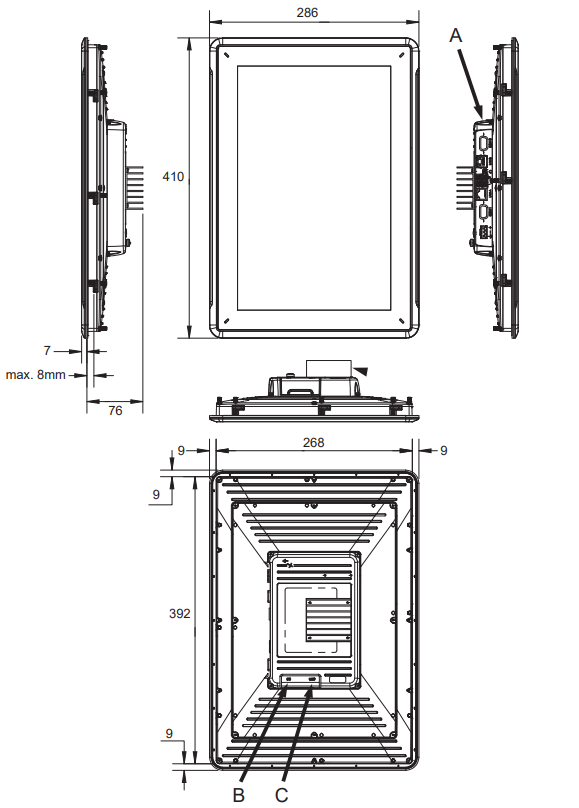

Front panel,W×H×D：410 × 286 × 7 mm
Cut out dimensions,W×H：394 ± 1 mm × 270 ± 1 mm. Maximum corner radius: 4 mm.
For IP54 or greater/NEMA-4X, panel must maintain a flatness
< 1 mm overall and < 0.05 mm/mm with a surface roughness,
Ra < 1.6 μm.
Mounting depth：76 mm (176 mm including clearance)
Front panel seal ：IP 65, NEMA-4X
Rear panel seal： IP 20
Touch screen material：Polyester on glass, resistive.
Touch screen operations：5 million finger touch operations
Reverse side material：Powder-coated aluminum
Frame material：Powder-coated aluminum
Weight：4.39 kg
To learn more about this product click on the file below or download the file:
ABB PP885M touch panel 15.4'' Panel 800 .pdf
Designed to improve the visualisation of process applications, the Panel 800 series is part of ABB's compact product suite for building customised distributed control systems (DCS).
