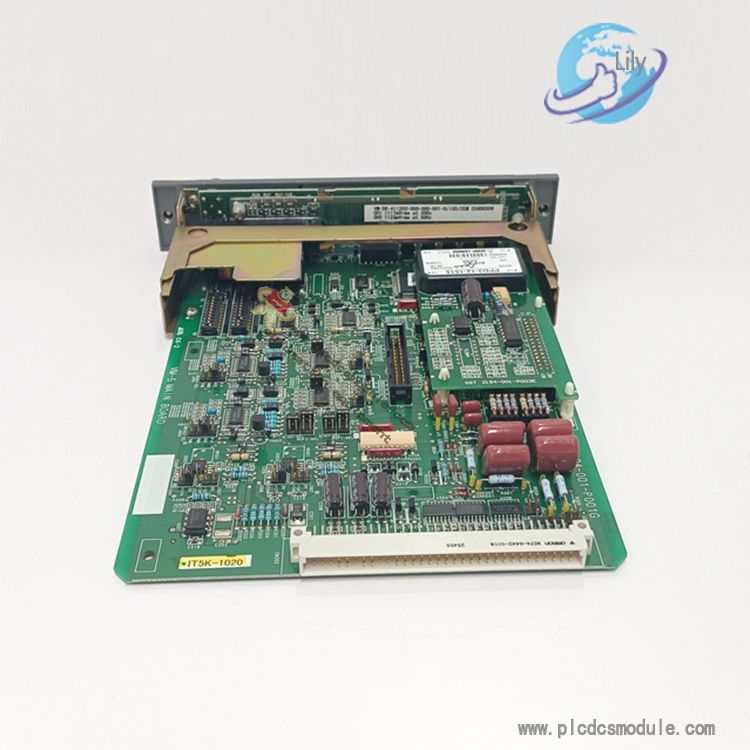

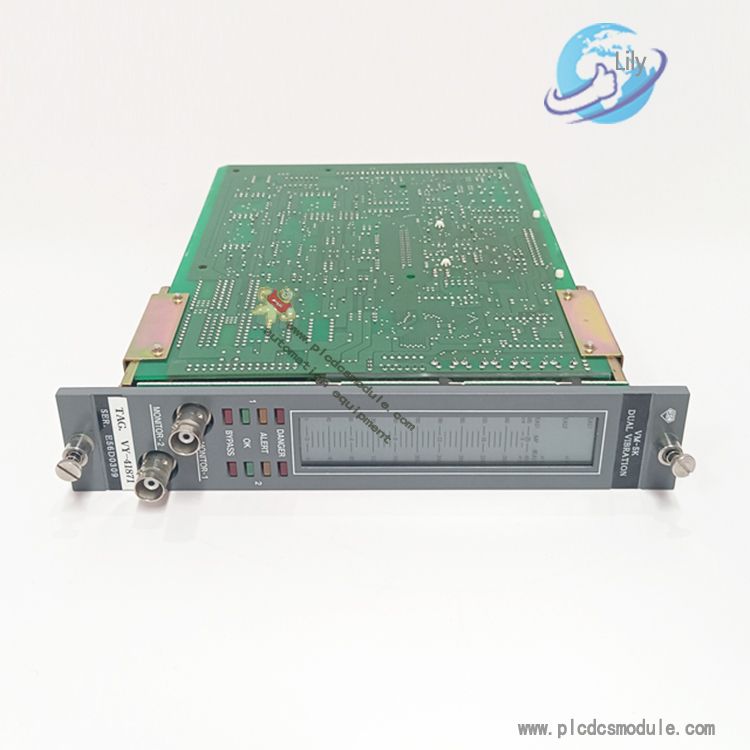

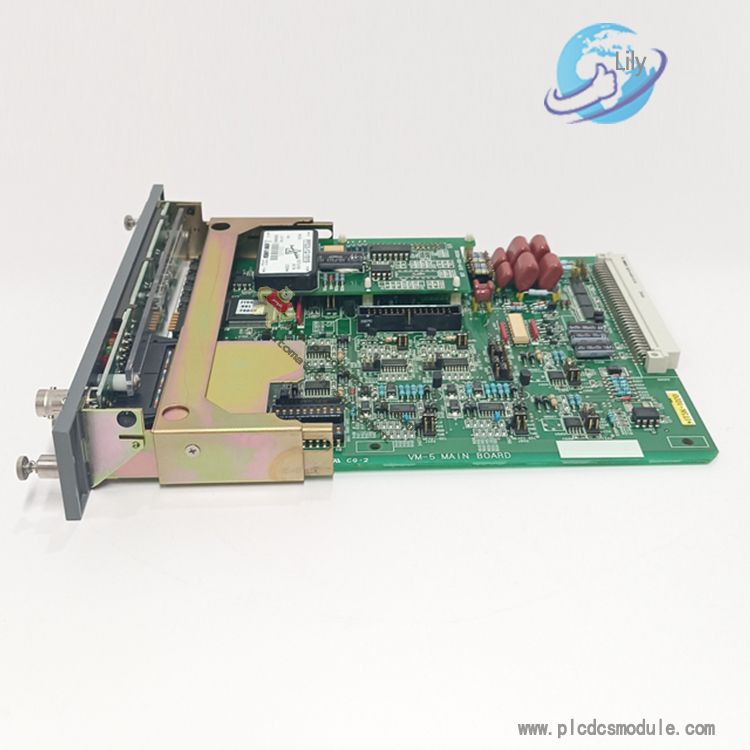

SHINKAWA VM-5K SST-2194-001-P001G Dual Vibration Monitor is a precision device designed to monitor vibration in a wide range of applications to ensure safety and reliability.SST-2194-001-P001G is part of the VM-5 series with advanced vibration analysis and detection capabilities.
SHINKAWA VM-5K SST-2194-001-P001G Main specifications and functions:
ALARM SET POINTS: 4 points (DANGER1, ALERT1, DANGER2, ALERT2) are provided with customizable alarm levels.
Monitor Outputs: Provides outputs via buffer amplifiers with signal levels ranging from -0.8 to -22VDC (VK) and 0 to 5VDC (VC).
Alarm Setting Range: Allows alarms to be set from 0 to 110% of the monitored range with an accuracy of ± 1.0% of full scale (FS) or less.
Temperature Range: 0 to 65°C (32 to 149°F) for operating ambient temperature and -30 to +85°C (-22 to +185°F) for storage temperature.
Humidity Supports relative humidity levels of 20% to 95% (non-condensing).
Repeatability Repeatability at or below ± 0.1% of FS.
Alarm Outputs: Up to 5 or 6 points (DANGER1, ALERT1, ALERT2, DANGER2, OK, OK1, OK2) depending on application requirements.
Material and finish: Aluminum panel with Monocer N-4.0 coating.
Mass Maximum weight 0.7 kg (1.6 lbs).
MEASUREMENT DISPLAY: LCD bargraph with 40 segments and backlighting for clear display of measured values and alarm settings.
SHINKAWA VM-5K SST-2194-001-P001G DUAL VIBRATION MONITOR
