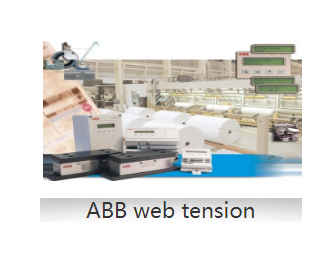

ABB indenter, with stable performance and reliable quality, is widely used in papermaking, metallurgy and other occasions that require high-precision tension control, and can be accurately selected according to the measuring range, installation form, and application occasions.
1. Measuring Principle
Pressure head (English name: pressure head, load cell) is a welding steel device, generally there are two types of pressure head: horizontal type and vertical type. When the strip passes through the tensile roller at a certain wrap angle, the strip tension T will produce two components, one is the vertical component FV and the other is the horizontal component FH. If we choose the horizontal type of pressure head, we can measure FH; if we choose the vertical type of pressure head, we can measure FV. In addition, the wrap angle of the measuring roller and the strip can be obtained, so that we can calculate the tension of the strip. The tension of the strip can be calculated by measuring the wrap angle of the roll and the strip.
Product range
ABB Indenter, ABB Tension Sensor, ABB Tensiometer, ABB Pressure Measuring Element, ABB Force Measurement, ABB Tension Measuring System, ABB Tension Measuring Instrument, ABB LOAD CELL, with stable performance and reliable quality, are widely used in papermaking, metallurgy and other occasions that require high-precision tension control, according to the different measuring range, installation form and application occasions, Aizawa Industrial can precisely Aizawa can accurately select the type according to the measuring range, installation form and application.
Specific Model
1、Model:PFEA111
Description:Conventional control unit, capable of connecting 2 pressure heads, according to the different application environments, there are IP20 and IP65 levels of protection, PLC interface signal for 0-10V DC, a variety of calibration and range parameters can be set on-site.

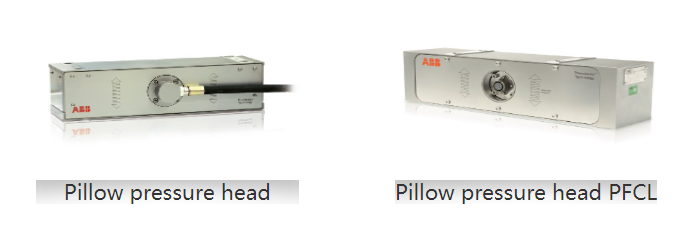

2、Model:PFCL201C
Description:Pillow block tensiometer vertical pressure measuring element, using cylindrical plug connection; force range: 5 ~ 50KN.
3、Model:PFCL201CD/CE
Description:Pillow block type tensiometer vertical pressure measuring element, using cable sealing connector/fixed cable connection with protective hose, measuring force range:5~50KN.

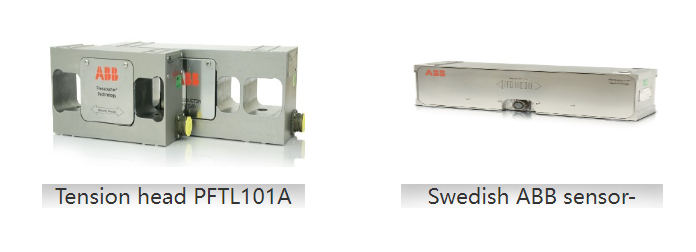

4、Model:PFTL101A
Description:Pillow block type tensiometer horizontal pressure measuring element, cylindrical plug connection, force range: 0.2~2KN.
5、Model:PFTL101AE
Description:Pillow block tensiometer horizontal pressure element, fixed cable connection, force range:0.2~2KN.
6、Model:PFTL101AER
Description:Acid-resistant pillow block tensiometer horizontal pressure element, fixed cable connection, force range: 0.2~2KN. Used for paper wet-end tension measurement, protection class up to IP66/67.

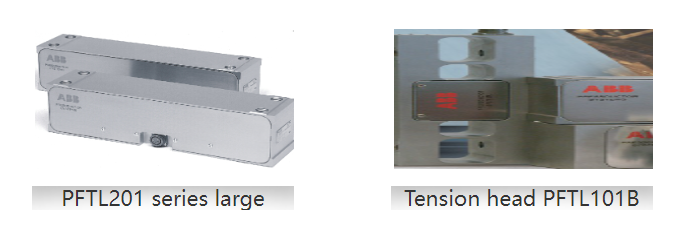

7、Model:PFTL101B
Description:Pillow block tensiometer horizontal pressure element, cylindrical plug connection, force range:2~20KN.
8、Model:PFTL101BE
Description:Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, measuring force range:2~20KN.
9、Model:PFTL101BER
Description:Acid-resistant pillow block tensiometer horizontal piezometric element, fixed cable connection, force range: 2~20KN. Used for paper wet-end tension measurement, protection class up to IP66/67.
10、Model:PFTL201C
Description:Pillow block tensiometer horizontal pressure element, cylindrical plug connection, force range:10~50KN.

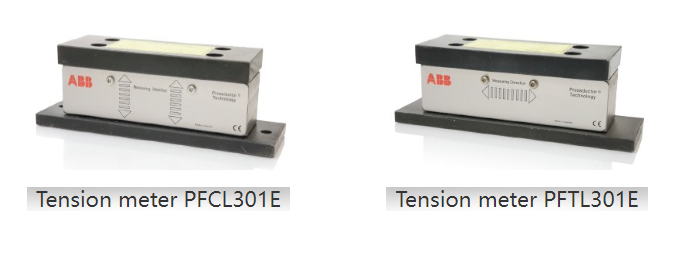

11、Model:PFCL301E
Description:Mini-type paper web tension vertical measuring element, pressure range:0.2~1KN.
12、Model:PFTL301E
Description:Mini-type horizontal paper web tension measuring element, pressure range:0.1~1KN
13、Model:PFRL101D
Description:Radial pressure measuring element, rated load 5.0KN.
14、Model:PFRL101C
Description: radial pressure element, rated load 0.5~2.0KN.
15、Model:PFRL101B
Description:Radial pressure measuring element, rated load 1.0KN.
16、Model:PFRL101A
Description:Radial pressure element, rated load 0.5KN.

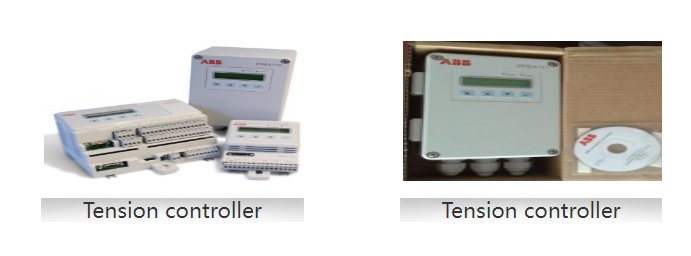

17、Model:PFEA113
Description:Tension controller with four measuring elements, Profibus-DP fieldbus communication, six configurable analogue output ports.
18、Model:PFEA112
Description:PFEA 111 based on the addition of Profibus-DP fieldbus communication function.
19、Model:PFEA111
Description:Tension controller with two measuring elements, compact, rail-mounted.
20、Model:PFTL201CE
Description:Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, force measuring range: 10~50KN.
21、Model:PFTL201D
Description:Pillow block type tensiometer horizontal pressure measuring element, cylindrical plug connection, measuring force range:50~100KN.
22、Model:PFTL201DE
Description:Pillow block type tensiometer horizontal pressure measuring element, fixed cable connection, force range:50~100KN.
23, Model:PFVL141V
Description:Rectangular measuring element, force range:0.63~56MN;Width range:70~610mm;Length range:120~1320mmHeight:74mm.
24, Model:PFVL141C
Description:PFVL 141C Circular Pressure Measuring Element,Force range:1.6-60MN;Diameter range:210-890mm;Height:74mm.

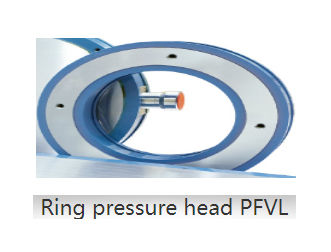

25, Model:PFVL141R
Description:Ring type pressure measuring element PFVL 141R,Force range:2~28MN;O.D. range:240~895mm;I.D. range:100~595mmHeight:74mm

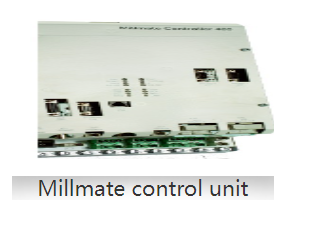

26、Model:PXAH401
Description:Millmate OperatUnit 400, panel mounted, can communicate with control unit network. Dimensions: 160 × 235 × ?60 mm, front protection IP65, other directions IP20, weight: 1.3 kg.

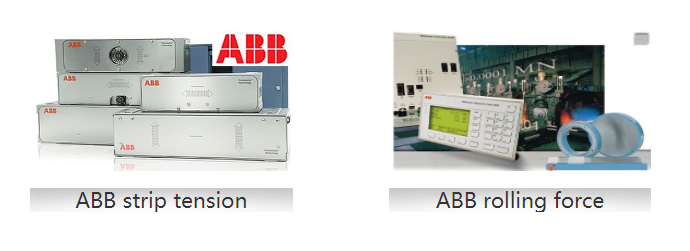

Model：PFVA401
Description:Rolling force controller, can provide excitation to the pressure measuring element, with analogue input/output, digital input/output, Ethernet interface, RS232/485 interface, optional high-speed fieldbus communication interface.
28、Model:PFBL141B/C
Description:Vertical force test unit, divided into single roll / double roll, fixed / rotating shaft end of different types, the measurement range of 4 - 400 kN. which, PFBL 141C external dimensions can be customised according to user requirements.
29、Model:PFEA101
Description:Closed-loop control of constant tension during unwinding and winding, with connection of pressure measuring elements and torque output devices such as brakes, clutches and motors.
