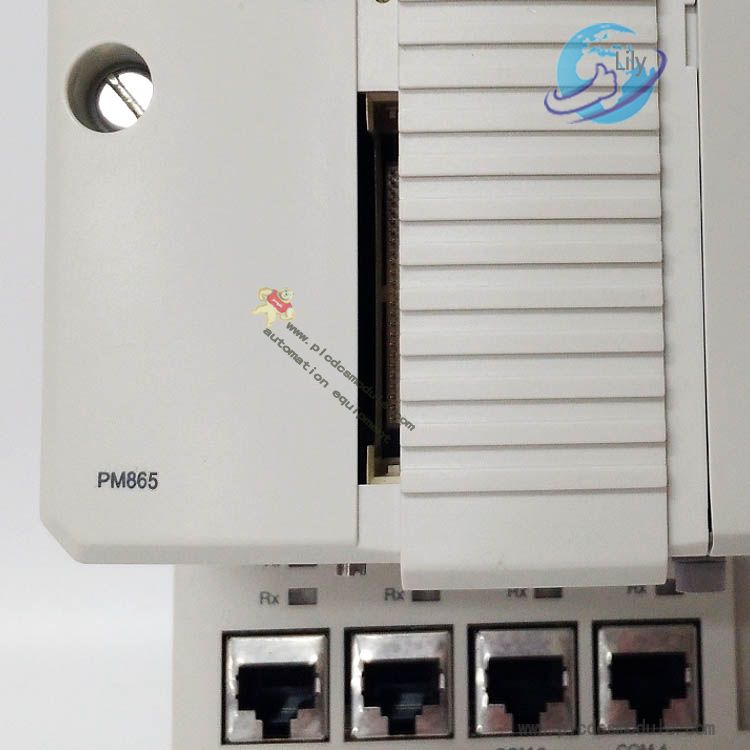

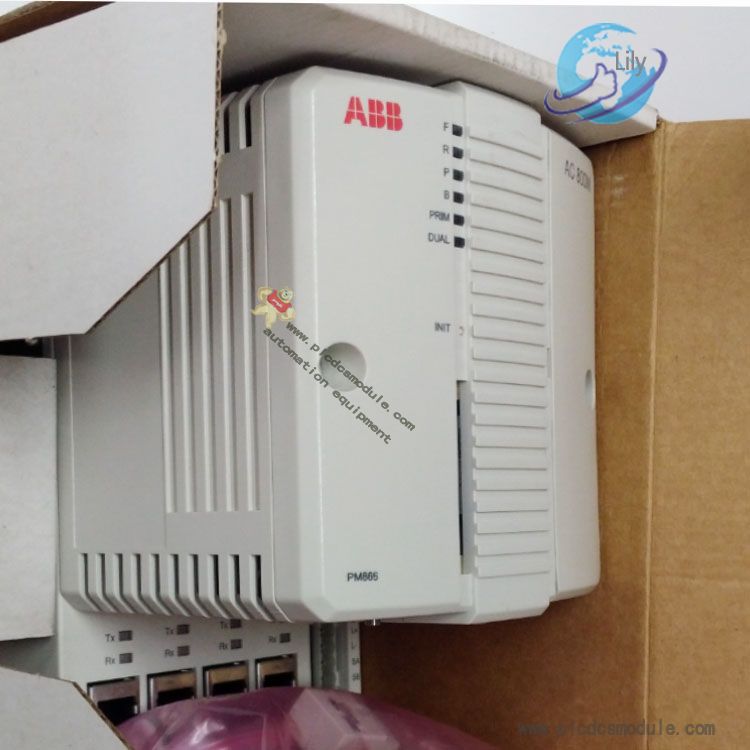

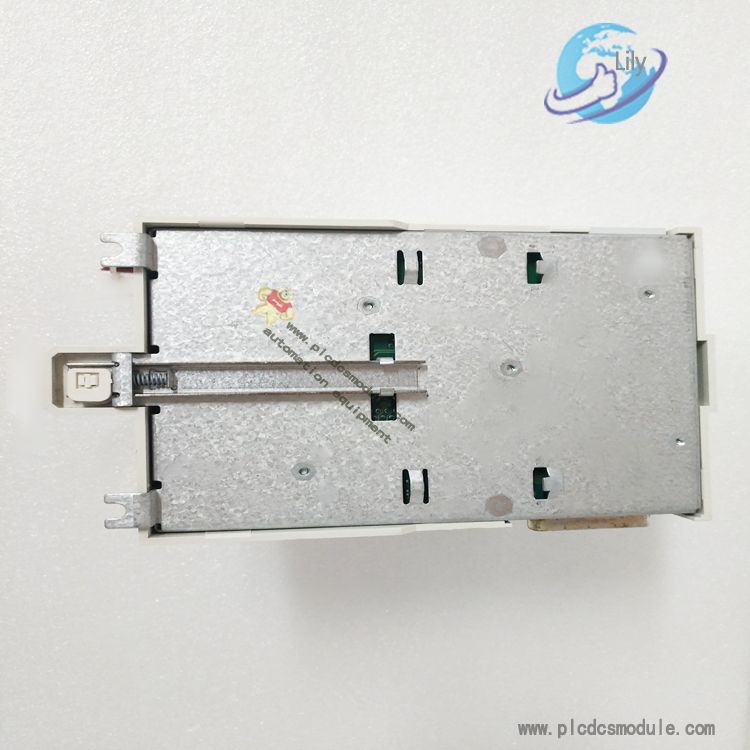

ABB PM865 3BSE030193R1 AC 800M Safety CPU Processor Unit HI.The ABB AC 800M PM865K01 3BSE031151R1 is a processor unit designed for industrial automation applications. It is part of the AC 800M system, which is known for its high performance and reliability in various industries.Processor unit redundancy is available for PM858, PM861, PM862, PM864,PM865, PM866, PM867 and PM891. In this case, the controller contains two processor units, each including memory for system and application software. One unit is acting as primary, the other is backup (hot stand-by). The primary processor unit controls the process. The backup stands by, ready to take over in case of a fault in the primary. The changeover is done bumplessly and in less than 10 ms. During the changeover, the process outputs are frozen.(Associated processor units:PM851/PM851A/PM856/PM856A/PM858/PM860/PM860A/PM861/ PM861A/PM862/PM864/PM864A/PM865/PM866/PM866A/PM867) with processor and Power Supply boards.
To learn more about this product click on the file below or download the file:

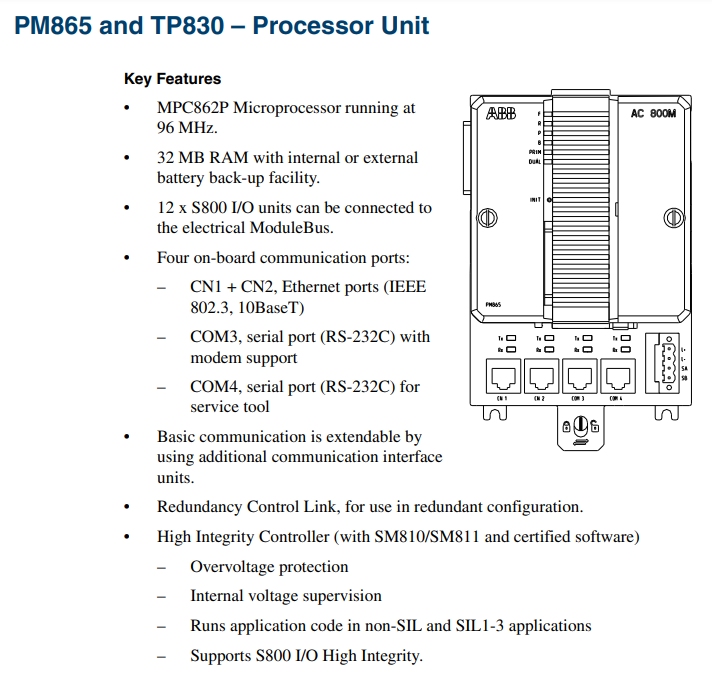

ABB PM865 3BSE030193R1 System AC 800M Safety CPU Processor Unit HI.pdf
Features and Benefits:
High SIL 2 and SIL 3 certifications using PM865/SM810/SM811 or PM867/SM812
Supports S800 I/O High Integrity (PM865, PM866A, and PM891)
Configurable with 800xA control builder
Full EMC certification
TÜV Certified SIL 2 and SIL 3
Built-in redundant Ethernet Communication ports
Environmental Conditions:
Operating temperature range: +5 to +55 °C
Storage temperature range: -40 to +70 °C
Altitude: Up to 2000 meters
Pollution degree: Degree 2
Relative humidity: 5 to 95%, non-condensing
Protection class: IP20
CE marking
Electrical Safety: EN 50178, IEC 61131-2, UL 508
Hazardous location: cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
Marine certificates: ABS, BV, DNV-GL, LR, RS, CCS
TUV Approval: Yes
RoHS compliance: Not specified
WEEE compliance: DIRECTIVE/2012/19/EU
