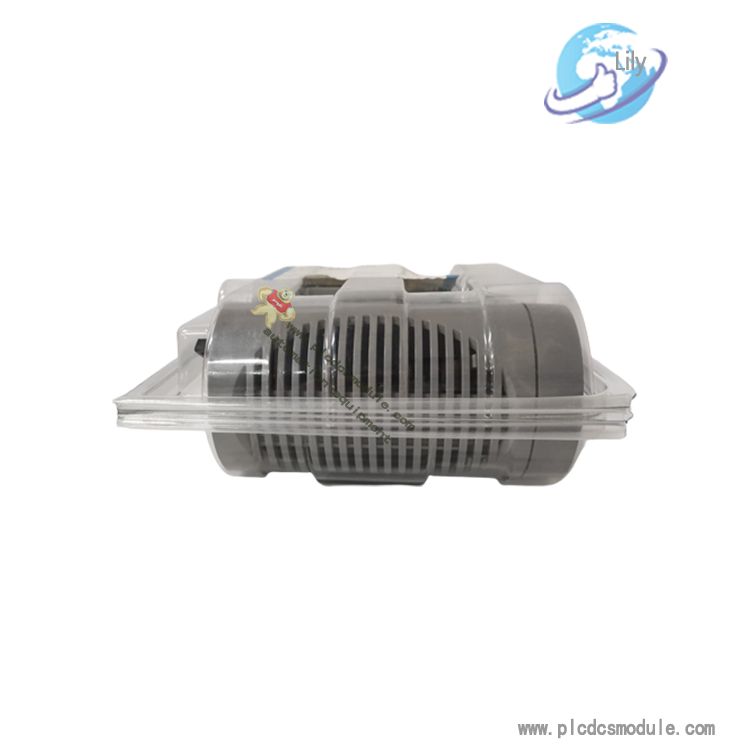

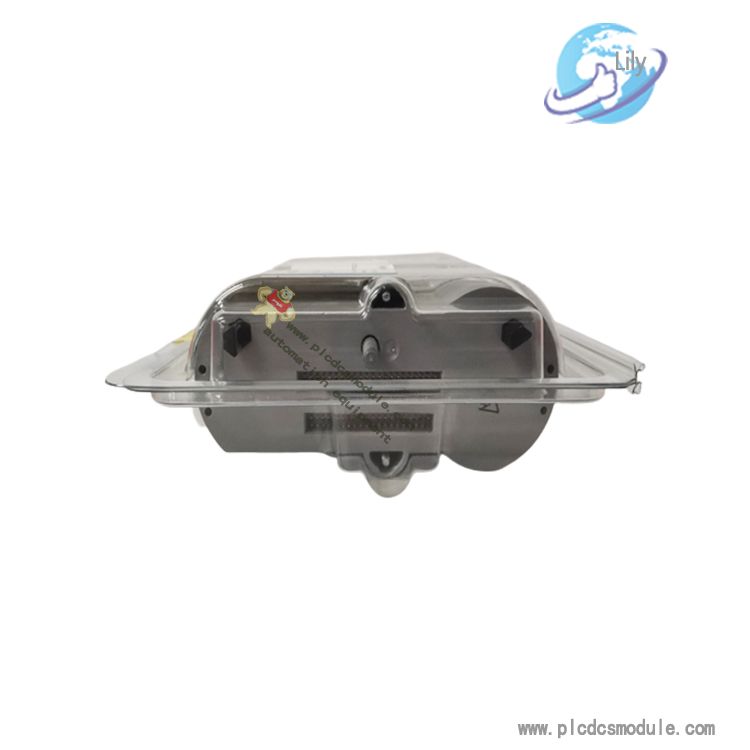

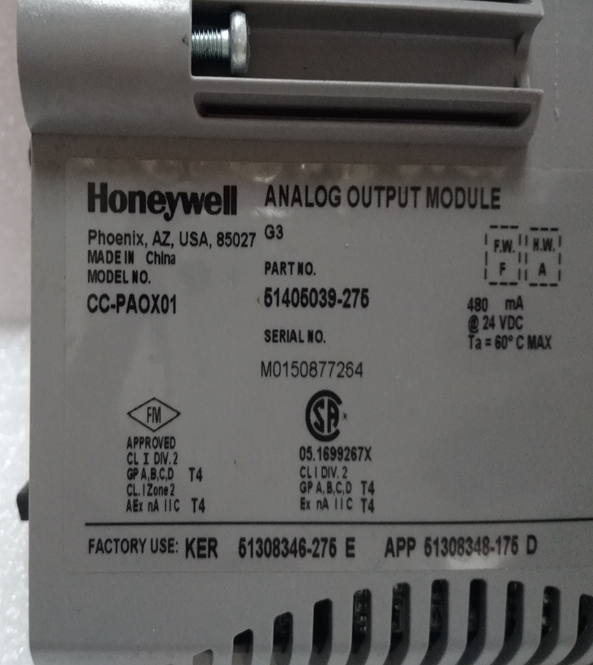

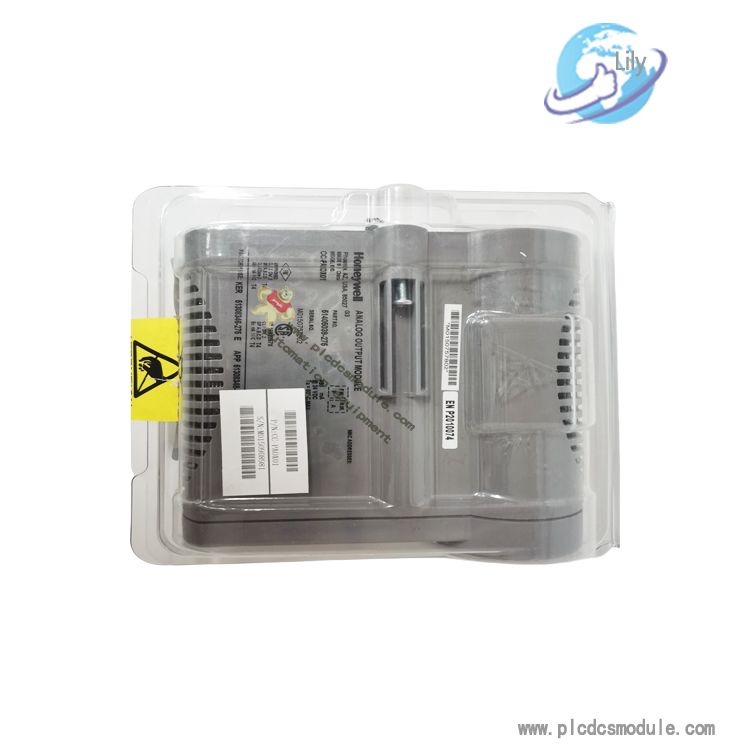

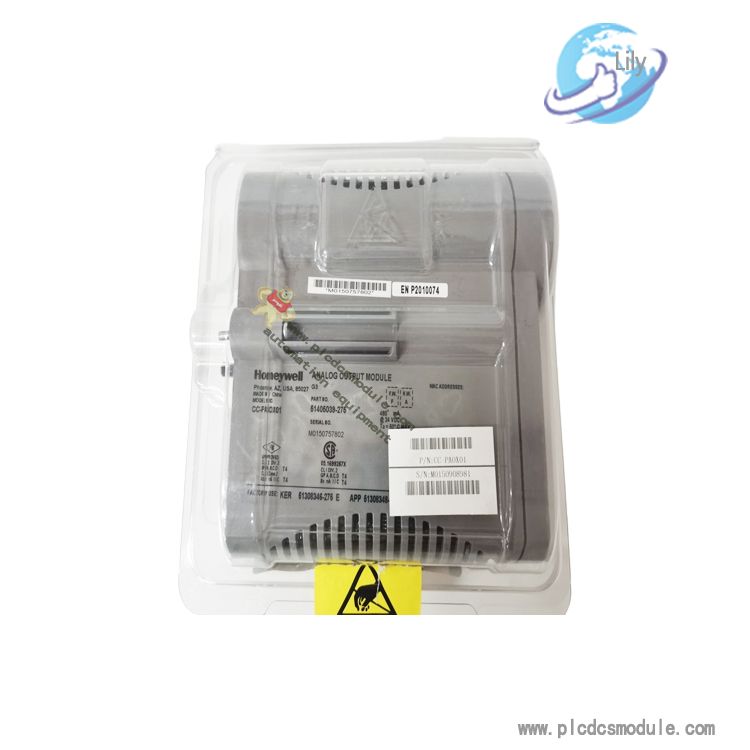

Honeywell CC-PAOX01 51405039-275 C300 Series HART Analog Output (AO) Module.Key specifications of the CC-PAOX01 module include:
Output type: 4-20 mA
Output channels: 16
Output ripple: less than 100 mV peak-to-peak at power line frequency, 250 ohm loads
Output temperature drift: 0.005%/°C of full scale
Output readback accuracy: ±4% of full scale
Output current linearity: ±0.05% of full scale
Resolution: ±0.05% of full scale
Calibration accuracy: ±0.35% of full scale (at 25°C), including linearity
Directly settable output current range: 0 mA, 2.9 mA to 21.1 mA
Maximum resistive load: 800 ohms (22 VDC to 28 VDC equivalent with 24 V supply)
Maximum Output Compatible Voltage: 16 V (22 VDC to 28 VDC with 24 V supply)
Maximum open circuit voltage: 22 V
Response Time: Stabilises within 1% of final value within 80 ms

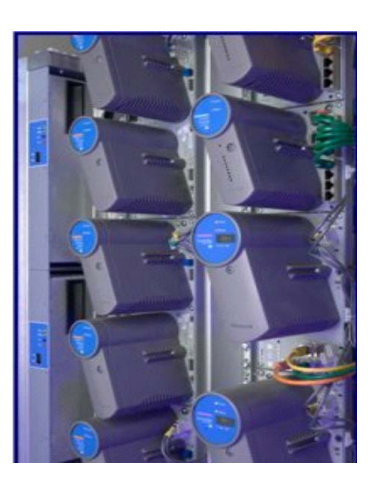

The Experion PKS C300 controller is the heart of the Experion control system and is ideal for implementations across all industries, providing best-in-class process control capabilities and safety. It supports a wide range of process control applications, including continuous and batch processes, as well as integration with intelligent field devices.The C300 controller also supports advanced process control, as well as custom algorithm blocks that allow users to create custom code to run in the C300 controller.
CC-PAOH51
cc-paox01/51405039-275
CC-PCF901
CC-PCNT01
cc-pcnt02/51454551-275
The C300PM uses Honeywell's Deterministic Control Execution Environment (CEE) to execute control strategies on a constant and predictable schedule. the CEE is loaded into the C300PM controller and provides an execution platform for a set of automation, logic, data acquisition, and computation function blocks.
