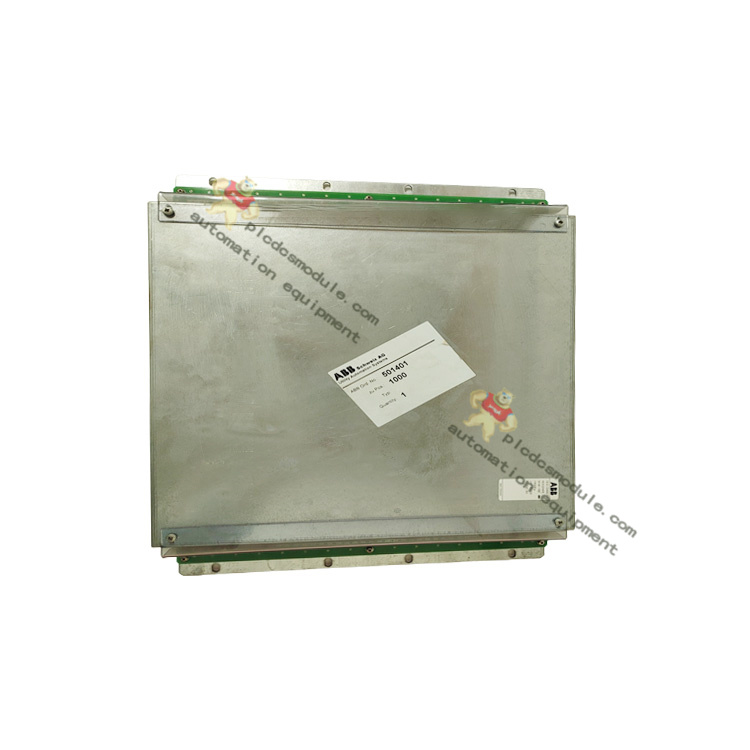

The ABB S-093M 3BHB009885R0063 is a high voltage inverter control and protection (IGCT) frame. It is part of the ACS2000 series
of high voltage inverters and is used in conjunction with other modules, such as the S-073N 3BHB009884R0021 High Voltage
Inverter Phase Module, to create a complete high voltage inverter system.
The S-093M 3BHB009885R0063 IGCT frame is designed to control and protect the operation of the high voltage inverter.
It consists of a control and protection unit, an output bus, a drive unit and a grip handle. The control and protection unit
is responsible for monitoring the operation of the HV inverter and taking appropriate action if any problems are detected.
The output bus, the drive unit and the grip handle are located on the front panel of the IGCT frame.
S-093M 3BHB009885R0063 The IGCT frame is designed for quick and easy installation and maintenance. It includes a
quick-insert backplate for fast and accurate insertion and removal of ports for other components. The backplate is also
equipped with two guide pins for quick and accurate insertion and removal of ports for other components.
In terms of practical applications, the S-093M 3BHB009885R0063 IGCT frame is used in various industries such as
power and industrial. It is used to control and protect the operation of high voltage inverters, which are used to
control the speed and operation of motors. The aim is to achieve energy savings and increase productivity.
