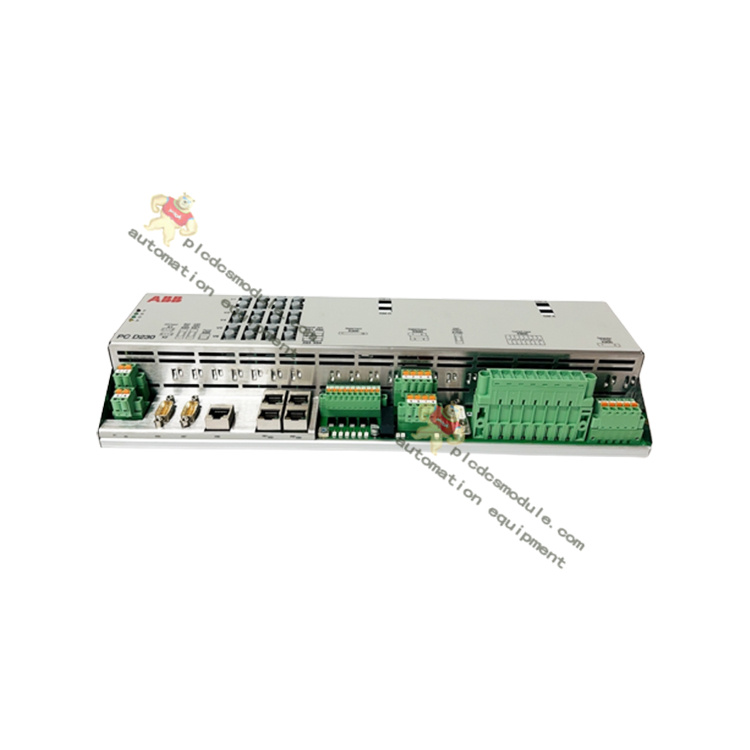

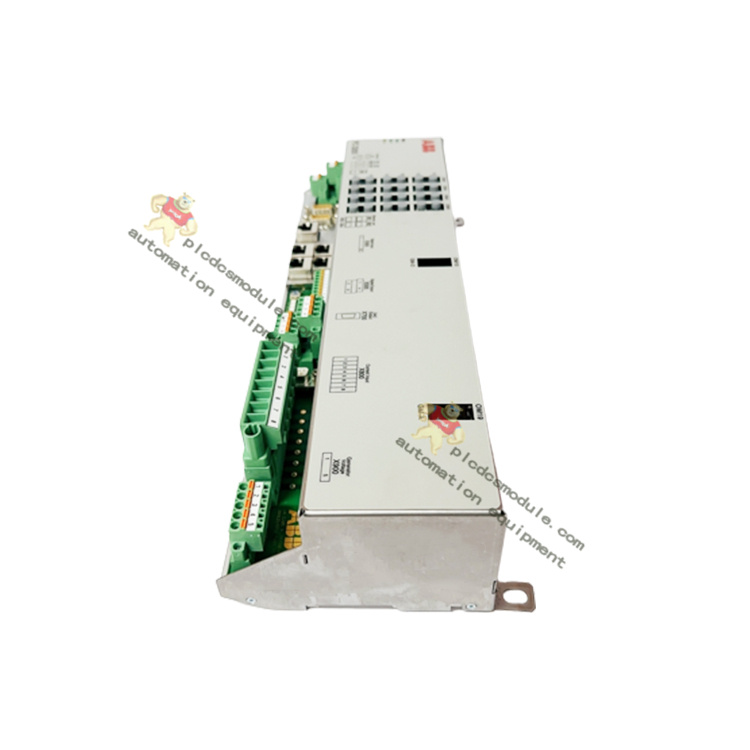

The ABB PCD230A101 3BHE022291R0101 Excitation Controller Module is a crucial component in power systems, mainly used for the excitation control of generators. Here is detailed information about it:
Features
Dual-core Processing Power: It is equipped with a dual-core 32-bit CPU, which provides strong computing power, enabling the module to handle complex control algorithms and tasks in real time. It can perform excitation control calculations and processing at high speed to ensure the stable operation of the generator.
Redundant Design: To improve reliability, the module adopts a redundant design. It is equipped with redundant processors and communication ports. In the event of a hardware failure, the redundant components can take over the work immediately, ensuring continuous control and minimizing downtime.
Comprehensive I/O Support: It can be connected to various ABB I/O modules through the S800 I/O system, including analog, digital, and special - purpose I/O modules. A single controller can be configured with up to 2,048 I/O points, which can meet the needs of different generator excitation systems and interface with various field devices.
Rich Communication Protocols: The module has built - in support for Profibus DP, Modbus RTU/TCP, and Ethernet communication protocols. This allows it to seamlessly integrate with other devices in the power system, such as generators, transformers, and monitoring systems, and realize data exchange and remote control.
Advanced Control Algorithms: It can implement PID control, sequential logic, and complex regulatory loops. At the same time, it supports IEC 61131 - 3 programming languages such as ladder logic and function block diagram, which provides convenience for engineers to develop and customize control programs according to specific application scenarios.
Safety - related Capabilities: When paired with ABB safety I/O modules, it is certified for SIL 2 applications. It has the ability to detect and diagnose faults in critical systems, which can timely identify potential safety hazards and take corresponding measures to ensure the safe operation of the generator excitation system.
Technical Specifications
Processor: Dual - core 32 - bit CPU.
Memory: 512 MB RAM, 4 GB flash memory.
Power Supply: 24 V DC (redundant inputs supported).
Operating Temperature: - 25°C to + 60°C.
Dimensions: 210 mm × 150 mm × 80 mm.
Weight: 1.5 kg.
Application Areas
Power Generation: It is widely used in power plants, such as steam turbine - generator units and hydro - generator units, to realize the excitation control of generators, ensuring the stable output of generator voltage and frequency, and improving the stability and reliability of the power grid.
Oil & Gas: In the oil and gas industry, it is used in the power supply systems of oil fields, natural gas fields, and refineries to provide stable excitation control for generators, ensuring the normal operation of various equipment in the production process.
Chemical & Petrochemical: It is applied to the power - supply systems of chemical plants and petrochemical plants, which can meet the high - reliability requirements of generator excitation control in harsh environments, and ensure the safe and stable operation of the production process.
Manufacturing: In the manufacturing industry, it is used in factories with high - power equipment and large - scale production lines to provide stable power support for generators, ensuring the normal operation of production equipment and improving production efficiency.
