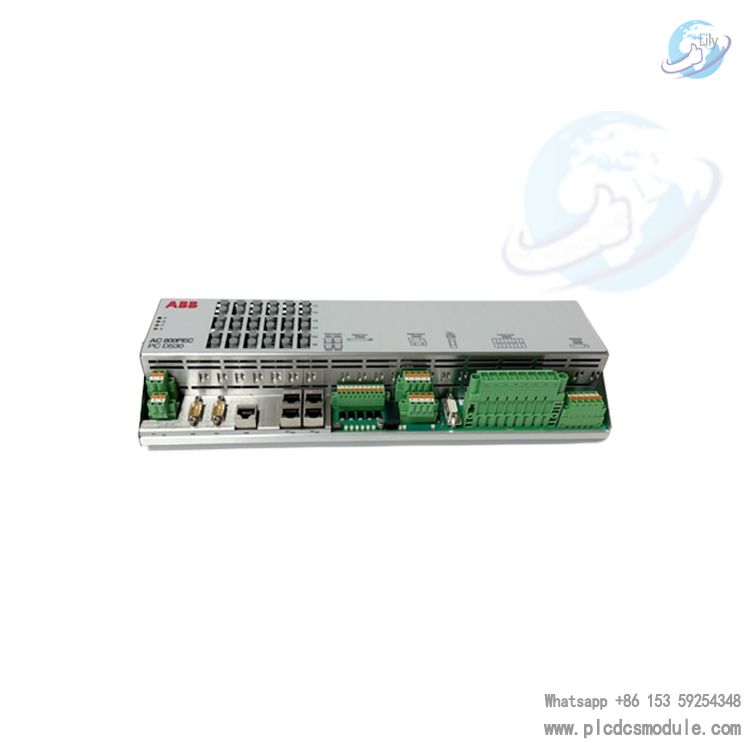

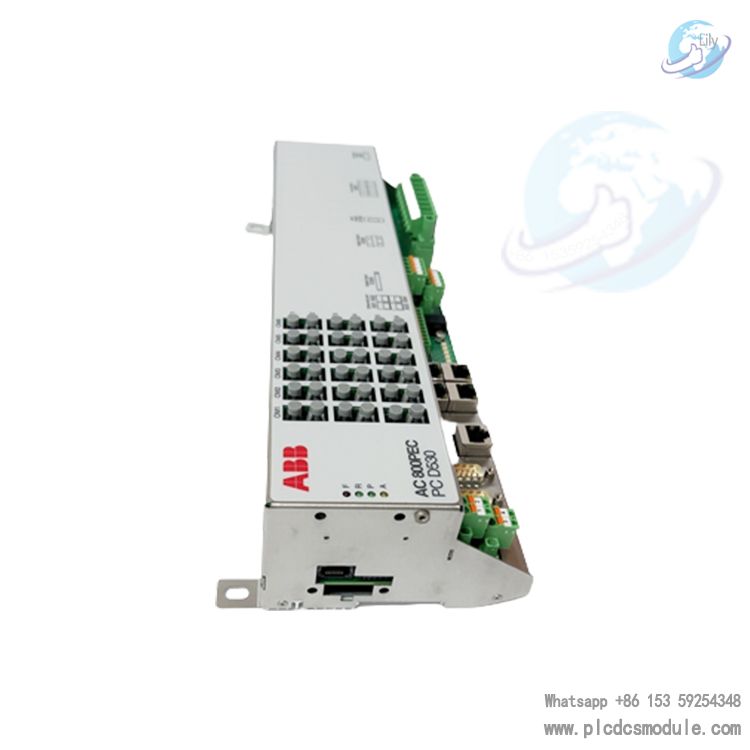

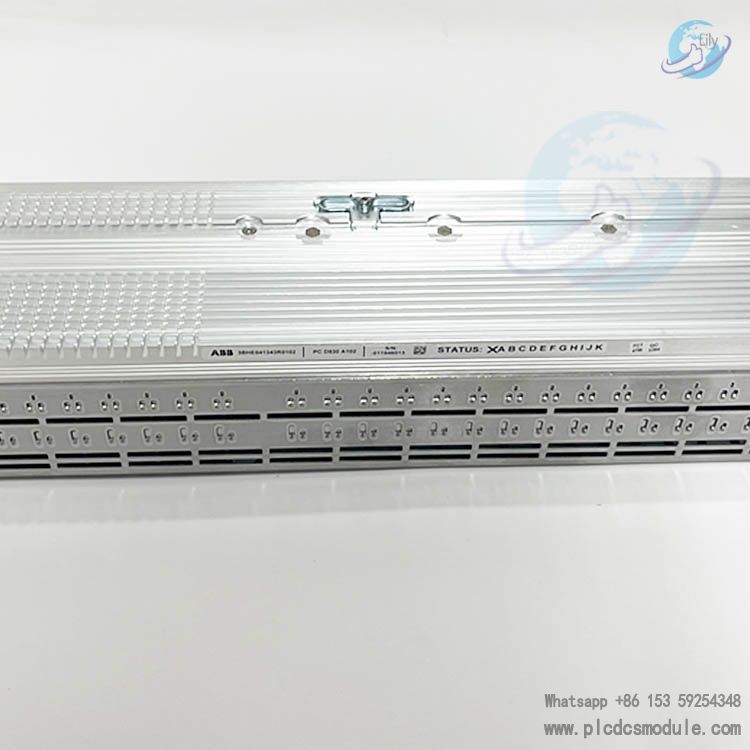

ABB PCD530A102 3BHE041343R0102 AC800PEC System Controller Module.The ABB PCD530A102 3BHE041343R0102 is part of the AC800PEC series, which is an efficient and flexible controller family used in various industrial applications.
Key Features
Modular design: The AC800PEC series uses a modular control method, allowing easy addition and removal of various functional modules to meet different process control requirements.
Advanced features: The system offers advanced tools and capabilities for a wide range of applications.
CPU and Memory: Equipped with a 32-bit CPU and 128MB of memory, ensuring fast and efficient processing capabilities.
Communication interfaces: Rich communication interfaces including Ethernet, USB, RS232/485, etc..
Operating temperature range: -25 °C to +70 °C.
Input voltage: Supports 24V DC input voltage.
The AC 800PEC combines the floating-point computing performance of a CPU with the flexibility and high-speed capability of an FPGA. The system is divided into three performances covering different cycle times. The control tasks are assigned according to their speed requirements
requirements:
- Very fast tasks down to 25 nanoseconds (nanoseconds for FPGA tasks).
- Fast tasks down to 100 µs (microseconds for Matlab/Simulink tasks).
(Matlab/Simulink tasks).
- Slow tasks down to 1 millisecond (milliseconds for control tasks) The hardware architecture of the AC 800PEC is an ideal match for the three-level software architecture. To support short processing cycles, the AC 800PEC provides a fast I/O interface. The AC 800PEC provides a fast I/O system. Depending on the speed of the I/O connections, it is possible to achieve data throughput times of less than 100 µs, including the time required to read, process, write, and transmit signals, including the time required to read, process, write, and transmit signals.
Used for
Control - IDC current step compensation for smooth step current compensation for smooth current changes
- Power factor compensation via OLTC - Predictive maintenance features can be included - Software protection package includes - DC overcurrent protection - AC overvoltage and undervoltage protection - AC phase imbalance protection - System imbalance protection for 12-pulse
System unbalance protection
- DC ground fault detection available via 3 voltmeters
Applications
This module is suitable for various industrial applications, including:
Electric power generation: Used for controlling excitation systems of AC generators to maintain stable operation of motors or generators.
Industrial automation: Suitable for material handling, packaging, printing and labeling machines, conveyor systems, food and beverage production, pharmaceutical production, and more.
Robotics technology: Providing stable excitation control solutions for devices requiring precise control.
Manufacturing: Used for motor control and servo drive on automated production lines.
Chemical, petroleum, and natural gas industries: Meeting demands for precise motor control in these fields.
Additional Information
The module is part of the AC800M controller family, which includes CPU, communication modules, power modules, and accessories.
It's known for its high reliability, high integration, easy installation and maintenance, and strong scalability.
The system has extremely fast control algorithms, efficient communication capabilities, and high reliability and stability
