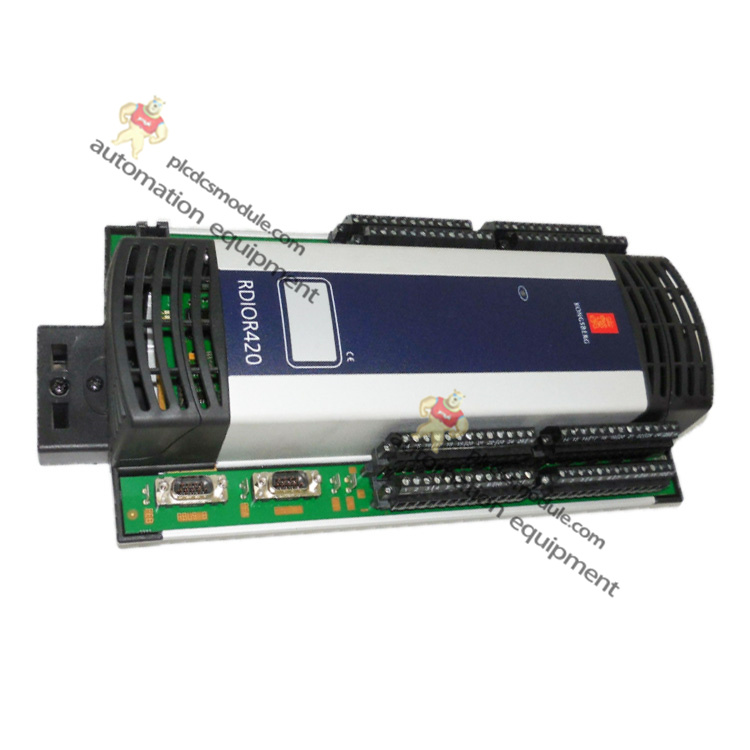

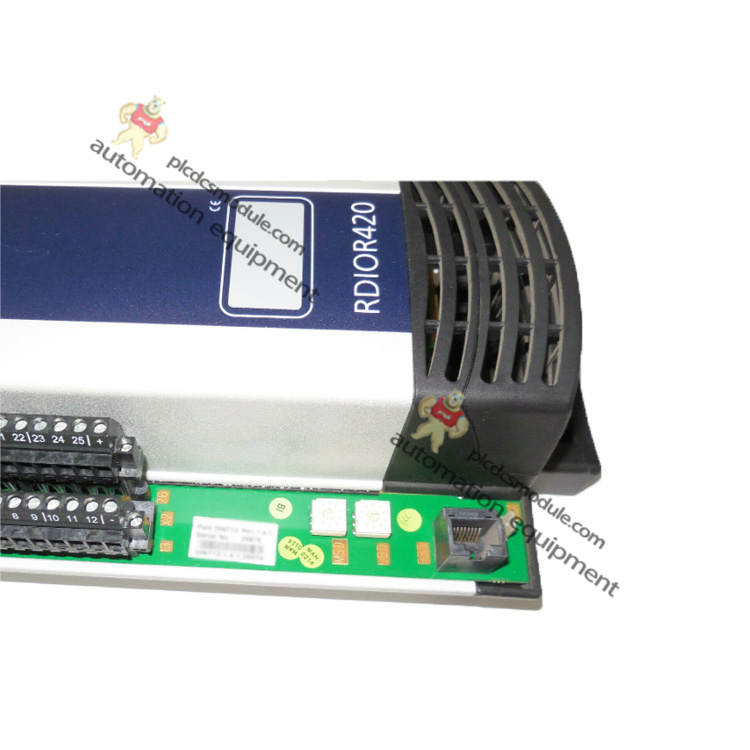

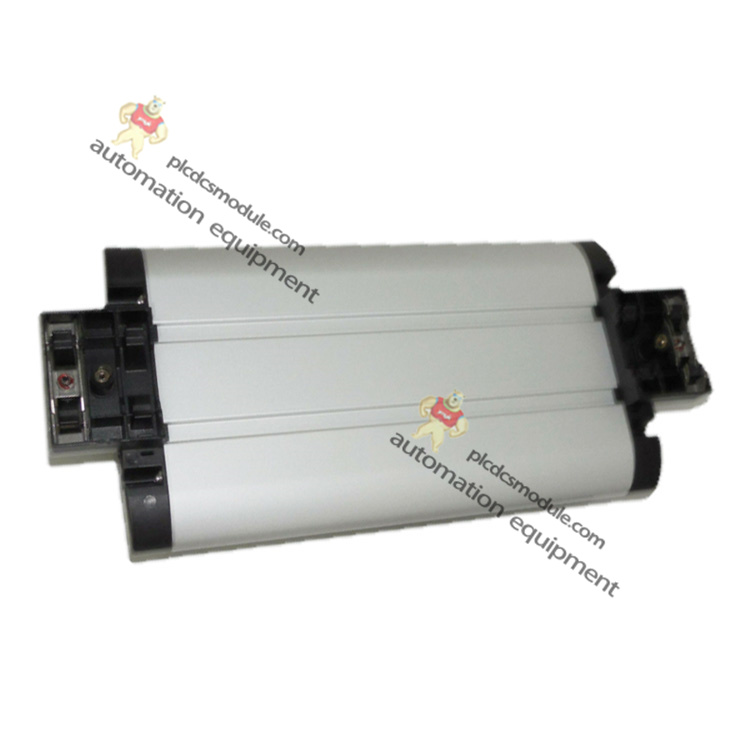

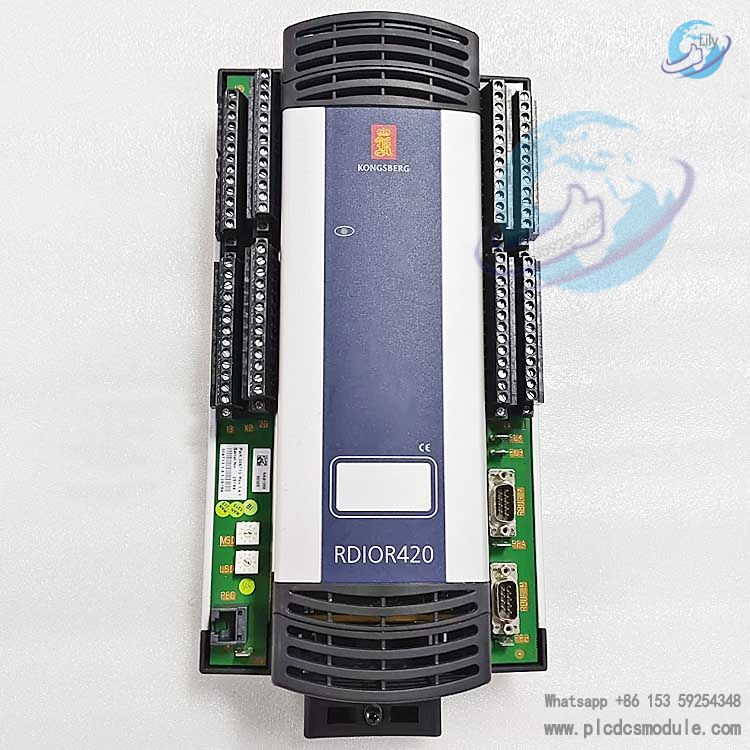

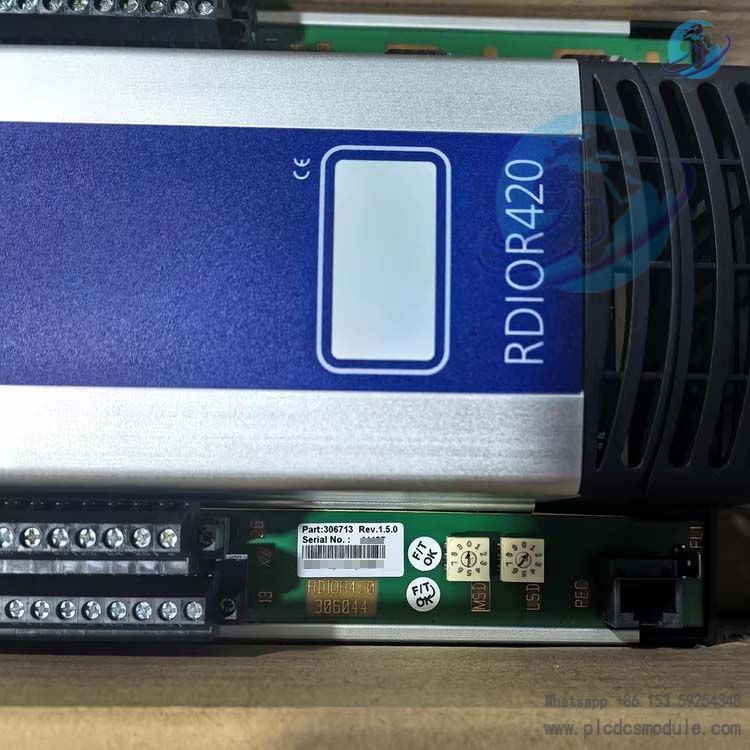

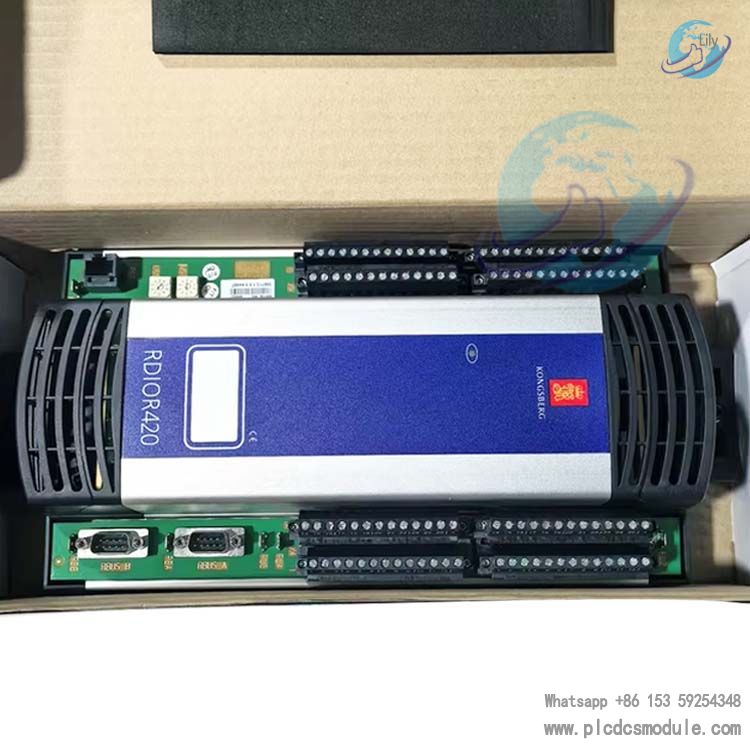

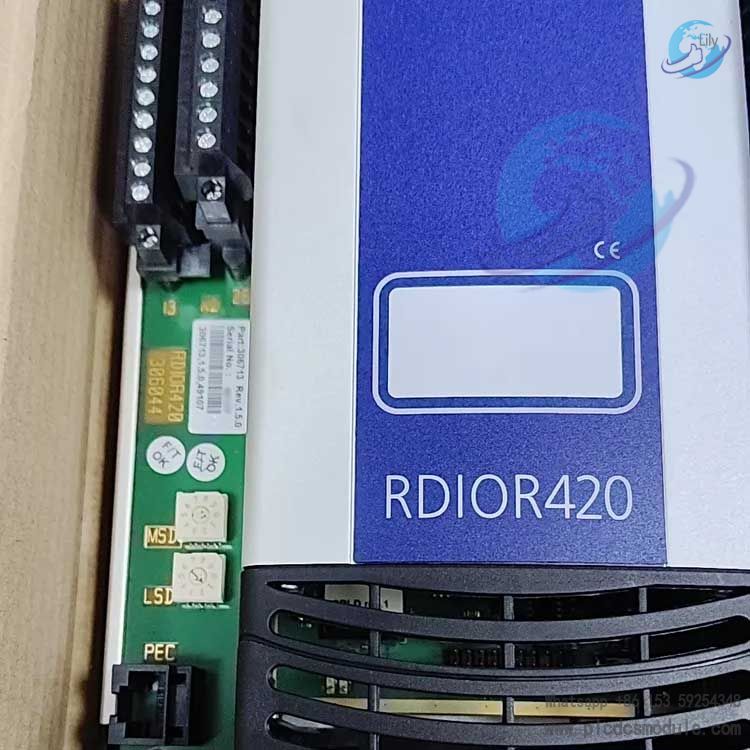

Kongsberg RDIOR420 is a high-performance, highly reliable remote digital input/output (I/O) and relay module designed for seamless integration with the Kongsberg KM automation system. Serving as a critical bridge between field devices (such as sensors and actuators) and the central control unit (RCU), it enables stable remote signal acquisition, transmission and control in various harsh industrial environments.
The RDIOR420 is purpose-built to address key pain points for industrial users, including reliable communication, flexible configuration, convenient maintenance and compliance requirements for explosion-proof zones. With stable and dependable performance, it effectively reduces downtime and simplifies system integration.
Download
Product Overview & Core Functions
The RDIOR420 is a hybrid I/O module integrating 16 software-configurable solid-state digital input/output (DI/DO) channels and 16 relay channels (normally closed / normally open, NC/NO), with a total of 32 universal I/O channels to meet diverse industrial control requirements.
Its core function is to enable bidirectional communication between field devices and the main control computer (RCU) via redundant remote I/O process buses (RBUS A and RBUS B). Data transmission remains uninterrupted even if one bus fails — a critical feature for key industrial systems where downtime would result in significant losses.
Beyond basic I/O control, the module incorporates multiple advanced features to enhance system reliability and usability, including short-circuit-protected I/O loop power output, single-channel loop monitoring, and electrical isolation between communication ports and other module circuits. These effectively suppress signal interference and ensure operational safety. It also supports online configuration of I/O channels, allowing users to adjust channel functions without shutting down the entire system, saving time and minimizing production interruptions.
Key Features & User Benefits
Centered on end-user requirements, the RDIOR420 combines robust performance with user-friendly design to solve practical challenges in industrial environments:
Redundant Communication for Maximum Reliability
Equipped with dual remote I/O process bus interfaces for redundant communication with the master control system, eliminating single points of failure and ensuring stable data transmission in harsh industrial conditions. This significantly reduces downtime risk, improves system availability, and safeguards critical processes against communication failures.
Flexible Configuration for Easy Customization
16 solid-state DI/DO channels support software configuration, enabling adaptation to specific application scenarios without additional hardware modifications. This flexibility reduces module part numbers, simplifies inventory management, and lowers long-term costs for automation system expansion.
Comprehensive Protection & Diagnostics
Features overvoltage protection, I/O loop short-circuit protection, and complete module diagnostics including self-testing, status indicators, and single-channel loop monitoring. These facilitate rapid troubleshooting, shorten maintenance time, extend module service life, and reduce maintenance costs and production disruptions.
Fail-Safe Design
Provides both software and hardware fail-safe capabilities. In the event of communication loss with the host, output protection is activated automatically to prevent equipment damage and ensure operational safety. Particularly suitable for hazardous areas or critical systems, avoiding safety incidents or economic losses caused by equipment failure.
Easy Installation & Maintenance
Standardized interfaces and a compact design enable quick and simple installation and replacement, with seamless integration into existing automation systems. It also supports safe and convenient firmware updates to keep functionality up to date without specialized expertise, saving maintenance team time and reducing operational costs.
Explosion-Proof Zone Certification
Certified for use in Explosion Protection Zone 2, allowing deployment in potentially explosive atmospheres. Its application scope extends to industries with strict safety standards, such as oil and gas, chemical processing, and marine automation.
Technical Specifications
Module Type: Remote Digital Input/Output and Relay ModuleI/O Channels: 32 channels total: 16 configurable solid-state DI/DO channels, 16 relay channels (NC/NO)Communication Interface: Redundant remote I/O process bus (RBUS A, RBUS B), electrically isolatedProtection Features: Overvoltage protection, I/O loop short-circuit protection, electrical isolationDiagnostic Functions: Comprehensive module diagnostics, self-test, status indicators, single-channel loop monitoringFail-Safe: Software and hardware fail-safe, automatic output protection in case of communication lossCertification: Suitable for Explosion Protection Zone 2Mounting: Easy installation and replacement with standardized interfacesFirmware: Supports simple and secure firmware upgrades
Applications
Kongsberg RDIOR420 adapts to a wide range of industrial environments and meets sector-specific requirements. As a general-purpose remote I/O and relay module, it is widely used in:
Industrial AutomationSuitable for equipment monitoring and process control in production lines, robotics and factory automation systems. Reliable remote I/O control is key to improving efficiency and productivity.
Process ControlApplied in chemical, oil and gas, and petrochemical industries. Meets explosion-proof standards and operates stably in harsh environments.
Energy ManagementUsed for monitoring and controlling power equipment, substations and new energy systems, enabling efficient energy data acquisition and distribution.
Marine & OffshoreCompatible with ship automation and offshore platform control systems. Resists harsh marine conditions and ensures reliable operation at sea.
Building AutomationDeployed in building management systems to monitor and control HVAC, lighting and security systems, improving energy efficiency and building safety.
Research & DevelopmentUsed for remote data acquisition and experimental equipment control in research institutes, meeting high-precision and high-reliability demands.
Why Choose Kongsberg RDIOR420
For industrial users seeking reliable, flexible and cost-effective remote I/O and relay modules, the RDIOR420 stands out with its mature and stable performance, user-centric design, and seamless integration with the Kongsberg KM automation system.
Unlike generic modules, the RDIOR420 is developed by Kongsberg — a trusted leader in industrial automation — and complies with global industry standards, ensuring long-term stability and durability even in extremely complex environments.
Whether you aim to improve system reliability, reduce maintenance costs, or adapt to evolving application needs, the RDIOR420 delivers the flexibility, protection and performance to keep your operations running smoothly. Supported by Kongsberg’s global service network, the RDIOR420 serves as a long-term stable core component in your automation system.
