KOLLMORGEN  S20360-SRS Servo Drives

Brand: KOLLMORGEN; Product Model: S20360-SRS Product Name: Servo Drives

Base S200( S20360-SRS) servo drives come standard with torque or velocity control, as well as with factory options that support the SynqNet motion network or add pre-settable Indexing with CANopen communications. The factory option cards also add interfaces to additional motor feedback devices such as Comcoder, 1 Vp-p Sin-Cos, EnDat 2.1, and EnDat 2.2 running in 2.1 compatibility mode.

The option card EnDat interface accommodates single and multiturn absolute rotary or incremental and absolute linear encoders. The drives operate with AC (120/240 VAC) or DC (20-90 VDC) power sources and have current ratings from 1.5 ARMS continuous to 48 ARMS peak. Their compact footprint ranges from 1.1 in (28.7 mm) wide and 6.0 in (152.4 mm) tall to 3.8 in (94.6 mm) wide and 6.39 in (213 mm) tall with depths ranging from 3.9 in (100.8 mm) to 7.57 in (192.4 mm), allow them to fit into tight spaces. They are UL 508C recognized, CE marked, and conform to EN50178 and EN61800-3 standards.

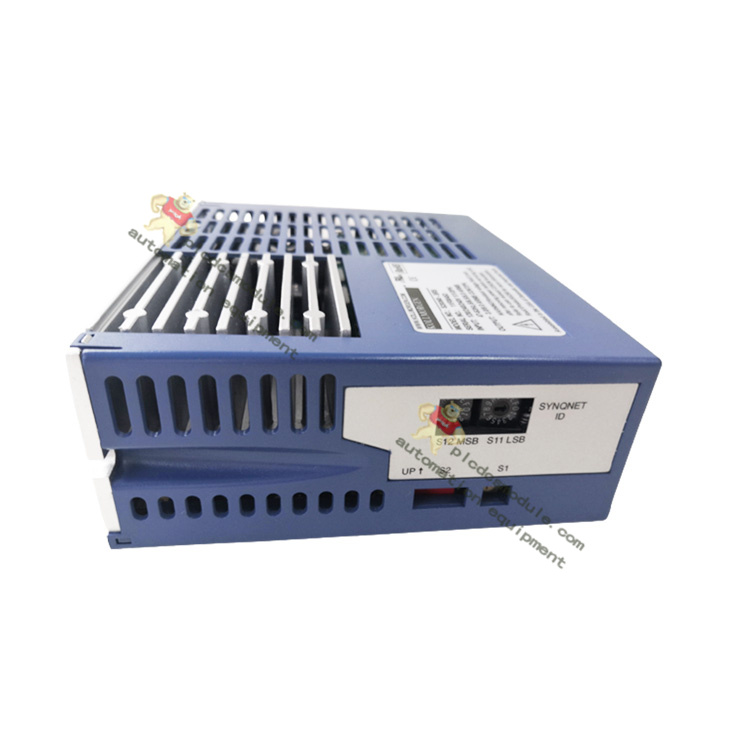

                                      KOLLMORGEN  S20360-SRS Servo Drives

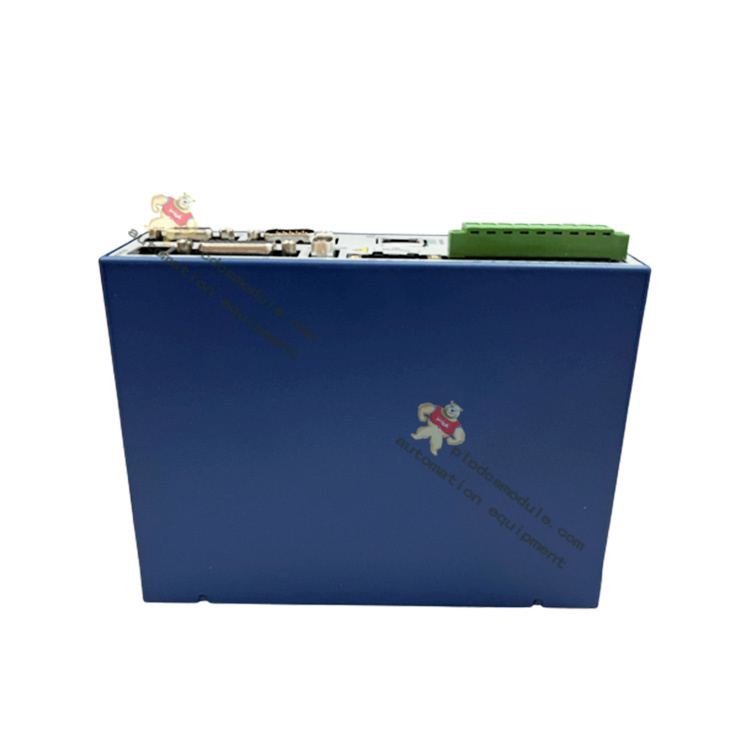

                                      KOLLMORGEN  S20360-SRS Servo Drives

                                      KOLLMORGEN  S20360-SRS Servo Drives

Features

For 120/240 VAC and 20-90 VDC operation with current ratings from 1.5 Amps RMS continuous to 48 Amps RMS peak

24-bit high resolution feedback

3-5 kHz high performance current loop bandwidth

Intelligent feedback with electronic motor nameplate eliminates the need for drive parameter setup and servo loop adjustment, allowing plug-and-play commissioning in most applications

Standard features include torque and speed control base, electronic gearing, up to 18-bit analog reference input and encoder equivalent output

Options available to support indexed or SynqNet™-based programmable motion control

Compliant with UL 508C, CE, EN50178, EN61800-C and Semi F47 standards

Independent "Keep Alive" power input allows for quick recovery from emergency stop conditions

Benefits

Wide power range allows deployment of a single drive family throughout the machine

Compact footprint allows use of smaller cabinets or installation close to point of use

Optically isolated inputs/outputs, positive locking connectors and comprehensive fault protection extend machine life and prevent accidental damage

High-performance system designed for increased machine throughput

Easy-to-use graphical user interface reduces engineering and support time

Reduces total cost of ownership
