Location: Home > Product > ABB
ABB

ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A

Warranty: 365 days

Quality: Original module

Condition: New / Used

Warehouse: Spot

Delivery time: Shipped in 3 days after payment

Mail: plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp:+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

Basic Information

Product Model:PCD232A

Product Code:3BHE022293R0101

Product Series: PEC80-CIO

Brand:ABB

Size152*383*17cm

Weight 2.5kg

Country of origin: Switzerland


Download of the data sheet:

PC D232 A01.pdf


ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A Functional features

1. Rich interface types

Temperature sensor interface: with 3 interfaces for PT100 or PTC temperature sensors.

Digital inputs and outputs: 16 relay outputs, 12 digital control inputs, supporting 24V or 48V, with two independent 24V polling voltage supplies.

Analogue Inputs and Outputs: 3 analogue outputs with ±10V output range and 3 analogue inputs with ±10V or ±20MA input range.

Communication interfaces: 4-port Ethernet communication switch interface, RS232 serial port, RS485 interface, CAN interface, and an optical module interface with three optical links.

Redundancy: Supports redundancy of all system interfaces, realised by two PCD232A devices.

Independent watchdog function: Enhances the stability and reliability of system operation.

Operating temperature range: -25℃ to +70℃, adapting to a variety of industrial environment temperature.

Humidity range: 5% to 95% relative humidity (+40℃).

2.Technical Parameters

Communication

Ethernet: 4 10/100MB Ethernet ports.

RS485: Supports CAN OPEN and MODBUS interfaces.

Digital inputs

Channels: 2 groups of 6 isolated 24/48 volt input channels.

Input Current: 6MA typical.

Isolated test voltage: 500VRMS.

Analogue Inputs

Voltage range: -10V to +10V.

Current range: -20MA to +20MA.

Load Resistance: 50Ω.

Accuracy: <1% FSR.

Input bandwidth: 2KHZ.

Digital Outputs

Channels: 16 relay output channels.

Switching Voltage: 250VAC.

Switching Current: 10A.

Isolation test voltage: 500VRMS.

Analogue Output

Voltage range: -10V to +10V.

Maximum output current: 5MA.

Accuracy: <1% FSR.

Temperature Inputs

Sensor type: For PTC and PT100 sensors with 3-wire measurement.

Measuring range (PT100): -40°C to + 240°C.

Accuracy (PT100): <1.5°C.

Switching resistance (PTC): 500Ω.

Power supply

Input voltage: Redundant 24V, range 20V to 28V.

Maximum supply current: 2A.

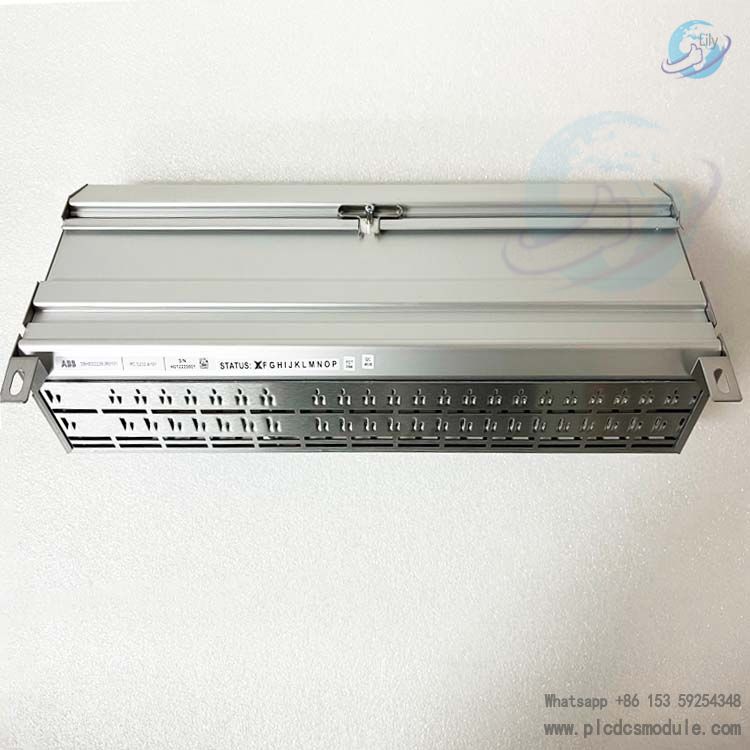

ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A.jpg

ABB PCD232A 3BHE022293R0101 Hardware Installation:

Securing the Module: Securely mount the module to the control cabinet or equipment rack using the appropriate screws or clips, depending on the actual mounting location.

Connect Power: Connect a redundant 24V power supply to the module's power input terminals, ensuring that the voltage is in the 20V to 28V range.

Connecting Sensors and Actuators

Temperature Sensor Connection: Connect a PT100 or PTC temperature sensor to the corresponding 3 temperature sensor ports via 3-wire.

Digital Signal Connections: Connect digital control input signals to the 12 digital control input ports, selectable 24V or 48V inputs. Connect the device to be controlled to the 16 relay output channels.

Analogue signal connections: For analogue inputs, connect an analogue signal source to the 3 analogue input ports with an input range of ±10V or ±20mA. connect devices requiring analogue control to the 3 analogue output ports with an output range of ±10V.

Connecting Communication Interfaces

Ethernet Connection: Connect the module's four 10/100MB Ethernet ports to other devices or network switches using Ethernet cables.

RS232 Connection: Connect the module to a device that requires serial communication using the RS232 serial cable.

RS485 Connection: Connects the module's RS485 interface using an RS485 cable, which can be used for CAN open or Modbus communication.

CAN connection: Connect the CAN bus to the CAN interface of the module to achieve communication with other CAN devices.

Optical Module Connection: If required, connect optical fibres to the 3 optical links of the optical module interface.

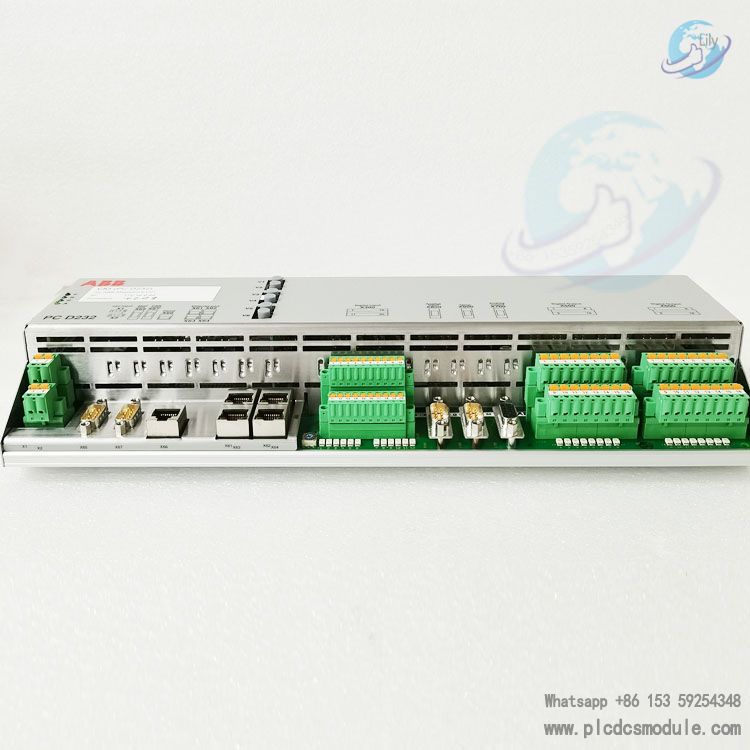

ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A...jpg

    ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A

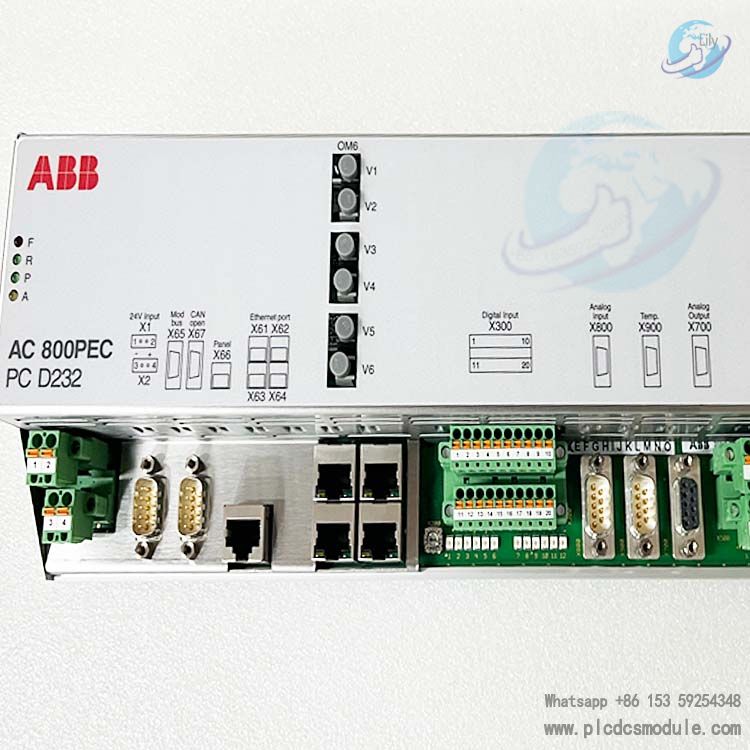

ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A..jpg

    ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A

ABB PCD232A 3BHE022293R0101 PEC80-CIO Combined Input Output module PC D232A......png
