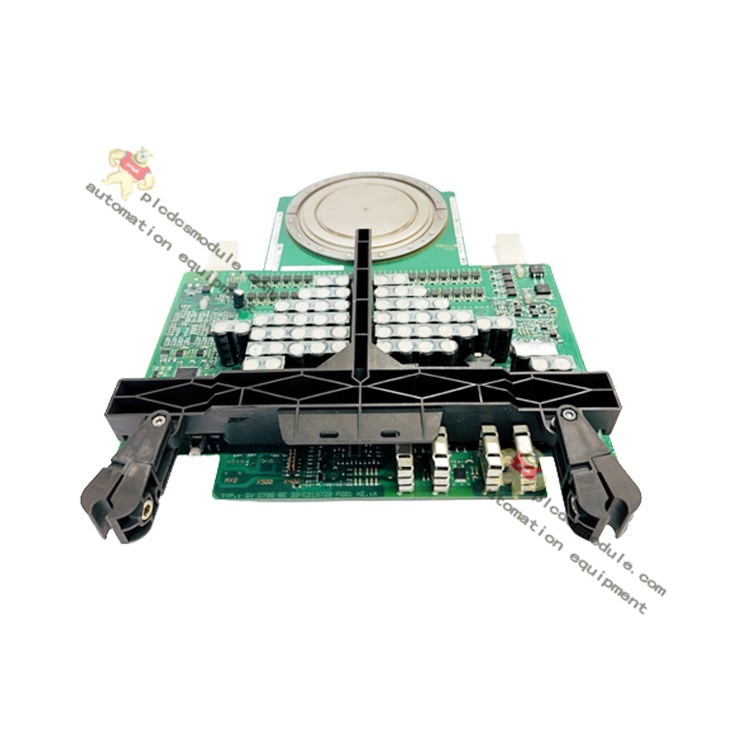

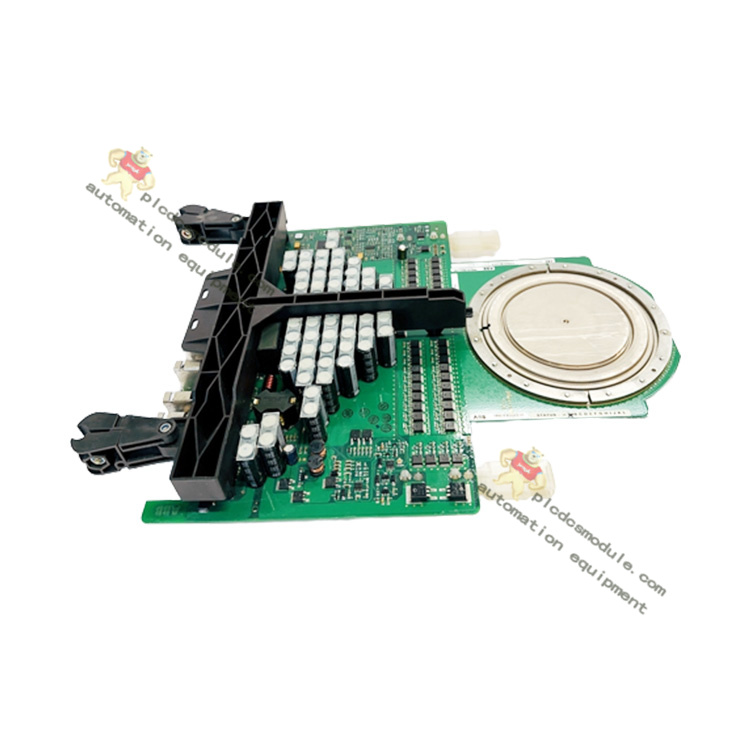

ABB 5SHY4045L0003 3BHB021400 Integrated Gate-Commutated Thyristors

Product Description:5SHY4045L0003

Brand：ABB

Description：Integrated Gate-Commutated Thyristors

■IGCT semiconductors and 3-level VSI design

■Low part count

■Least complex and most robust

■No series or parallel connection

of power semiconductors

The 5SHY4045L0003 3BHB021400   IGCT's turn-on/off control unit is an integral element of the component. It only requires an external power supply and its control functions are conveniently accessed through optical fiber connections. The device's control power consumption typically ranges from 10 - 100 W.

The  5SHY4045L0003 3BHB021400  IGCT is optimized for low conduction losses. Its typical turn-on/off switching frequency is in the range of 500 hertz. However, in contrast to the GTO, the upper switching frequency is only limited by operating thermal losses and the system's ability to remove this heat. This feature, in conjunction with the device's fast transition between on and off state, enables short on-off pulse bursts with switching frequencies of up to 40 kHz.
