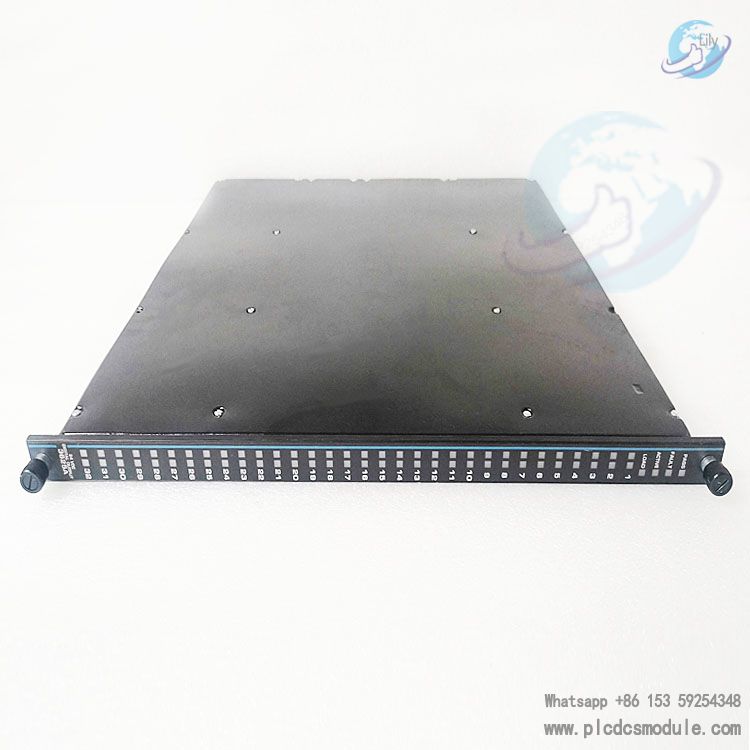

Triconex 3625A Digital Output module TMR Schneider Tricon3625ATriconex 3625A is a digital output module that can be used to control various devices such as solenoid valves, actuators, and lights. It has 32 output signals with commoned supervision/non-supervision DO. This module has a rated voltage of 24 VDC and is TMR (Triple Modular Redundancy) isolated.
Technical Parameters
Output Signal Quantity: It provides 32 digital output channels, enabling the simultaneous transmission and processing of multiple digital signals to meet the control requirements of multiple devices or actuators.
Output Signal Type: It mainly outputs discrete signals, usually binary (on/off) states. It is suitable for controlling devices such as solenoids, relays, valves, motors and lamps.
Output Current: The maximum current rating is 1.7 A per point, with a 7 A surge every 10 ms. The minimum required load is 10 mA, and the maximum load leakage is 4 mA.
Voltage Drop: Less than 2.8 VDC at a typical value of 1.7 A.
Power Consumption: Less than 13 watts.
Point Isolation: 1500 VDC.
