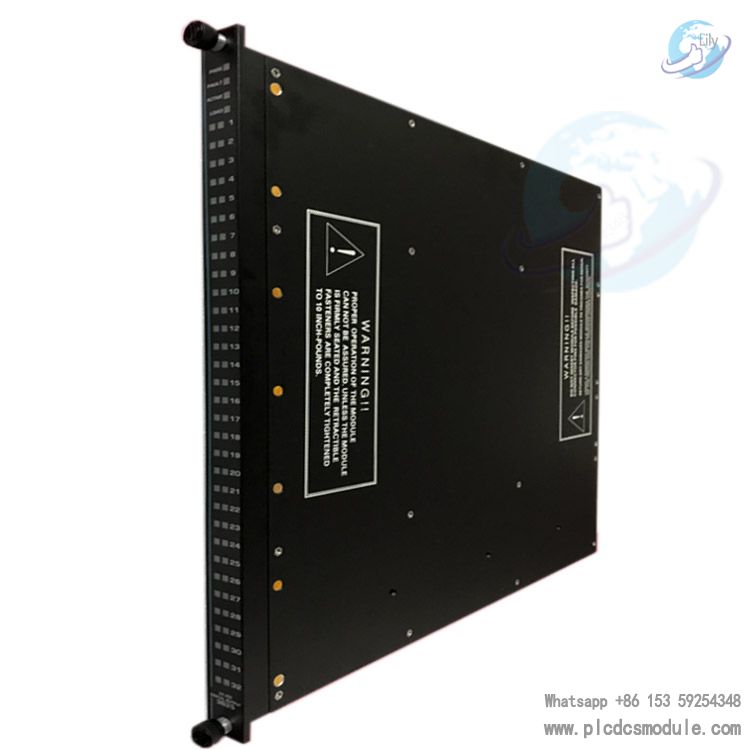

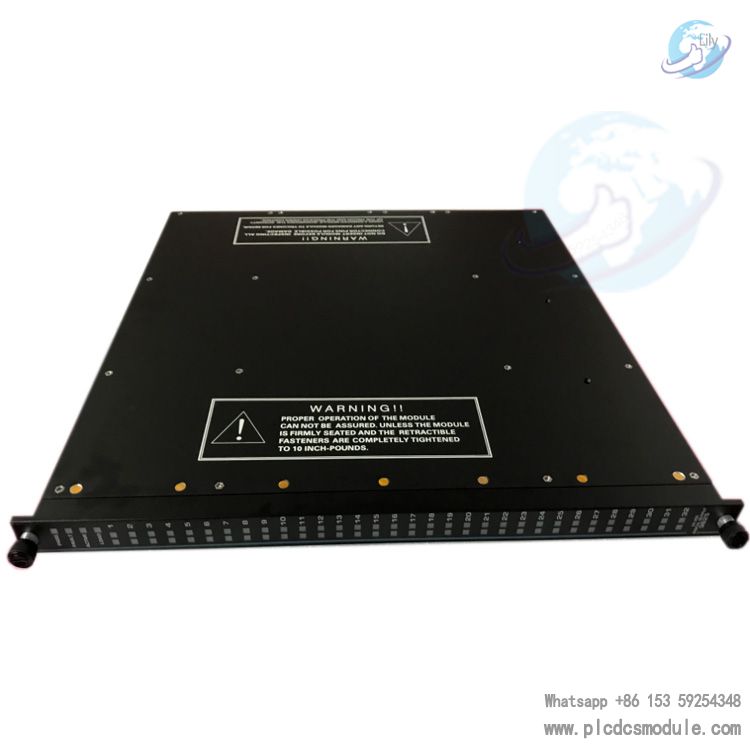

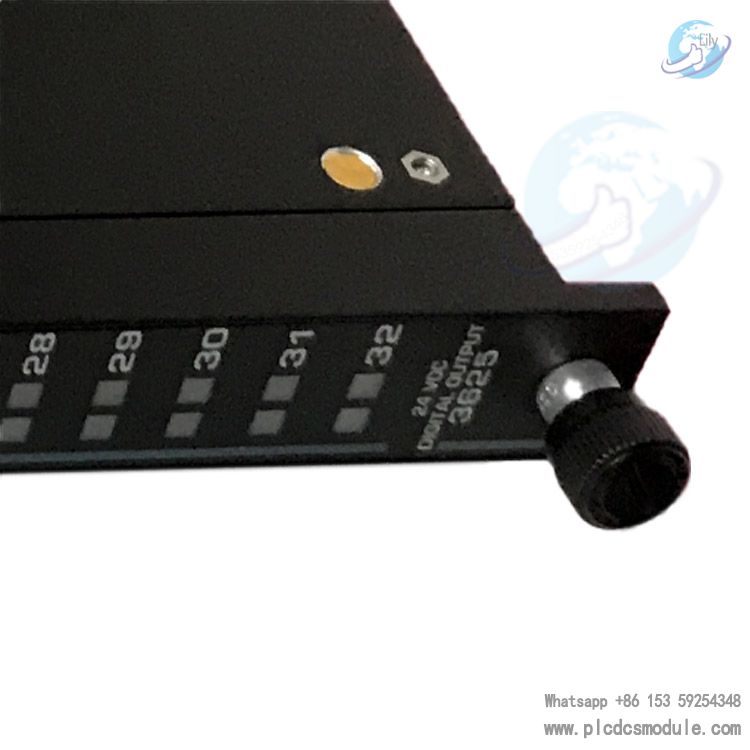

The TRICONEX 3625 (also known as the TRICON DO3625) is a TMR (Triple Modular Redundancy) 24 VDC digital output module for use in Tricon's safety and control systems.The Triconex is a brand name of Emerson (formerly Invensys) and is widely known for its highly reliable Safety Instrumented Systems (SIS).The DO3625 module is part of Tricon's Tricon Safety System. is an integral part of Tricon's Tricon Safety System for controlling safety-critical outputs in processes that require high reliability and fault tolerance.The TRICONEX 3625 is designed for applications that demand the highest standards of safety, availability, and reliability in industries such as oil and gas, chemical, nuclear, petrochemical, and utilities.3625 and 3625Awhich are 32-point TMR Supervised or Non-Supervised Digital Output Modules with nominal ranges of 24 VDC.
Key Specifications
Model Number: 3625
Voltage: 24VDC
Type: Digital Output Module
Dimensions: 116*71*95cm
Weight: 2.97kg
Key Features of TRICONEX 3625 DO3625 TMR 24 VDC Digital Output Module
Triple Modular Redundancy (TMR)
The 3625 module is based on Triple Modular Redundancy (TMR) architecture, a well-known approach for achieving high availability and fault tolerance in safety systems. In TMR, three identical output circuits operate simultaneously and in parallel, with any discrepancies between them automatically detected and corrected by the system. This ensures that the system remains fully operational even in the event of a component failure.
24 VDC Digital Outputs
The module is designed to provide 24 VDC digital outputs, which are used to control external devices such as actuators, solenoids, or relays in industrial applications.
These outputs are ideal for controlling critical processes like emergency shutdown systems, valve actuators, and motors that must operate with precise control in real-time.
High-Integrity Safety System
The TRICONEX DO3625 module is built for high-integrity safety applications, meaning it complies with global standards such as IEC 61508, IEC 61511, and ISA 84.00. These standards ensure
For the 3625 module, field power is commoned to all points, so that if power is present on one point, it is present on all points. For the 3625A module, power is commoned in groups of 16 points and is separated by termination panels.on one point, it is present on all points. For the 3625A module, power is commoned in groups of 16 points and is separated by termination panels.
Triconex/Schneider/Tricon-related products:
Master Processor Module, Triconex 3006 Triconex 3007 Triconex 3008 Triconex 3009
Digital Output Module, Tricon 3625A
Digital Input Module, Tricon 3503E
Analog Input Module, Tricon 3721
Communication Module, Tricon 4351B
This Triconex unit Invensys Process Systems says its Tricon Tri-Mode Redundancy (TMR) safety and critical process control
The new-generation I/O subsystem for the Tricon Tri-Mode Redundancy (TMR) safety and critical process control system also features higher resolution, faster scanning speeds, innovative single-point monitoring method, and user-configurable load limits for digital output modules.
Triconex says the new I/O capabilities provide higher speed and better accuracy for high-speed critical control applications, improving the connected
improved operation of connected control components, while reducing cost per I/O point and cost of ownership.
