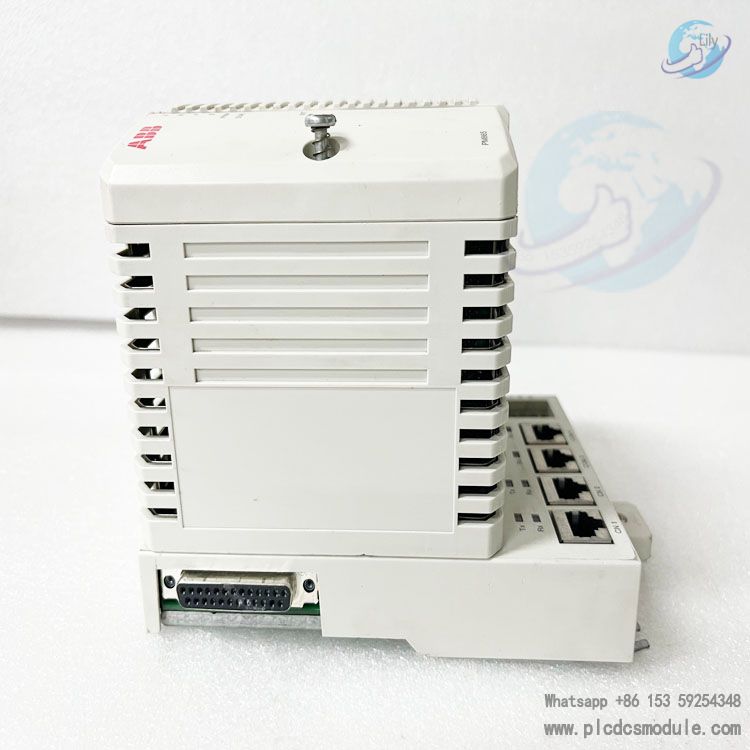

ABB  AC 800M  PM865K01 3BSE031151R1 Processor Unit module

The ABB AC 800M PM865K01 3BSE031151R1 is a processor unit module that belongs to the AC 800M series of power electronic controllers produced by ABB. The module has the characteristics of high performance, high reliability and high scalability, and is widely used in various industrial automation control systems.

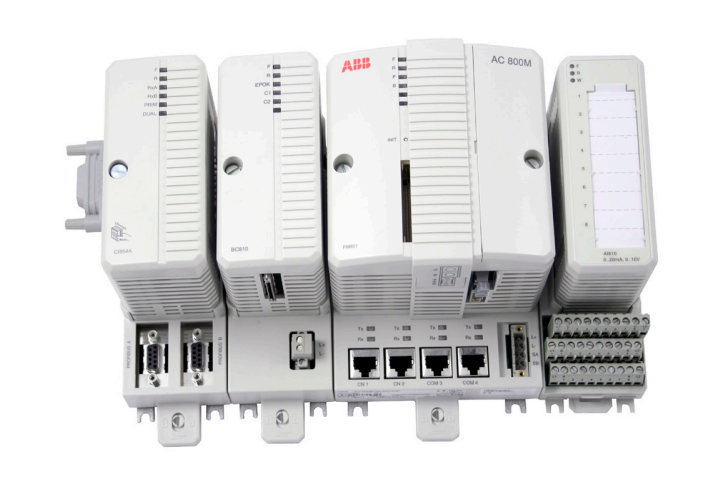

The PM865K01 3BSE031151R1 module is based on high-performance processor and advanced control algorithm, which can realize real-time monitoring, control and protection of power electronic equipment. It supports a variety of communication protocols and control methods, and can be combined and extended with other AC 800M series modules to meet the needs of different users.

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

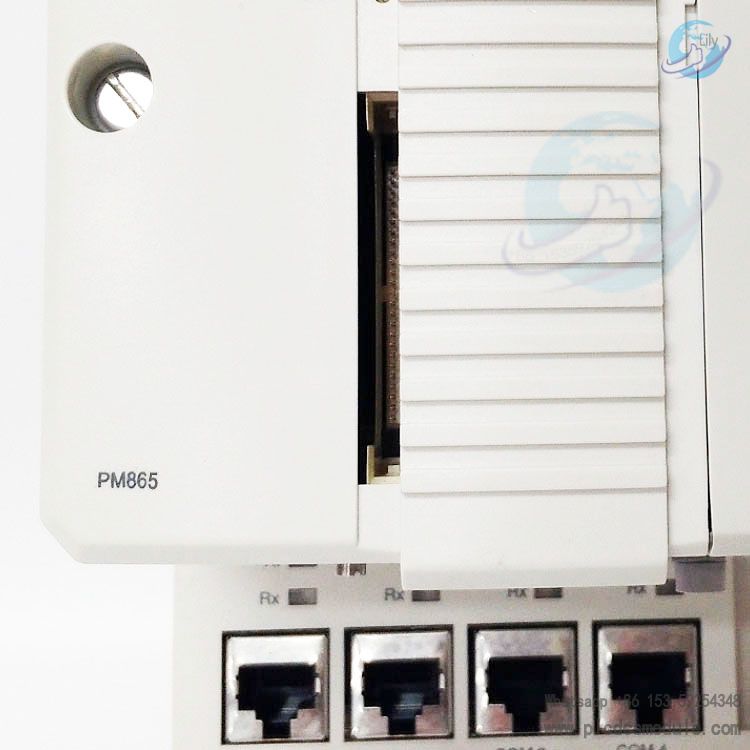

The base plate of the PM865 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The high integrity functionality is enabled by the addition of a SM81x module and the SIL certified software. This enables non-critical control schemes to be upgraded to SIL certified schemes by the addition of a plug-in SM81x module, plus selection of the appropriate software. The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business critical process control in one controller unit without sacrificing the safety integrity.

Features and benefits

AC 800M High SIL 2 certified using PM865/SM810/SM811 or PM867/SM812

AC 800M High SIL 3 certified using PM865/SM811 or PM867/SM812

Supports S800 I/O High Integrity (PM865, PM866A and PM891)

The controller can be configured with 800xA control builder

The controller has full EMC certification

TÜV Certified SIL 2 and SIL 3

Built-in redundant Ethernet Communication ports
