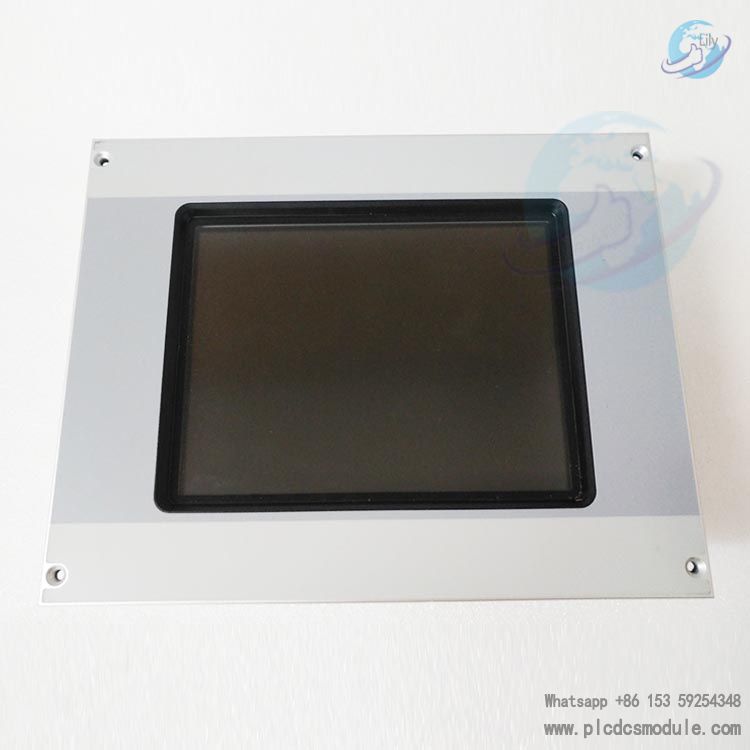

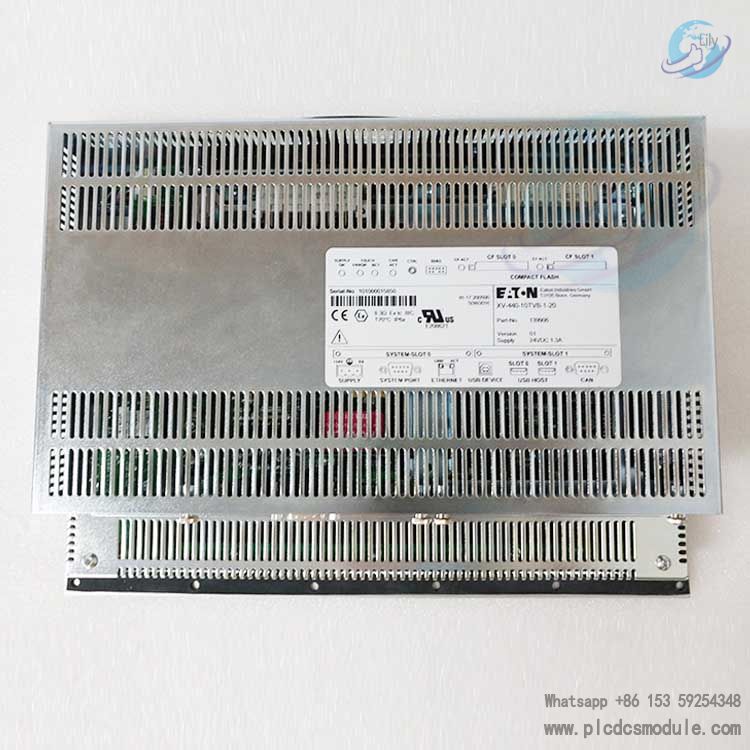

EATON XV-440-10TVB-1-20 139906 HMI touch panel.The XV-440-10TVB-1-20 Applicable to a variety of industrial scenarios, such as manufacturing, power industry, water treatment, transportation, etc., can be used to monitor and control production equipment, process flow, power system, etc., to help operators understand the real-time operating status of the system, timely operation and adjustment, improve production efficiency and quality, ensure the safe and stable operation of the system.
Product Features
Operation Interface
Convenient touch operation: adopting resistive or capacitive touch screen technology, users can easily interact and control the system through touch, intuitive and easy to operate.
Clear display: Equipped with a high-resolution colour display, it can clearly show the control interface, data and information, providing users with good visual effects and easy to view and operate.
Functional features
Support multi-touch: Support multi-touch technology, allowing multiple fingers to operate at the same time, zoom, rotate and other functions to improve operational efficiency and convenience.
Strong communication capability: Equipped with a variety of communication interfaces, such as Ethernet, RS-232, RS-485, USB, etc., it is convenient to connect with PLC, computer network and other automation equipment to achieve data transmission and control.
Integrated PLC Function: Some models may have built-in Programmable Logic Controller (PLC) function to perform complex control tasks without the need for additional controllers, reducing system complexity and cost.
Customisable interface: Allows users to design buttons, graphics and menus to meet the individual operating requirements of different applications.
Strong software support: usually equipped with special configuration and programming software, through which users can easily set parameters and create user interfaces, reducing the difficulty of use.
Performance Advantages
High reliability: High-quality components and materials are used and undergo strict quality control and testing to ensure stable and reliable operation in a variety of industrial environments.
Easy maintenance and debugging: Providing friendly human-machine interface and diagnostic function, it is convenient for users to carry out maintenance and debugging, which reduces the difficulty of use and maintenance cost.
To learn more about this product click on the file below or download the file:
Specifications:

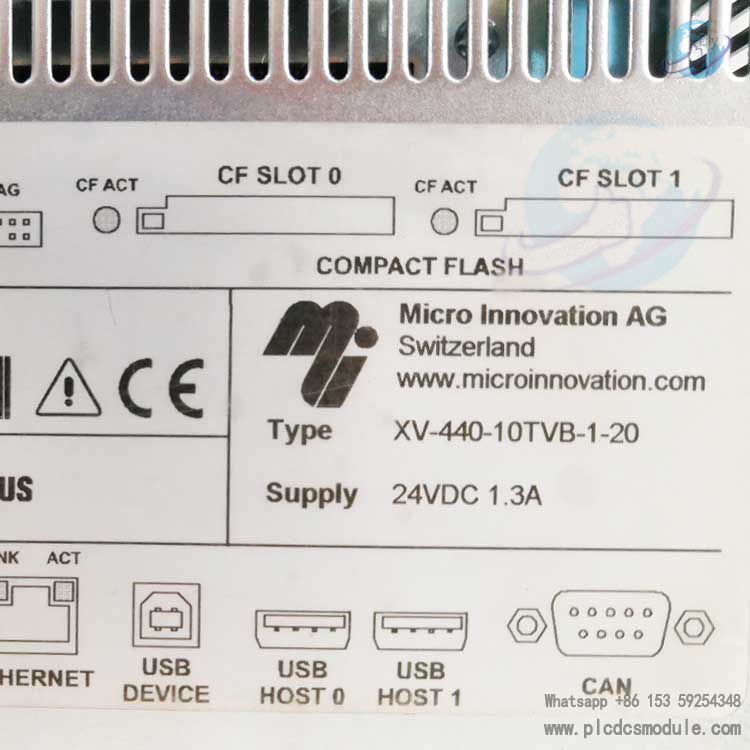

Brand/Model: EATON XV-440-10TVB-1-20 139906
Type: Industrial-grade Human-Machine Interface (HMI) touch screen
Screen Size: 10.4 inches TFT LCD (speculated, the "10TVB" in the model may indicate 10 inches)
Touch Type: Resistive or capacitive (needs to confirm the model suffix, usually "TVB" may refer to a resistive screen)
Purpose: Industrial automation control, equipment monitoring, data interaction, and process management.
Display Performance:
Resolution: May be 800×600 (SVGA) or 1024×768 (XGA)
Brightness: 250-400 cd/m² (typical industrial-grade brightness)
Contrast Ratio: 500:1 to 1000:1
Backlight Life: Approximately 50,000 hours (LED backlight)
Touch Screen Characteristics:
Type: Resistive (4-wire/5-wire) or capacitive (needs to be confirmed according to the model)
Operation Mode: Finger or stylus (resistive screen)
Durability: More than 1 million touches (resistive screen)
Hardware Configuration:
Processor: ARM Cortex-A series or similar industrial-grade processor
Memory: 256MB RAM + 512MB Flash (or higher configuration)
Storage Expansion: May support SD card or USB interface
Communication Interfaces:
Industrial Protocols: Support Modbus RTU/TCP, EtherNet/IP, Profinet, CANopen, etc. (compatibility needs to be confirmed)
Ports (Speculated):
1× Ethernet port (10/100Mbps)
2× RS-232/RS-485 serial ports
1× USB 2.0/3.0 (host/device)
