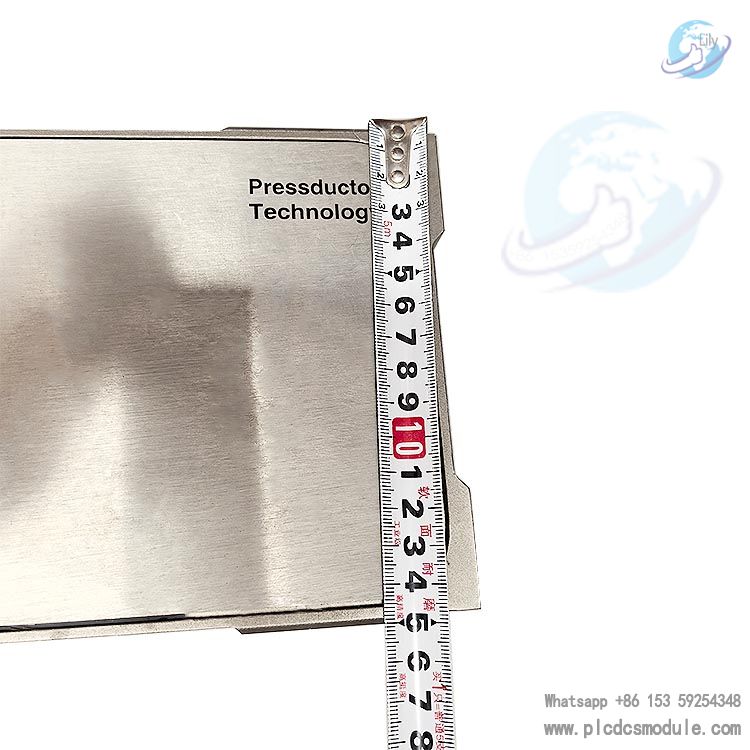

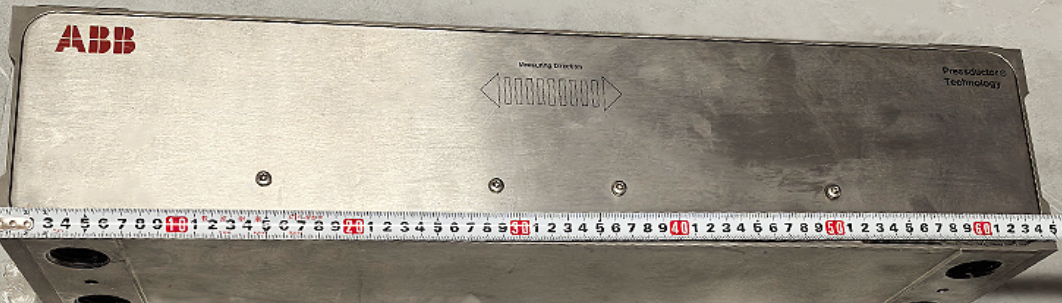

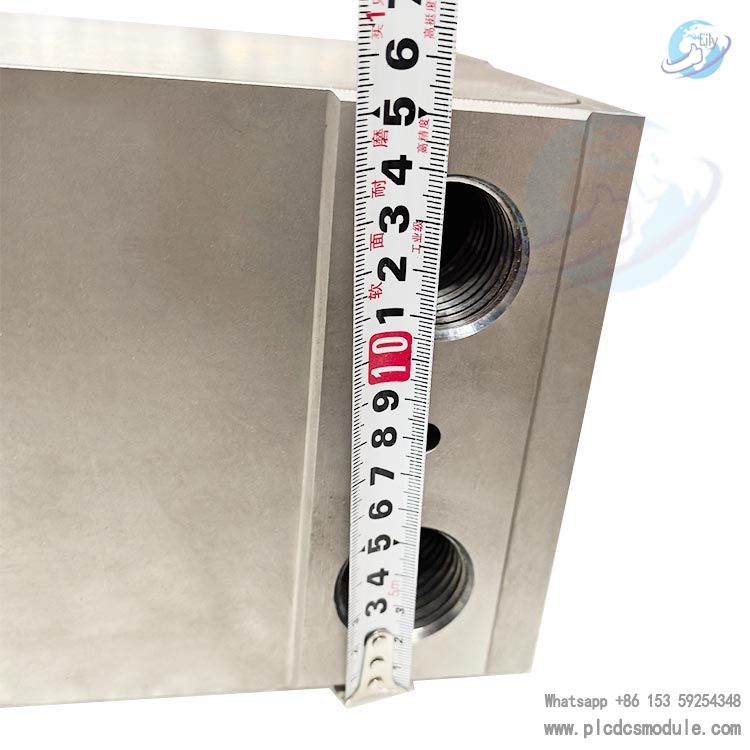

ABB PFTL201D-100KN Millmate horizontal pillow block tensiometer.The ABB PFTL201D-100KN is a horizontal pillow block tensiometer for strip tension measurement in industrial processes.
Main Specifications
Type: Horizontal bearing housing tensiometer
Connection: Cylindrical plug connection
Force range: 50-100 KN (kilonewtons)

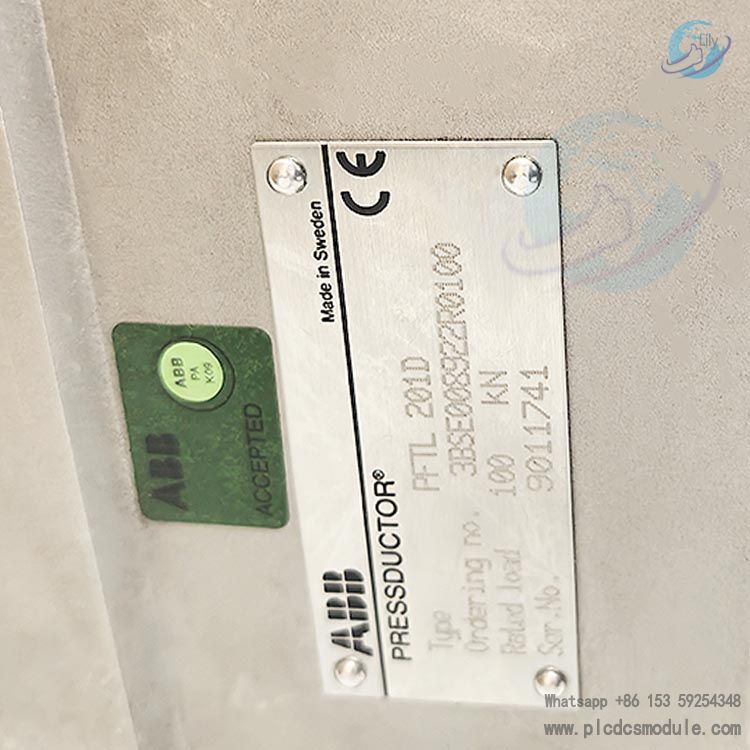

Model: PFTL201D
Additional type: PFTL201DE (fixed cable connection instead of plug connection)
FEATURES
Made of stainless steel for durability5
Sensitive only to forces in the measuring direction5
Designed for high precision tension control in applications such as paper and metallurgy4
Application Areas
The PFTL201D is typically used in industries that require high precision tension control, including:
Paper, metallurgy, and other processes requiring accurate measurement of strip tension.
Measuring Principle
It uses a piezomagnetic sensor, based on the principle that magnetic permeability changes in response to mechanical force.5 The sensor consists of a stainless steel body and coils wound at an angle to each other. When an alternating current passes through the primary coil, a magnetic field is generated. The direction of the magnetic field changes under mechanical force, generating a potential in the secondary coil that is proportional to the measuring force5.
Compatibility
The sensors can be used with a wide range of ABB control units designed for strip tension measurement systems, such as the PFEA111, PFEA112 and PFEA113 models.
