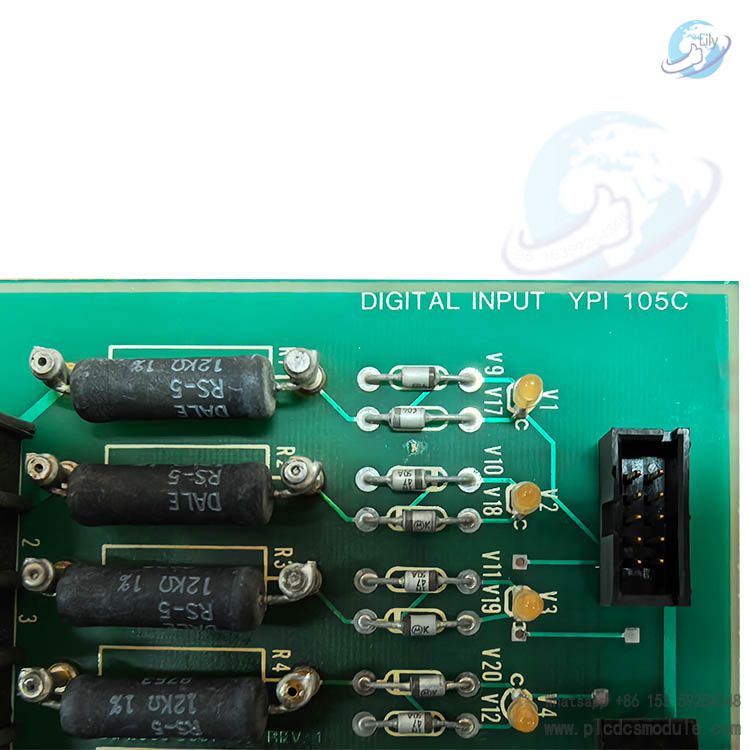

ABB YPI105C Digital Input Module Drive Board.The YPI105C Digital Input Module is a drive board used in ABB's industrial drive systems, often integrated into larger automation solutions for controlling and monitoring drives and motors. This module is typically part of the ABB ACS (Automation and Control System) or DCS (Distributed Control System) families, and it interfaces with the ABB drive controllers to facilitate digital signal processing for controlling industrial motor drives.
The YP105C Digital Input Module plays a critical role in reading digital signals from various field devices such as switches, sensors, and other digital devices. These signals are used to monitor system status, provide safety interlocks, and trigger events such as alarms or system shutdowns, making it a crucial part of the drive control loop.
Key Specifications
Module Type: Digital Input Module
Number of Inputs: 16 inputs
Input Type: Solid-state relay outputs
Nominal DC Voltage: 24 V
Operating Temperature Range: -20°C to 70°C
Functionality
The YPI105C serves as an interface between external digital signals and the drive system, allowing for:
Monitoring of various digital inputs
Expansion of control capabilities
Integration of external sensors and switches into the drive system
Performance
Response Time: ≤1 ms for both state transitions
Update Time: 5 ms
Setting Time: 1.6 ms to 5% of the final value, 3.2 ms to ±0.1% of the final value
Safety Features
Input protection by resistor-limited circuitry
Isolation between inputs: 500 Vrms DC for 1 minute
