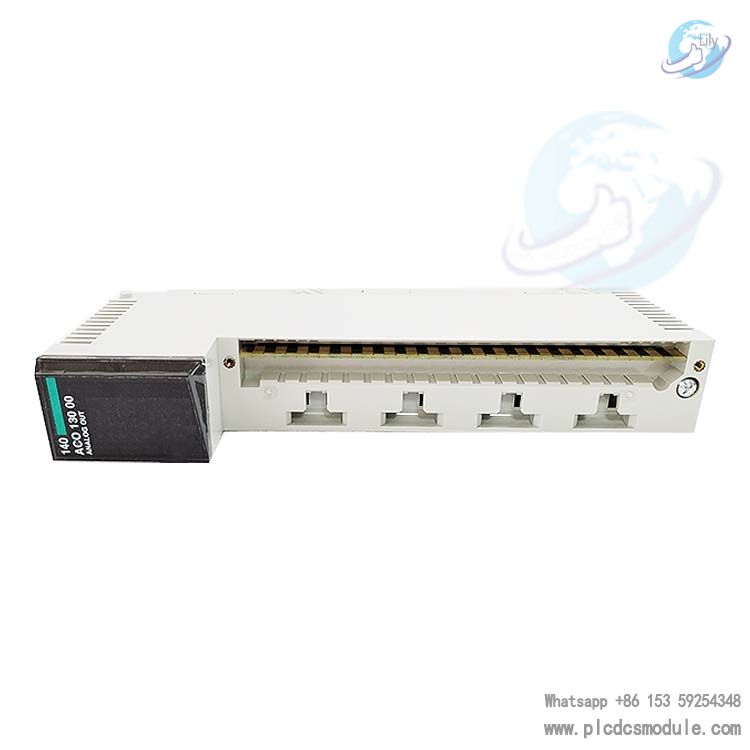

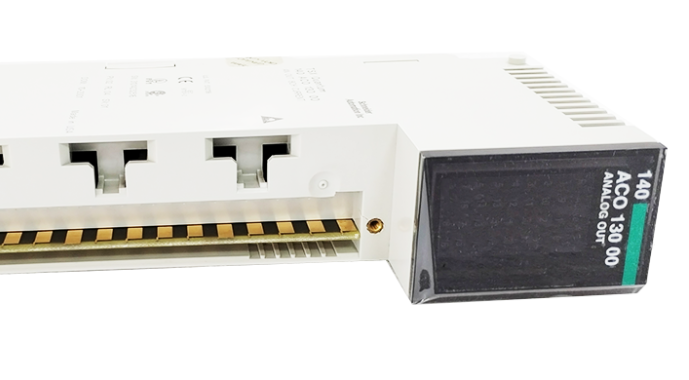

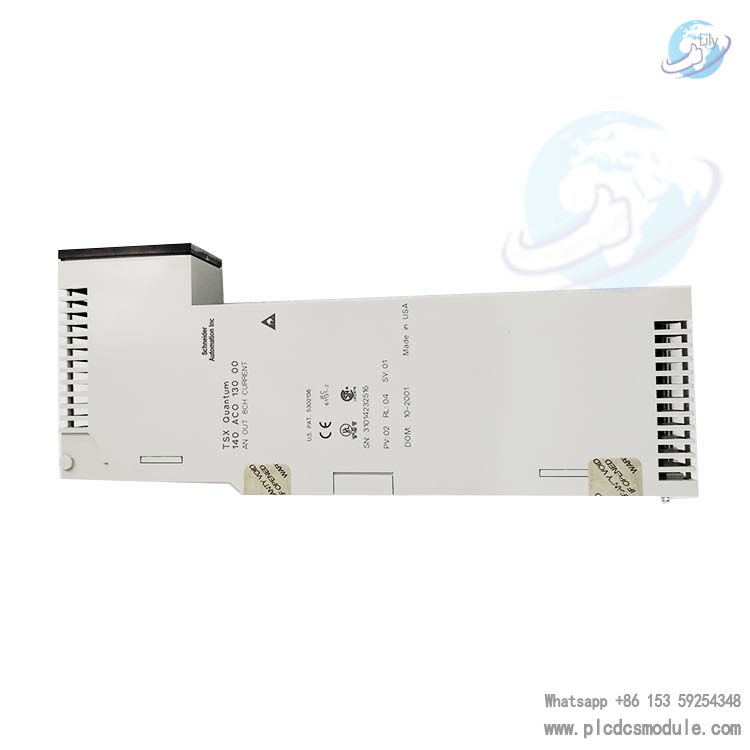

SCHNEIDER 140ACO13000 Analogue output modules Modicon Quantum.The 140ACO13000 is an analogue output module designed for use on Programmable Automation Controller (PAC) platforms. The module provides analogue output functionality that allows the PLC to control devices that require variable output signals, such as valves, motors or other devices that require proportional control.
Key Features of the 140ACO13000:
Output Type: This module typically provides voltage or current output (depending on configuration) to control analog devices. Common output ranges include:
0–10 V DC
4–20 mA (current loop)
Number of Channels: The 140ACO13000 is a 4-channel analog output module, meaning it can provide up to 4 separate analog output signals simultaneously.
Resolution: The module typically offers 12-bit resolution for each output, which means each output can be set to 4,096 distinct levels (from 0 to 4095). This allows for precise control of the connected analog devices.
Output Range: The module supports various output ranges depending on the application, and each channel can typically be configured for different output types (voltage or current), and the ranges can usually be customized during configuration.
Power Supply: The 140ACO13000 module typically operates with a 24 V DC power supply, which is standard for most Modicon Quantum modules.
Signal Types: Depending on the type of device you're controlling, the module can output either:
Voltage Output: Typically 0-10 V, adjustable depending on your requirements.
Current Output: Typically 4-20 mA, commonly used in industrial process control for transmitting signals over long distances.
Communication: The module communicates with the PLC’s processor over the Modicon Quantum backplane, which ensures fast and reliable data transfer.
To learn more about this product click on the file below or download the file:
Applications:
Process Control: Used in applications such as controlling variable speed drives, actuators, or other equipment that requires an analog control signal.
Flow Control: Common in industries like oil & gas, water treatment, and manufacturing where analog signals are needed to control flow meters, pumps, or valves.
Temperature Control: For devices like temperature controllers that require analog inputs for precise regulation.
Motion Control: Used to control devices in automated systems like conveyor belts or robotics that require proportional analog signals for precise movement.
