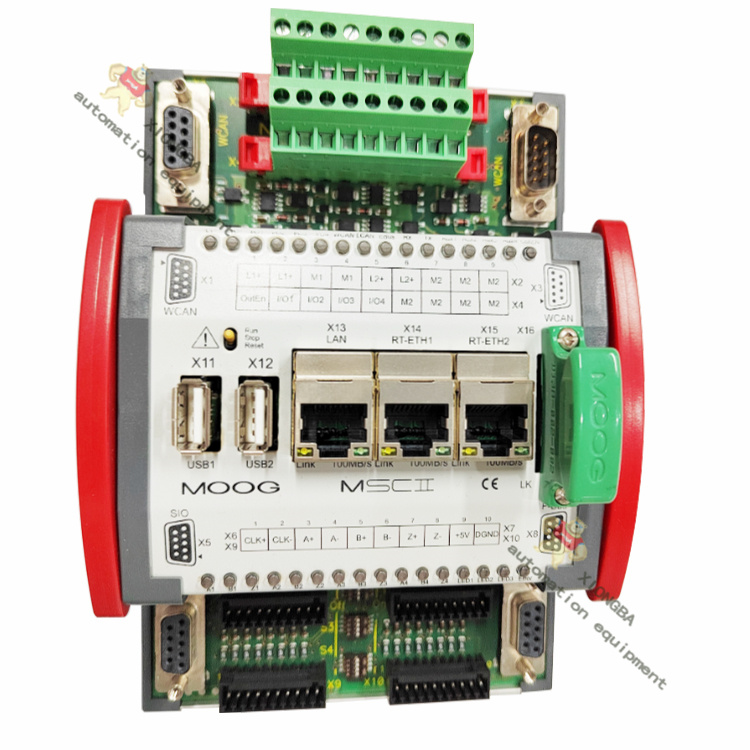

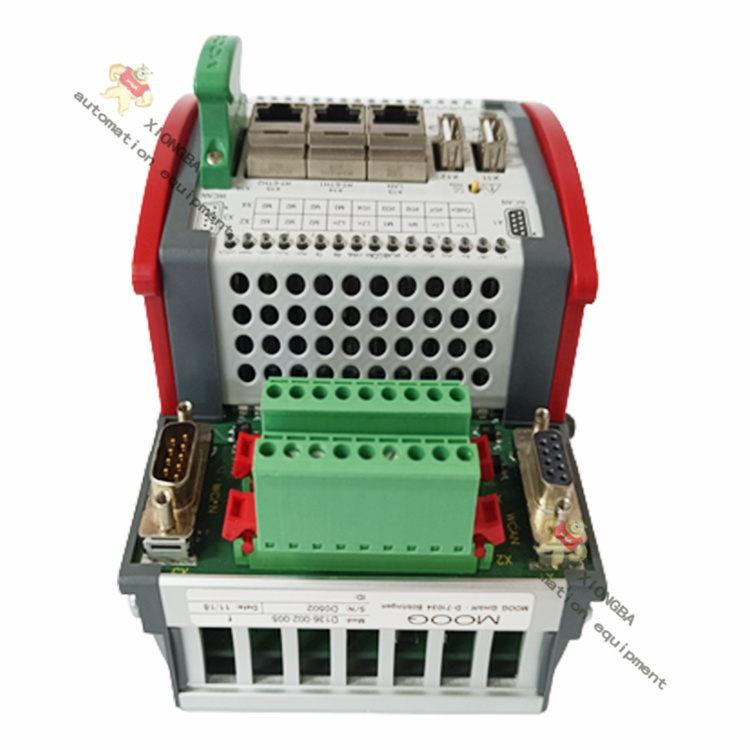

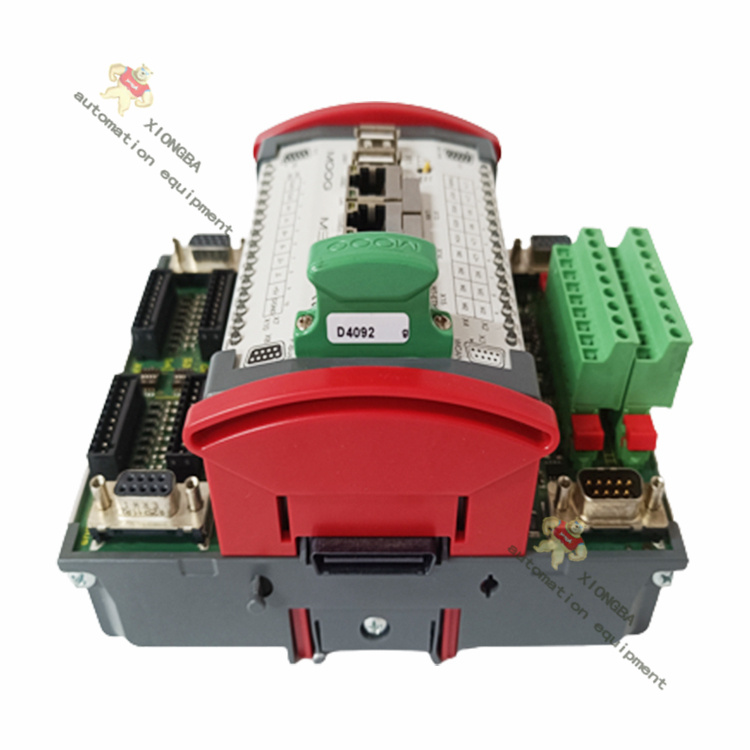

Moog D136-002-005 Servo Controller (MSC II)
The M3000 starter kit includes everything needed to get started:
MSC with digital open emitter outputs, 2 MB RAM
· Power supply 24 V 10 A
· License key, green
·QDIO 16/16-0,5
· MAcS development environment
·Software maintenance contract
· Crossed TIA/ElA 232 interface cable, 5 m (5.47 yd)
· Crossed Ethernet interface cable, 10 m (10.94 yd)
· CAN bus interface cable, 3 m(3.28 yd)
·11 Plug-in terminal strips with screw terminals, 18 pole
·Plug-in terminal strip with screw terminals, 9 pole
Theincluded DIN rail modules MSC and QDIO are mounted (together with
the power supply) on a single mounting plate.
Asuitable power cord is the only additional item required to facilitate connec
tion to the power source.
Related products：

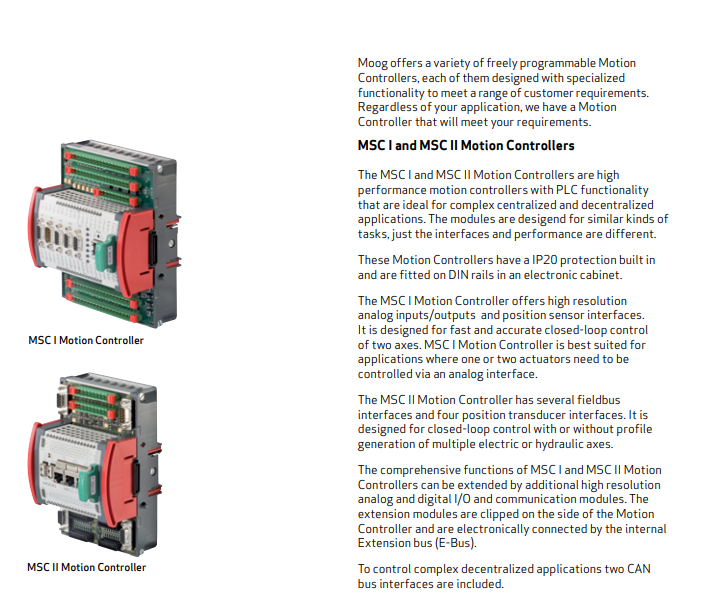

D136-002-002 MSC II Motion Controller standard
D136-002-003 MSC II Motion Controller with EtherCAT master
D136-002-005 MSC II Motion Controller with Profibus Slave & EtherCAT master
Moog Motion Controller MSC-R family
D136-003-001 MSC-R Motion Controller with 2nd CAN & Profibus slave
D136-006-001 MSC-R-IO
MSD Motion Controller family
G391-001-001 MSD Motion Controller standard
G391-001-002 MSD Motion Controller Profibus
3005319639
