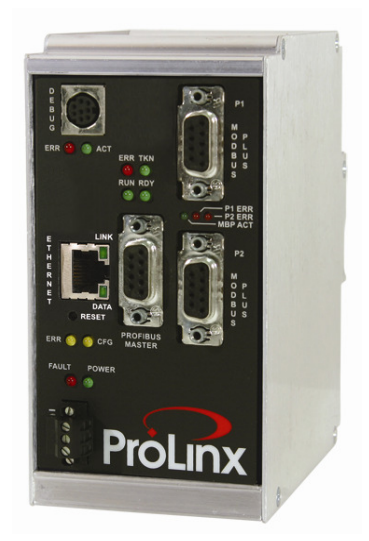

PROSOFT 5304-MBP-PDPMV1 5000 Series Communication control module.The ProLinx Modbus Plus to PROFIBUS DPV1 master gateway establishes a strong connection between devices on the Modbus Plus network and PROFIBUS slave devices.
This standalone din rail mounting protocol gateway offers a Modbus Plus configurable DB9F port and a PROFIBUS DPV1 Master configurable DB9F port.
The Modbus Plus protocol supports Master and Slave protocols on the DB9 female Modbus Plus port. The Modbus Plus port is fully configurable.
The PROFIBUS DPV1 master protocol supports the full master specification according to IEC 61158 on single or multi-master networks. This module supports the DPV1 specification.
PROSOFT 5304-MBP-PDPMV1 Communication control module General Specifications:
PROSOFT 5304-MBP-PDPMV1 Communication control module.pdf
Communication Baud Rate: 110 to 115K baud
parameters Stop Bits: 1 or 2
Data Size: 7 or 8 bits
Parity: None, Even, Odd
RTS Timing delays: 0 to 65535 milliseconds
Modbus Modes RTU mode (binary) with CRC-16
ASCII mode with LRC error checking
Floating Point Floating point data movement supported, including configurable

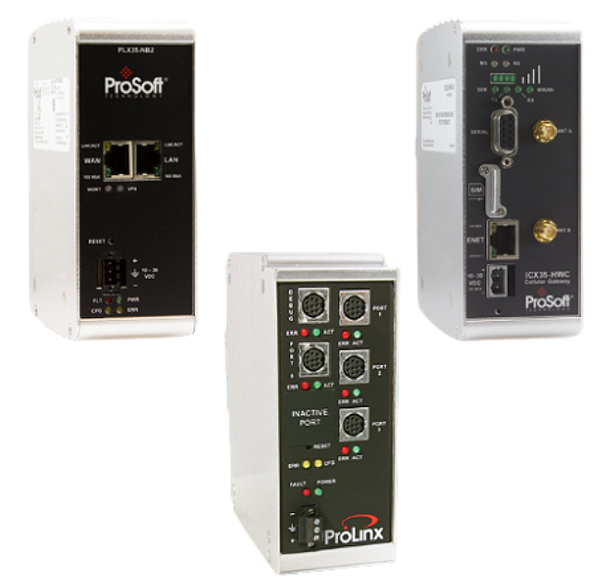

PROSOFT related products:
